The battery in the JBL Clip 2 is rechargeable. If the battery does not work, you will notice that the device does not stay on as long as it used to or wont turn on at all. If this is the case the battery will have to be replaced. The device will be taken apart and the battery will be removed and replaced.
-
-

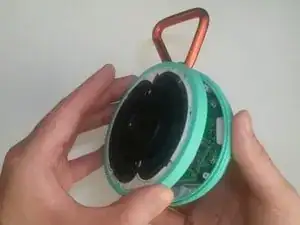

Begin by removing the front cap of the JBL Clip 2 by using the blue plastic opening tool to get in between the creases.
-
-
-

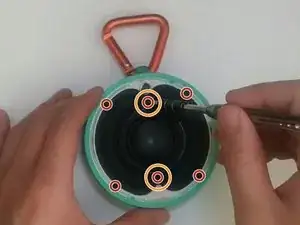

There will be six 3 mm T8 screws under the cap, remove these six screws.
-
If you are not trying to replace the speaker please ignore the two middle 3 mm T8 screws during this procedure.
-
-
-
To completely remove the top portion, disconnect the speaker from the motherboard using the blue plastic opening tool.
-
-
-

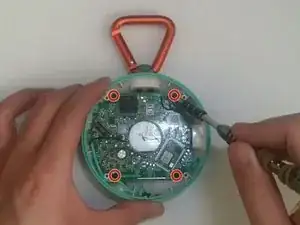

There will be four 3 mm T8 screws holding the motherboard in place, remove these four screws.
-
-
-

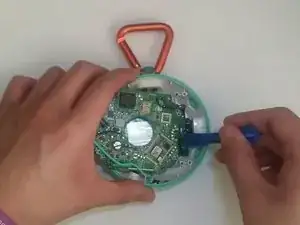

Slightly move the motherboard to the side to reveal sides of battery, carefully using the blue plastic opening tool to remove the battery from the speaker casing.
-
-
-
Carefully looking at the motherboard there are three solder points labeled battery, that need to be desoldered.
-
If you need help with desoldering refer to How to Solder and Desolder Connections help. After these are removed the battery should be free.
-
To reassemble your device, follow these instructions in reverse order.
