The motherboard of the the JBL Clip 2 is the central unit that allows the unit to have all of it's different functions. The device will be taken apart and the motherboard will be removed and replaced.
-
-

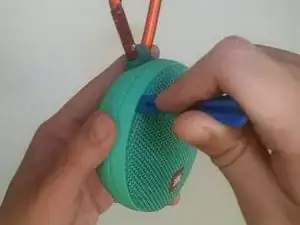

Begin by removing the front cap of the JBL Clip 2 by using the blue plastic opening tool to get in between the creases.
-
-
-

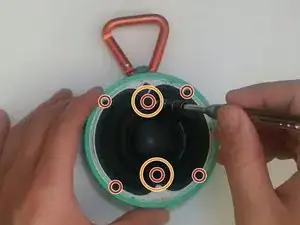

There will be six 3 mm T8 screws under the cap, remove these six screws.
-
If you are not trying to replace the speaker please ignore the two middle 3 mm T8 screws during this procedure.
-
-
-

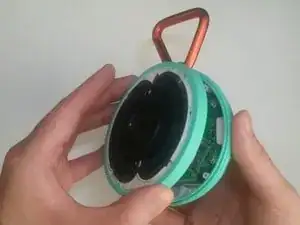

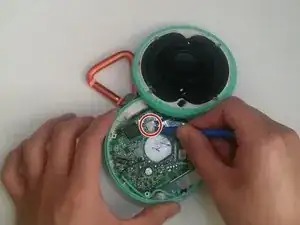

To completely remove the top portion, disconnect the speaker from the motherboard using the blue plastic opening tool.
-
-
-

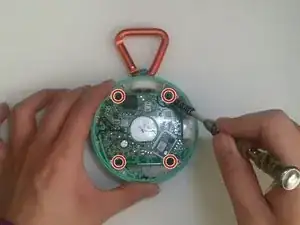

There will be four 3 mm T8 screws holding the motherboard in place, remove these four screws.
-
-
-

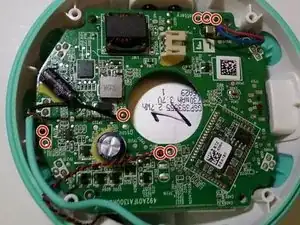

The motherboard is now exposed, and to extract it you must now desoder the eight connection points to the battery, audio AUX cord, and the Mic.
-
If you need help with desoldering refer to How to Solder and Desolder Connections help. After these are removed the battery should be free.
-
To reassemble your device, follow these instructions in reverse order.
