Jabra Freeway Motion Detector Replacement

Geschrieben von: Alec Wilson
  • Kommentare: 1
Jabra Freeway Motion Detector Replacement

Schwierigkeitsgrad

Very difficult

Schritte

5

Zeitaufwand

10 - 50 Minuten

Einleitung

The Jabra Freeway's auto-on and auto-off features are controlled by the motion detector. In this guide, we will be replacing this detector.

  1. JZ1kbyq36KgRa2Dh
    JZ1kbyq36KgRa2Dh
    Fw4XHZrBNLiqpVB2
    IfTnmBFpWbdrQbj5

    • Turn off the device before proceeding. Failure to do so may result in device damage or injury to oneself.

    • Remove the rubber pads from the bottom of the device using the spudger.

  2. KPnPeNlQqtn5a5it
    KPnPeNlQqtn5a5it
    FHYOm41ybChElndJ
    oGQvYjxCONXuQGxW

    • Remove the eight 6mm T9 screws.

    • Two of these screws are underneath the foam padding. This padding is glued on and will be destroyed in this process. Poking through the foam minimizes the damage to the device.

  3. Yiaa6D3oSIEsx1mq
    Yiaa6D3oSIEsx1mq
    eO1aE2MeKRBTJeUP
    qNa4IjVlNnxU2v4h

    • Gently lift the front panel off of the device and carefully rest it to the side.

  4. 4IRJA2EIMppYyJkd
    4IRJA2EIMppYyJkd
    HMXEOfi62dRcFneV
    6UUIJMDniJOXUMTx

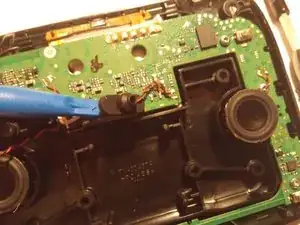

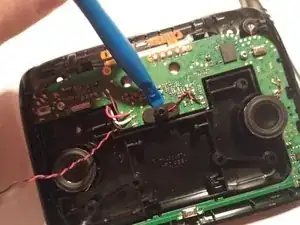

    • Use the plastic opening tool to lift the motion detector off the circuit board.

    • The motion detector is glued in place, so a moderate amount of force is required.

  5. aB2DMGN2KVKxYnBQ

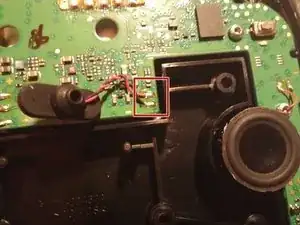

    • Desolder the two wires connecting the motion detector to the circuit board.

    • Please refer to the soldering technique guide for instructions on desoldering and soldering.

Abschluss

To reassemble your device, follow these instructions in reverse order.
