Jazz Ultratab C954 Speaker Replacement

On the top of the tablet there are two 1cm screws that hold the back cover on. Locate these screws and remove them using a Phillips head #0 screw driver.

You now have to pry the back cover from the touch screen panel. To do this insert a plastic spudger into the seem. Then work your way around the panel until it is free.

This is what your tablet should look like once the back cover is removed. You are now ready to begin repairing your tablet. Follow the corresponding guide for instructions on repairing major components.

To reattach the back cover begin by sliding the cover on making sure the buttons and the speaker are in their designated holes on the back cover. Then attach the two covers by pressing them together until you hear the plastic tabs interlock.

With the two screens held together the last step is to put the two 1cm screws on the top of the tablet back in. Your tablet is now ready for use again!

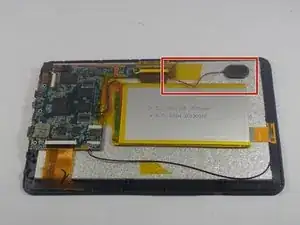

With the back cover removed from your tablet locate the speaker and the speaker wires shown in the red box.

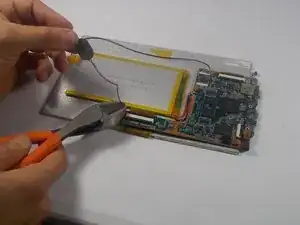

Since the speaker is magnetically held to the screen of the tablet cutting the old wires will remove the old speaker.

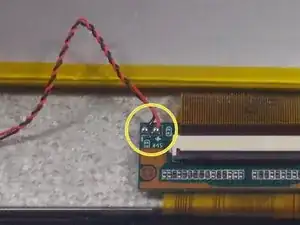

Locate the positive and negative terminals of the speaker.

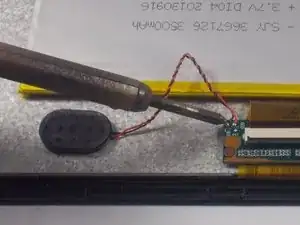

To attach the new speaker you must solder the new wires to the terminals on the motherboard. To do this hold the wire on the old solder, using a small amount of solder melt the solder and wires to the old connection points.

For an explanation on soldering refer to iFixit's soldering guide Wie man Lötverbindungen herstellt und entlötet

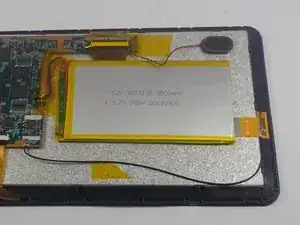

Your new speaker is now fully attached to the tablet ans should be operational. You can now reassemble the tablet. To do so refer to the back cover guide (step 3).
