Justin Bieber Concert Microphone On/Off Switch Replacement

Geschrieben von: Mike Seyman
  • Kommentare: 0
Justin Bieber Concert Microphone On/Off Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

The On/Off Switch for the Justin Bieber Concert Microphone allows the user to turn the device on and off. This is important to save battery and allow proper use of the device.

  1. IXDMYLBTEpwZga6K
    IXDMYLBTEpwZga6K
    fNLqsfDu2EVJfxHN

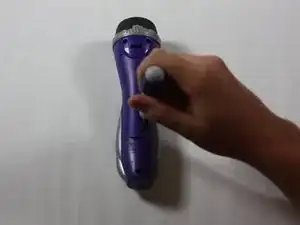

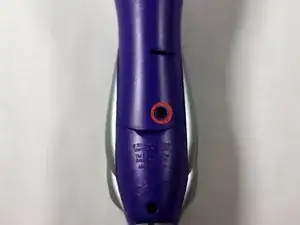

    • Remove the back panel of the device by unscrewing the single #8 11.6 mm Flathead screw on the back of the device.

  2. CbFc2MgncpOZjQbv

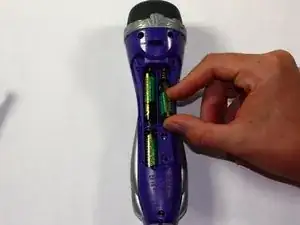

    • Remove the 3 AAA batteries from the device.

  3. v1JyBVTbbPlTxPFu
    v1JyBVTbbPlTxPFu
    vYUoPWj1GExGbtjb

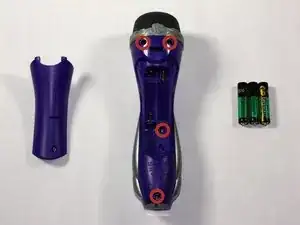

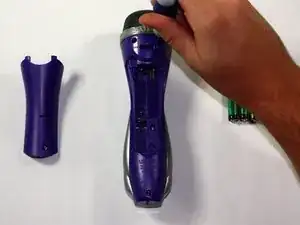

    • Unscrew the other 4, #8 11.6 mm Phillips Head screws to remove the entire back half of the device.

    • Pull apart the device once screws are loose, splitting the device in half.

  4. t6FDg3rPaBJ3COlG

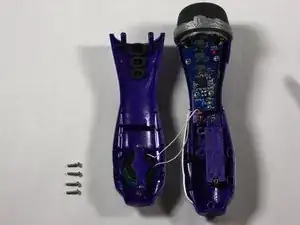

    • Keeping all wires connected to their attachments, place the front half of the device face down.

  5. FDoC3rDhM1Rg2YJe
    FDoC3rDhM1Rg2YJe
    PQkofMJCsWsOCAVN

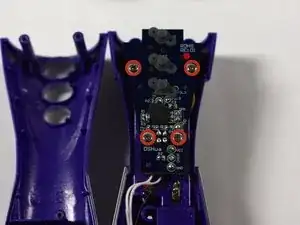

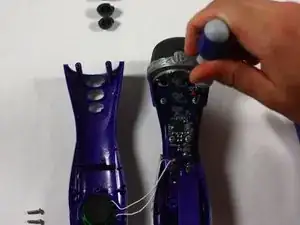

    • Remove the 2, #8 11.7 mm Phillips Head screws as well as the 2, #8 7.5 mm screws on the printed circuit board.

  6. MGmXTLBlgLa6uN2a
    MGmXTLBlgLa6uN2a
    rURyYYgRApBxyR2n

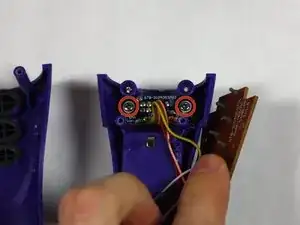

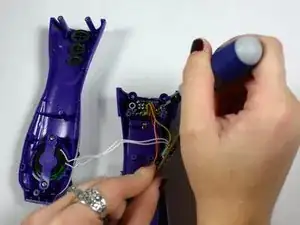

    • Remove the 2, #8 11.7 mm Phillips Head screws on the On/Off Switch Board

  7. hTGVfNHYC5jGwm4L
    hTGVfNHYC5jGwm4L
    BNMwGgpMAiLoiRkd

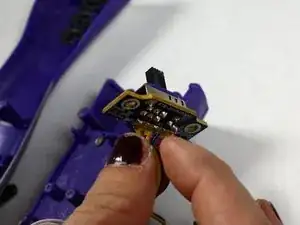

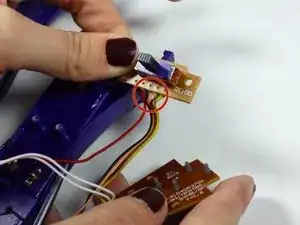

    • Remove On/Off Switch Board from its holding and detach the wires.

    • Replace the On/Off Switch Board with a new one and reattach the wires using this soldering guide

Abschluss

To reassemble your device, follow these instructions in reverse order.
