Kenwood Chef Motorelektronik reparieren

Geschrieben von: VauWeh
  • Kommentare: 52
Kenwood Chef Motorelektronik reparieren

Schwierigkeitsgrad

Mittel

Schritte

13

Zeitaufwand

Keine Schätzung

Einleitung

Es kommt vor, dass bei den Kenwood A901 Modellen ein Kondensator in der Motorelektronik kaputt geht. Es entsteht dabei starker Rauch und Gestank. Hier wird gezeigt, wie du Teile in der Motorelektronik einer A901D austauschen kannst. Du musst dazu einige Lötstellen entlöten und Bauteile neu verlöten. Wenn du das noch nie gemacht hast, kann dir iFixits Anleitung helfen.

  1. Ea1tFTbRFxMNX4BQ

    • Diese alte A901D lief unter heftiger Rauchentwicklung. In der Motorelektronik ist ein Kondensator abgeraucht. Er wurde ausgetauscht, zusammen mit weiteren Elektronikbauteilen. Es handelte sich um einen Triac BTA08-600CW, einen Blockkondensator 150 nF, einen Blockkondensator 470nF und einen Widerstand 150 kOhm, alles Artikel für wenige Cent.

    • Entnimm alle Anbauteile wie Schüssel und Rührbesen.

    • Ziehe den Netzstecker!

  2. 3EGVJvr4XDSAexmU
    3EGVJvr4XDSAexmU
    HTJfbJxrHaxjY5S1

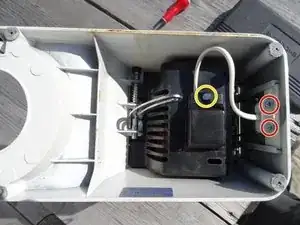

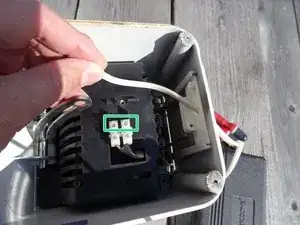

    • Drehe die Maschine um, so dass der offene Boden nach oben zeigt.

    • Entferne die beiden Schrauben an der Zugentlastung. Entnimm die weiße Klemmbrücke an der Zugentlastung.

    • Entferne die einzelne Schraube an der Netzanschlussdose und hebe den Deckel ab.

    • Löse die beiden Schrauben an der Anschlussklemme. Hole das Netzkabel heraus und lege es zur Seite.

  3. MRRKF2ZvehExWbTW

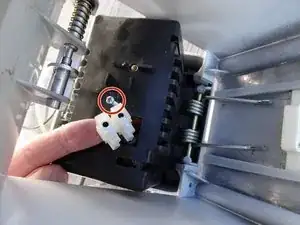

    • Drehe die Schraube heraus, mit der die Anschlussklemme am Motordeckel festgeschraubt ist.

    • Lasse die Anschlussklemme durch das rechteckige Loch in den Motordeckel hineinfallen.

  4. 4IC4YeGFQihLXO4v
    4IC4YeGFQihLXO4v
    GyXeRYKFVkhOWlfx
    vmsO2SsJK4F5BO1U

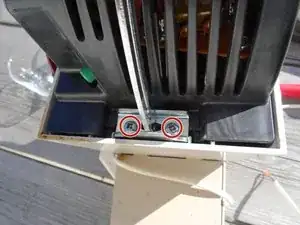

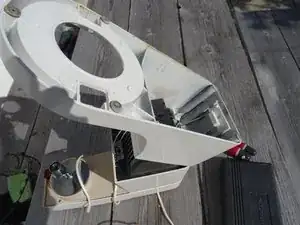

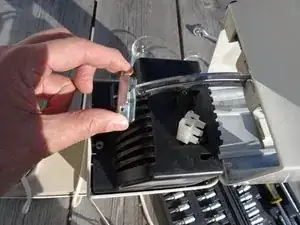

    • Klappe den Standfuß auf.

    • Drehe die beiden Schrauben heraus, mit denen die Halteplatte des Feststellers am Standfuß befestigt ist.

    • Entferne die Halteplatte.

  5. tjWWkWHHWROisEyl

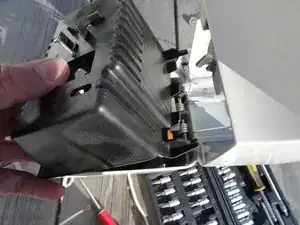

    • Hebe den Motordeckel heraus. Er ist unter der Achse des Standfußes eingehängt.

  6. DAKC3ILUA2oAm4T5
    DAKC3ILUA2oAm4T5
    HBRWweFBZSsvDIFC
    UJAXb2w4s6muKHFQ

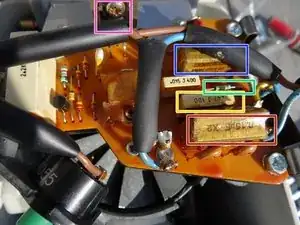

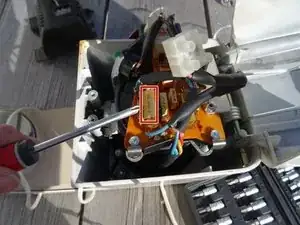

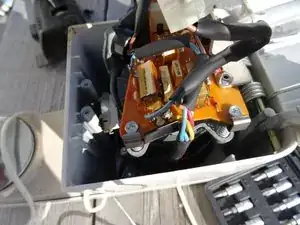

    • Die Motorelektronik liegt offen da. Bei anderen A901 Modellen kann sie etwas anders aussehen. Du erkennst aber häufig den defekten Kondensator. Tausche ihn und weitere Kondensatoren und Widerstände aus. Der Triac leidet dabei ebenfalls leicht. Tausche ihn gleich aus. Die Bauteile sind sehr preiswert.

    • Abgeraucht ist der 150 nF Blockkondensator. Er und der danebenliegende 470nF Kondensator, der 100 nF Kondensator, der 150 kOhm Widerstand und der Triac BTA08-600CW wurden getauscht.

    • Wenn du nicht alle Teile hast, solltest du auf jeden Fall die beiden Ölpapier-Kondensatoren 100 nF und 150 nF ersetzen. Verwende am besten MKP-Kondensatoren, X2 - Klasse, mindestens 275 V. Der Abstand der Elektroden (Rastermaß, RM) sollte passen, Anschlüsse eventuell leicht nachbiegen. (z.B. wenn das RM 22 mm statt 20 beträgt).

    • 150 nF, (RM 20 mm)

    • 470 nF (RM 15 mm)

    • 100 nF (RM 20 mm)

    • 150 kOhm

    • Triac BTA08-600CW

    The replacement capacitors must be X2 rated for safety. I would suggest polypropylene for longer life (PP), the originals are oiled paper.

    Tim -

    Bonjour, ou passez commande pour avoir les mêmes dimensions que ceux d'origines ? merci

    150 nF, (RM 20 mm)

    470 nF (RM 15 mm)

    100 nF (RM 20 mm)

    150 kOhm

    Triac BTA08-600CW

    Damiano -

  7. n5jIPlp4FFOnq1RG

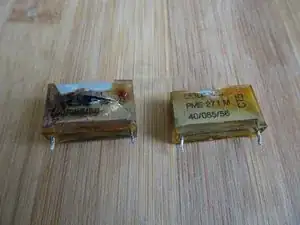

    • Hier ein Bild der beiden Ölpapierkondensatoren. Sie gehen leichter kaputt, das Gehäuse platzt auf. Ersetze sie durch modernere MKP-Typen.

  8. XcHCHX3qMBdNOYnH

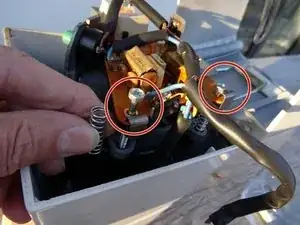

    • Drehe die beiden Einstellschrauben für die Geschwindigkeit heraus. Entnimm die Feder und die Schraubenklemme.

    • Die Geschwindigkeitsregelung ist raffiniert: Am Ende der Motorachse ist ein Magnet. Dieser erregt eine Spule auf der Leiterplatte verschieden stark, je nachdem, wie groß der Abstand ist. Der Abstand kann mit diesen Einstellschrauben justiert und dem großen Regelknopf verstellt werden. Diese Regelung hält auch unter Last die Drehzahl konstant.

  9. WLxrWYM3FPWNMXNF

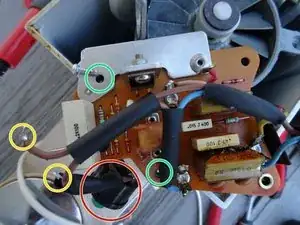

    • Löse die Thermosicherung aus ihrer Halterung.

    • Entlöte die Kabel am Ein/Ausschalter.

    • Ziehe die Leiterplatine vorsichtig heraus.

    • Drehe die beiden Schrauben heraus, mit denen die Platine auf ihrem Träger befestigt ist.

  10. KbRZLoO45ApFAxgc
    KbRZLoO45ApFAxgc
    v2WEdHsSMaUwiv5a

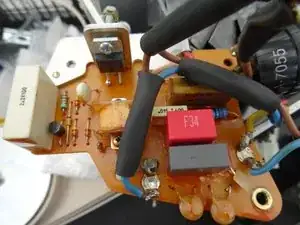

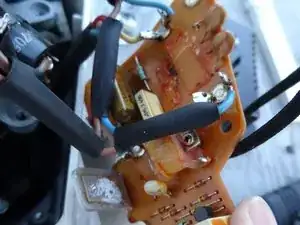

    • In Bild 1 sind drei der vier Bauteile ausgelötet. Der Triac ist verschraubt, beachte auch die Wärmeleitpaste. Bringe später am Neuteil wieder Wärmeleitpaste an.

    • In Bild 2 sind die Austauschteile alle eingelötet. Die Kondensatoren haben einen etwas anderen Formfaktor.

    Hello. I have replaced all the components as per your awesome step by step guide but when switched on, the motor is erratic and I see there is a spark from the black component under the red cable. The black component is not visible on the pics. I would really love to identify that component please. Thank you again.

    Ashik Moorley -

    Sorry, I am not sure which part that could be. Hmm. Can you post a picture?

    VauWeh -

    Hi, I do have a picture but it does not allow me to post. Its a A901D model. The component can not be seen on any of the pics and its not the triac. Its next to the last block capacitor (the one, you didnt replace or name), its a small thin, black cylinder. I am sorry about the bad description. If you can give me your email, I can forward you the picture. I really appreciate the assistance.

    Ashik Moorley -

    OK, I hope I can identify that part, but currently don't have an A901D. My email is za311(replace by at sign)lehrer.uni-karlruhe.de

    VauWeh -

    Could it be a 901 as seen here? In this case there is no PCB and the components are soldered “flying". The component under the red cable (in a 901) is the triac.

    VauWeh -

    Thank you so much. I have sent an email.

    Ashik Moorley -

    it did not go through - my is ashik.moorley(at sign here)gmail.com

    Ashik Moorley -

  11. DkPSNCNCGPtdoCQt

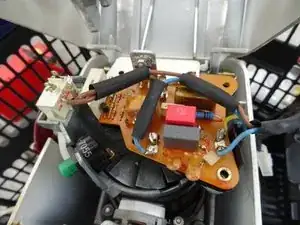

    • Die Thermosicherung ist eingesetzt, der Ein/Ausschalter muss noch verlötet werden.

  12. dEBpnPYyZiumQHDM
    dEBpnPYyZiumQHDM
    xZMBSuA4pchBXLXg

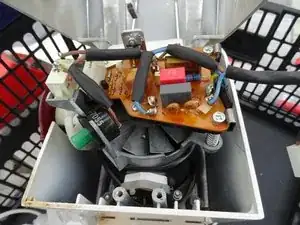

    • Alles fertig zum Schließen. Der Ein/Ausschalter ist verlötet, die Regulierschrauben eingedreht. Die Platine ist mit beiden Schrauben am Träger befestigt.

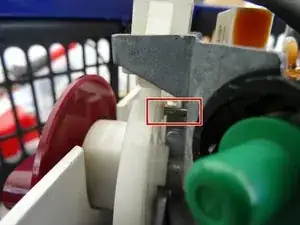

    • Achte darauf, dass der Stift am Träger der Platine in die Führung am Drehknopf eingreift (rote Markierung). Wenn du den Drehknopf verstellst, muss sich die Platine ein wenig auf und ab bewegen, sonst funktioniert die Maschine später nicht!

  13. ttftQICDqUcUMYFY

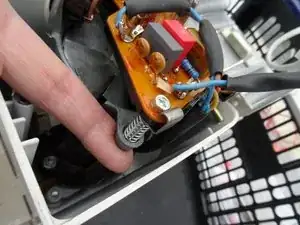

    • So wird der Geschwindigkeitsregler eingestellt:

    • Drehe die beiden Regulierschrauben soweit ein, bis du sie mit dem Finger gerade auf der Rückseite spüren kannst. Drehe dann zwei Umdrehungen weiter.

    • Stelle den Regelknopf auf minimale Drehzahl.

    • Achtung: Netzspannung - nicht hineingreifen!

    • Schließe den Netzstecker an.

    • Die Maschine sollte langsam laufen. Die richtige Einstellung ist 60 Umdrehungen des großen Antriebs in der Minute.

    • Reguliere die Drehzahl indem du beide Regulierschrauben gleichmäßig verdrehst.

    • Jetzt kannst du das Netzkabel abtrennen und das Gerät endgültig zusammenbauen, folge den Schritten in umgekehrter Reihenfolge.

    Excellent work of You! Thanks!Have a very old Kenwood Chef A901D. Sometimes it works normal than it switches to max speed and stays runing fast. Rotating the speed control to max does not hear any speed increase, maybe a little bit. Than removing power waiting longer it lets start run normal. Sometimes i can change the speed and than it switches spontaneously to max speed again. Think maybe the thyristor plays crazy….. i could imagine to replace but not the whole electronic stuff. Or is this the speed measurement sending wrong signals to thyristor?

    Marek Oses -

    The repair is quite simple, I would replace all of the specified parts, they are inexpensive. Good luck!

    VauWeh -

    Hallo, auf der LP-Elekronik ist eine Spule eingelötet, die für die Drehzahlkontrolle verantwortlich ist. Die Spule hat einen Unterbruch und ist defekt. Kann mir jemand den Induktivitätswert in H, oder den Widerstand nennen? Vielleicht finde ich ein Bauteilehersteller, aber ich muss die Werte angeben können. Vielen Dank im Voraus.

    M. Fischer

    Matfis -

    Hab die Spule extra ausgelötet und in den China-Komponententester gesteckt:

    28,5 Ohm und 6,1mH

    Leonard Penzer -

Abschluss

Arbeite die Schritte in umgekehrter Reihenfolge ab, um dein Gerät wieder zusammenzubauen.
