Keurig K55 Power Cable Replacement

Geschrieben von: William O'Brien
  • Kommentare: 0
Keurig K55 Power Cable Replacement

Schwierigkeitsgrad

Difficult

Schritte

3

Zeitaufwand

25 - 30 Minuten

Einleitung

If your Keurig is unable to turn on, you may need to replace your power cable with this guide.

  1. 1CEVeV4Eb1DJVMbj
    1CEVeV4Eb1DJVMbj
    UpxiyZ3xqjh5XgRO

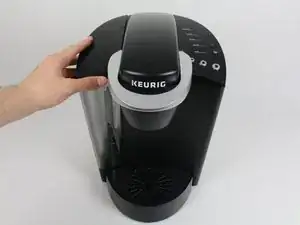

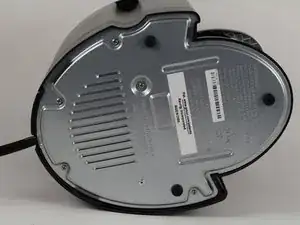

    • Access the bottom of the Keurig by flipping it on its side.

  2. dlt2wdCu2XlALIgG
    dlt2wdCu2XlALIgG
    YPxvv3vAXdOFSxBi
    iWcLNhQhYaaEi3Cu

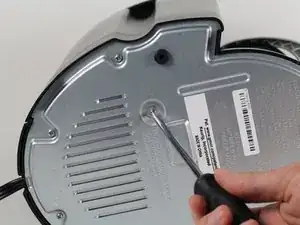

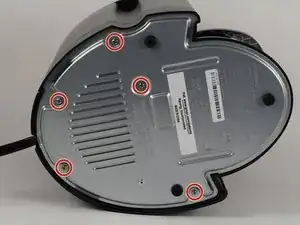

    • Remove the five 13mm Phillips #0 screws securing the bottom case.

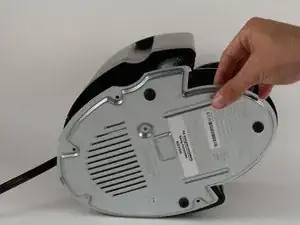

    • Pull the silver cover off of the device.

  3. BBZBLGAZ2hVmRwlg
    BBZBLGAZ2hVmRwlg
    eF3qZTo6bulVoMbs
    ycUWgWZNFMdylFDL

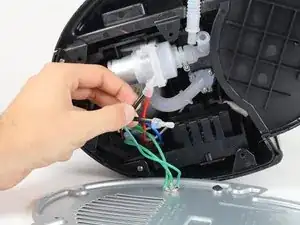

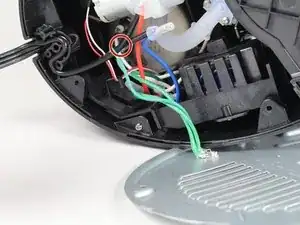

    • To remove the power cable, highlighted in red, follow iFixit's guide on soldering.

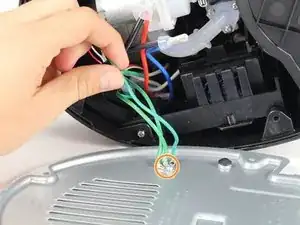

    • The ground cable, highlighted in orange, needs to be re-soldered to your new power cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
