Einleitung

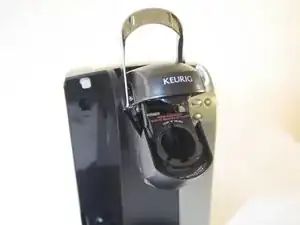

Use this guide to replace the Limit Switch that tells the Keurig that the K-Cup section is closed.
Werkzeuge
-
-

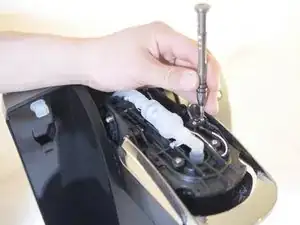

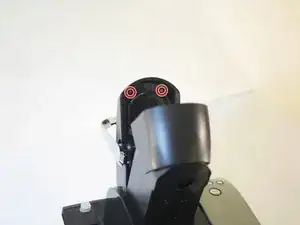

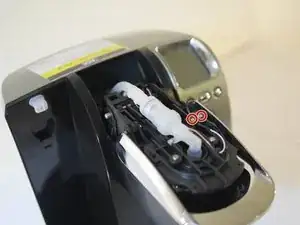

While looking upwards from underneath the Keurig, remove the two 8mm Phillips #2 screws from underneath the black plastic "shroud".
-
-
-

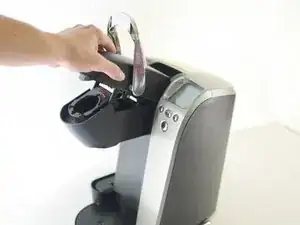

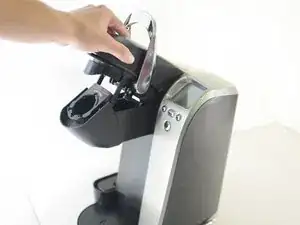

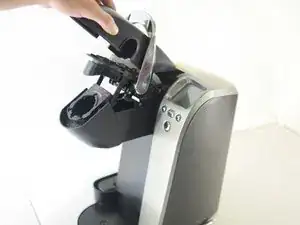

Remove the black plastic "shroud" by pushing inwards and then pulling upwards to disengage the plastic hooks that are not visible.
-
-
-

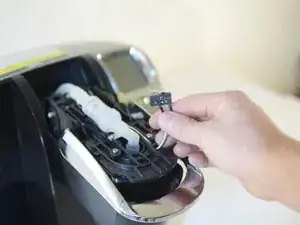

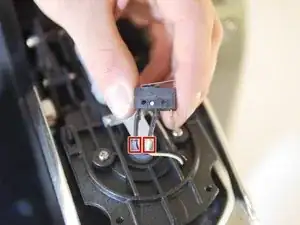

Remove the switch by cuting the two connecting wires. Reconnect a replacement switch using this guide to join wires with solder, or using this guide to solder connections, or by using any other technique to connect wires.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
