Kindle 7th Generation LCD Circuit Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

35 - 45 Minuten

Einleitung

Is your screen frozen? Check out these troubleshooting steps if you have not already.

If you do in fact want to replace your LCD circuit board, then you are in the right place.

It should be noted that this replacement will require you to take apart your entire Kindle, but this guide will help you every step of the way.

  1. U224BwRqPPQoxqEx
    U224BwRqPPQoxqEx
    AwlpEvUCxIOEMKTj

    • Power off your Kindle before beginning disassembly.

    • At each corner, use the blue plastic opening tool to unhook and separate the front panel from the adhesive.

    • Run the tool along the seams to pry open the front panel.

  2. tIMKotWQsDZPImRJ

    • Peel the front panel off to remove it from the Kindle.

    • If this is the first time the front panel has been removed, the adhesive may require a significant amount of force to undo.

    • To prevent damaging the front panel, peel the panel from the corners towards the middle of the Kindle.

    • When reassembling your device, if you are replacing the front panel, additional adhesive may be required.

    What is the adhesive you are using resecure the screen? Would Tesa 61395 Tape work (4mm) or would this create protrusion?

    Camble Scott -

  3. DSrvV1cL3BKDbRYS
    DSrvV1cL3BKDbRYS
    N5hIl4JWJ6REHBDs

    • Remove the ten 5.0 mm T5 Torx screws.

    • A magnetized screw mat can help you keep track of your screws.

    You will break the newer vision of kindle just like this. there is a peg that connect the top center of the screen to the back case. Remove the black double sided tape in the center and push this peg back .

    Kyle Darnell -

    If you see black double sided tape at the top of your Kindle, as the commenter above did, you are on the wrong model—have a look here to see if this is your model: Kindle Paperwhite 3 Bildschirm/Touch Panel austauschen

    Lipsmeyer -

  4. kMq4PUsvd141fy2l

    • Working evenly along the corners and edges, separate the internal contents from the back panel.

    • There are many clips securing the screen to the back panel. Force will be required to remove the back, but you should never feel that the Kindle may break.

  5. TQJ2sGeLLeEbq6nC
    TQJ2sGeLLeEbq6nC
    ueCroQPUDL1dRADP

    • Flip the screen over to face the motherboard and battery pack.

    • Use the blunted precision tweezers to gently unclip and detach the cable connecting the battery pack and motherboard.

  6. jWdELvqlx3ilwhu1
    jWdELvqlx3ilwhu1
    i5pNJjwEBxJYD23d
    wOWlxOATi2c3PBre

    • Use the tip of the spudger to flip up the small retaining flap on the copper colored zero insertion force (ZIF) connector.

    • Make sure to flip up the flap and not the connection itself.

    • Pull the cable from the connector.

    • No force is required to do this, as the name, ZIF, implies.

    6 Cal ED060SCP

    gofer diuna -

  7. 24psk6XXQtuUVZQD
    24psk6XXQtuUVZQD
    mQAmQhM2VlVEuqWQ

    • Similar to the previous step, flip up the retaining flap on the white cable connector.

    • Pull the white cable from the connection.

    • During reassembly, make sure the retaining flaps for both the white and copper colored cable connections are secured. As these are zero insertion force connections, the cables could potentially slide out if this is not done.

  8. mQmQZsvw5JXdF6HH
    mQmQZsvw5JXdF6HH
    NOEiBpgeTBpmQtI2

    • Disconnect the touch digitiser bridge cable by using your Spudger to lift up the white tabs on both connectors.

    • Use tweezers to pull out the cable.

    • The touch digitiser bridge cable is the one connecting between these two connectors.

  9. SwIAJt4EscUrPKXh
    SwIAJt4EscUrPKXh
    NhaQoxaIEftCtI5Y

    • Use the T5 Torx screwdriver to remove the eight 3.0 mm Phillips Head screws.

    • Some screws have washers associated with them. It is important to keep track of the washers and remember which thread they came from.

  10. pnd2Zo3qXYkDjomq

    • Remove the motherboard.

  11. dB55qHTAf3MfPEtM
    dB55qHTAf3MfPEtM
    YPRQCZlZlQIRnWTY

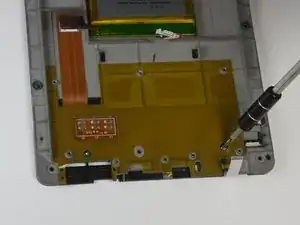

    • Remove the two 2.5 mm Phillips Head screws using the T5 Torx screwdriver.

  12. TRDiBme1rNPSmBgb

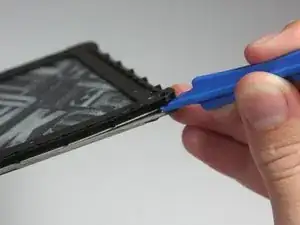

    • Run the plastic opening tool around the edge to separate the bezel from the adhesive.

  13. DYVDONx1iCDTYaZk

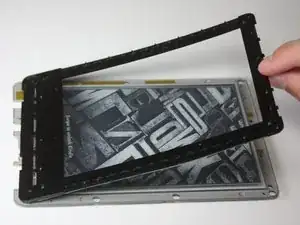

    • Lift the bezel from the screen.

    • Use care, the bezel and circuit board are flimsy and the adhesive is strong.

  14. DwVuKu1kWV6KAhNJ

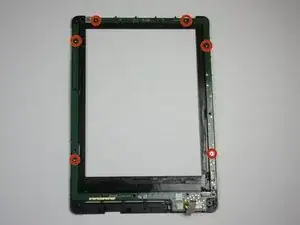

    • Flip the bezel over to view the circuit board.

    • Use the T5 Torx screwdriver to undo the six 2.0 mm screws holding the circuit board to the bezel.

    • Remove the LCD circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
