Kinivo ZX100 Mini Portable Speaker LED Indicator Replacement

Geschrieben von: Matthew Kotce
  • Kommentare: 0
Kinivo ZX100 Mini Portable Speaker LED Indicator Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

45 Minuten

Einleitung

If you can only rely on your Kinivo ZX100 Mini Portable Speaker for its sounds and not the bright colors being produced by its LED indicator, then you may be in need of a replacement.

LED indicators are light emitting devices that have the ability to produce colorful light while saving power and space. Use this guide if you have an appeal for aesthetics and you want your LED indicator to shine bright. This way, you can fully benefit from your Kinivo ZX100 Mini Portable Speaker.

Step 6 requires soldering. Soldering—especially if one is unfamiliar with it—can be toxic and dangerous. It is important that you take appropriate precautions before taking part in this repair.

Make sure to delicately handle the electrical board and heat the soldering iron before you begin.

  1. AxZrlWNpP3aVPZjr

    • Open the circular portion at the top of the speaker by twisting it until it reaches the maximum possible height.

    • Make sure it is twisted fully, as this will allow access to four screws to be removed in the next step.

  2. MUjFOI2JNMAHmLwF
    MUjFOI2JNMAHmLwF
    OwyrbMvrEnYAGYUN

    • Remove the four 12 mm Phillips screws from the enclosure.

  3. Xf5MSMVxkAtLMPmX
    Xf5MSMVxkAtLMPmX
    VixjvT3vvlDJEFgm

    • Separate the resonator portion from the base of device to reveal the middle separator of the enclosure. The enclosure will now be in two pieces.

    • Hold the resonator portion of the enclosure gently aside to make sure there is no tension on the black and red wires coming from the bottom portion of the device.

    • Excessive force may disconnect the black and red speaker wires from the circuitry in the bottom portion of the device.

  4. XFpHnLxxK2vrCdia

    • Separate the very bottom portion of the enclosure (marked in red) by pulling vertically on the red portion of the enclosure (marked in orange).

    • Gently set the very bottom portion and the resonator section aside once they have both been separated.

    • Remove the circuit board with your hands by lifting and sliding the board away from the LED indicator.

  5. 6T4IqjMUW5FSSmNf

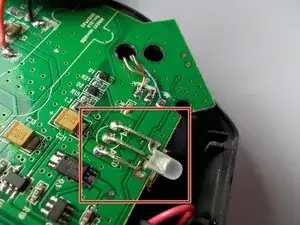

    • LED Locating

    • Locate the three, metal prongs found near the edge of the circuit board. They are found directly behind the LED light.

    • Soldering

    • If you are not familiar with the process of soldering, please refer to an online manual.

    • Heat the soldering iron to operating temperature.

    • Avoid touching the heated tip of the iron to ensure that you do not burn yourself.

  7. N1JfxDPrtH2ZcvNv
    N1JfxDPrtH2ZcvNv
    R5M6HBoqxfiOPNdb

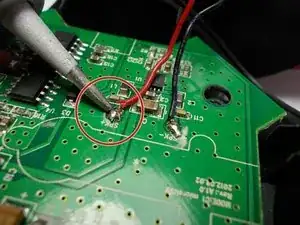

    • Prong Removal

    • The picture in this step calls for speaker wire, but it can also be applied for the removal of each prong.

    • Remove a single prong by pulling it directly up from the circuit board using tweezers.

    • Repeat the previous until all three prongs have been removed.

  8. TY5hB2vCKjWRXSuN

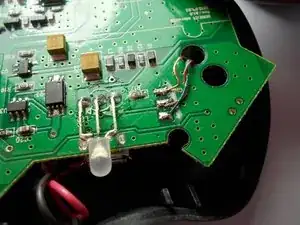

    • Replacement

    • Obtain a new LED component from a manufacturer.

    • Perform the steps in reverse order to reconnect the new LED to the circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
