This guide demonstrates how to replace the door to the battery compartment.
-
-
Turn off camera by firmly pressing the power button that is located on the top of the camera near the selector dial.
-
-
-
Press thumb firmly on battery door and slide it in the direction of the arrow.
-
Lift thumb allowing the door to swing open.
-
-
-
Before removing back cover, it is advisable to use an anti-static wrist strap to prevent damage to electronics.
-
-
-
Locate the 7 screws holding the back cover on.
-
Three screws are located on the bottom of the camera.
-
Two screws are located on the side shown in the photograph.
-
Two final screws are located on the opposite side shown in the photograph.
-
-
-
Remove all 7 screws:
-
Hold the camera firmly with one hand so that you can still see a screw.
-
Place the Philips 00(Found here)screwdriver into the screw.
-
Turn the screwdriver to the left until it is free.
-
Repeat for the remaining screws.
-
-
-
Use plastic opening tools to slightly open the side of the case.
-
Insert a plastic opening tool and apply pressure to the internal three tabs at the top.
-
The first two are near the words "3X Optical Zoom".
-
The third is near the shutter button.
-
-
-
Gently pull apart the back cover from the rest of the camera.
-
Make sure there are no more screws or tabs keeping the cover on.
-
Use the plastic opening tool to separate any sides still closely connected.
-
-
-
Open the battery door.
-
Press thumb firmly on battery door and slide it in the direction of the arrow.
-
Lift thumb allowing the door to swing open.
-
-
-
Use the plastic opening tool to lift the casing around the shutter button.
-
Gently remove the front cover from the device.
-
-
-

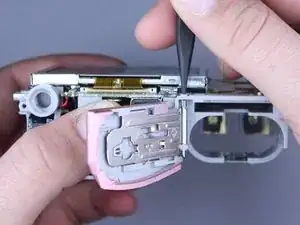

Use grey wedge(Found here) to push metal pin
-

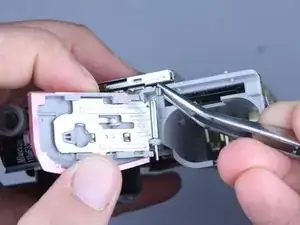

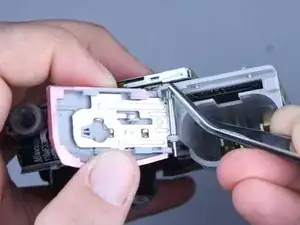

Use tweezers(Found here)to pull out metal pin
-
-
-

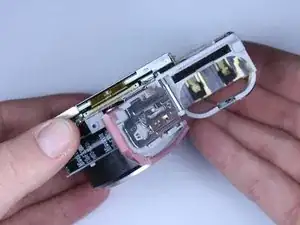

Make spring is in correct orientation when putting back
-

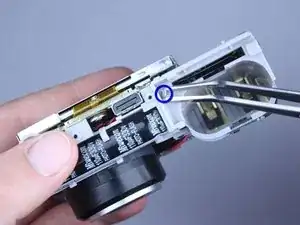

The spring should hook onto a small hole in the door
-
To reassemble your device, follow these instructions in reverse order.
