Kodak S100 EF Flash Capacitor Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

30 Minuten

Einleitung

Back Cover Teardown guide must be used first to get inside the camera. Later, soldering guides will be used.

  1. 3rHHIOIndL6VKLYp
    3rHHIOIndL6VKLYp
    dhXFgcKIDEyOubOC

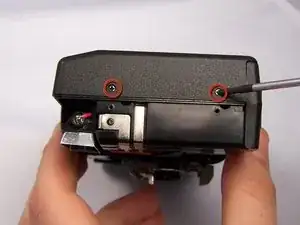

    • Remove the two 6.2mm Phillips screws on both sides of camera's back cover.

  2. f3DhWK1pGpJjcwMK

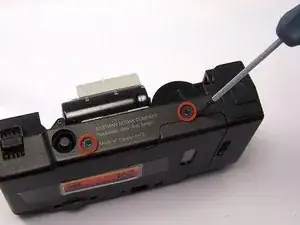

    • Turn camera so the bottom is facing up and the front is facing away.

    • Remove the two 6.2mm Phillips screws on the bottom back cover of the camera.

    • Back cover is now unscrewed an can be removed.

  3. s1QWLWjDXnaWCMLL

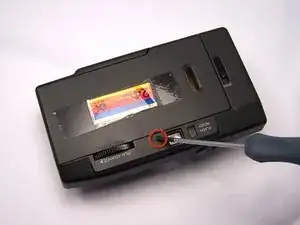

    • Have the back of the camera facing up.

    • Unscrew the 6.2mm Phillips screw next to the viewfinder.

    • The back cover is now unscrewed. Lift up and pull the cover off evenly.

  4. UaqtdOgclmJSJWgD

    • The capacitor is located at the bottom center of the camera.

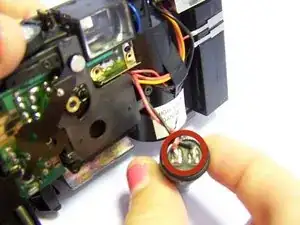

  5. sGMBw32CTPVaUy5x
Abschluss

To reassemble your device, follow these instructions in reverse order.
