Kurio 7 Battery Replacement

Geschrieben von: Alex Powaser
  • Kommentare: 1
Kurio 7 Battery Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

20 - 30 Minuten

Einleitung

Accessing the battery is straight-forward, but the replacement requires soldering, and that can be tricky. Soldering involves melting two pieces of metal together so that they become one piece. Replacing the battery should prevent the Kurio 7 from malfunctioning.

  1. XS2tmgOcOoOxITQg
    XS2tmgOcOoOxITQg
    DhX4W2c2FhQLcRvt
    iGYg5H61UlMjnYFZ

    • Begin by removing the rubber cover from the Kurio 7.

  2. gH31wiOTJnvOsALs
    gH31wiOTJnvOsALs
    ublYBRaX1ATXYNvs

    • Remove the four 30 mm Phillips #00 screws from the outer case.

  3. HOvyilJQnqtZfIUL
    HOvyilJQnqtZfIUL
    TwPIg446ObgR4FBt

    • Insert the plastic opening tool in the gap between the front cover and the back cover of the device.

    • Slide the plastic opening tool around the edge of the device. Gently pry apart the tabs that hold the front cover and the back cover together.

    • Be careful not to break off the tabs that hold the front cover and the back cover together.

  4. GYrrDo5bqoFHFaXB
    GYrrDo5bqoFHFaXB
    Qwaf4JItbbADTgSl

    • Once all of the tabs are removed, the back cover should come off easily.

    • Gently remove the back cover. There are wires inside that may get caught on the cover while removing it. These wires are soldered to their components and are difficult to reattach.

  5. oL1iHIuSxY3nrGjG

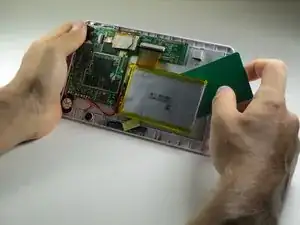

    • Use a credit card, or other thin object, to separate the battery from the screen.

    • Be sure to work the card slowly and carefully in order to not damage, break, or deform the battery.

  6. ZADrj1ttZFnXp1h1

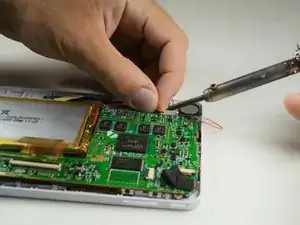

    • Desolder, or separate using the desoldering braid, the marked areas on the motherboard to remove the old battery.

    • Refer to our soldering guide on how to solder and desolder.

Abschluss

Solder in the new battery. To reassemble your device, follow these instructions in reverse order.
