Kurio Touch 4S Screen Replacement

Geschrieben von: Ali
  • Kommentare: 0
Kurio Touch 4S Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

14

Zeitaufwand

30 - 40 Minuten

Einleitung

This guide will show you how to replace your broken screen.

  1. GclZteQNqHJXADAY

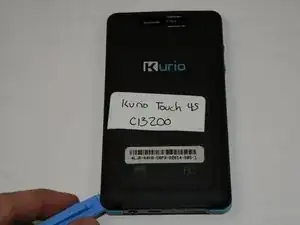

    • Make sure to open the back cover easily using the plastic opening tool

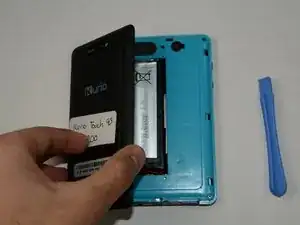

  2. LWvBQe3TXwvPYQJV
    LWvBQe3TXwvPYQJV
    ulF2g5JYI2YPbBIe
    DrKDnGulcEqbH6jj

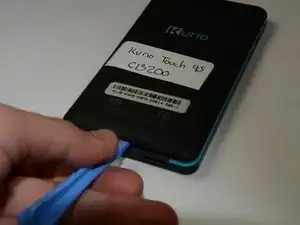

    • Remove back cover by prying away from the Kurio.

    • The easiest place to remove the cover is from the bottom and top; try to open it from right to left sides.

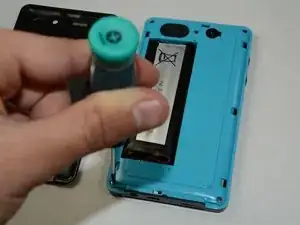

  3. 5pNSNW21BeQ1SXvP
    5pNSNW21BeQ1SXvP
    e1UaPGFYvKJfIQto

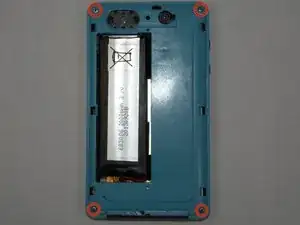

    • To remove the battery, make sure the four 5mm Philips screws on each side of your device is open using the Philips#1 Screwdriver.

  4. b15P2ADKwMAGfaaX

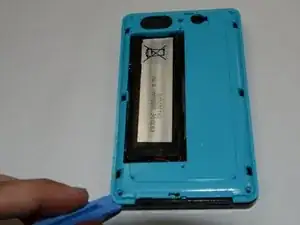

    • After you remove your four 5mm Phillips screws, use your plastic opening tool to help you open the plastic cover of your device.

    • All these screws are identical so don't worry if you get them out of order.

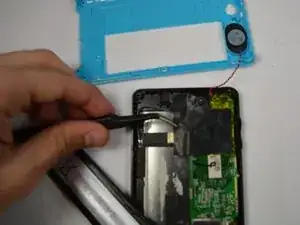

  5. VGRwEhsRclTNN2xu

    • Remove the plastic cover that is covering the camera area.

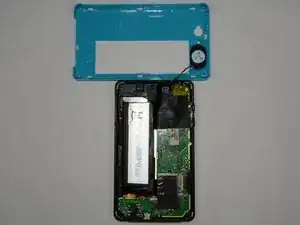

  6. mlioLRAjpKXMrHXp

    • Separate the two halves of your Kurio Touch 4S and lay them besides each other.

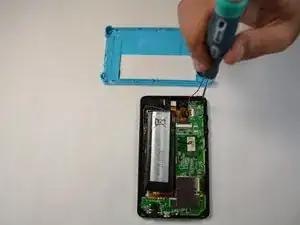

  7. vKUXZ2giVcOGUUNV

    • Use Phillips # 1 screw to open the 4 screws on the motherboard.

    • Open the screws gently and do not apply too much force as you could damage the motherboard.

  8. AGcVGf6r6TWJeSCC

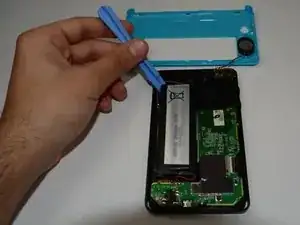

    • Use the plastic opener to remove the battery.

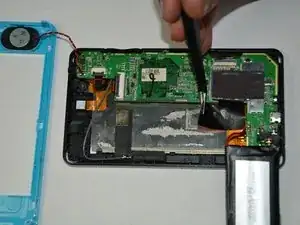

  9. MQYSW1PRLMTyw4GP

    • Use tweezers to remove the black tape that is attached to the motherboard.

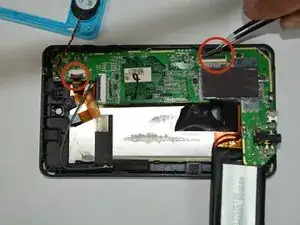

  10. LNCNZa2Ql1JETkRV
    LNCNZa2Ql1JETkRV
    6KH5ZfUe1yOy6lkX

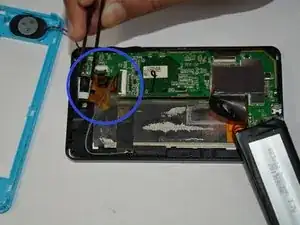

    • Detach all the wire that are connected to the motherboard.

    • Also remove the camera module and other components that are attached to the motherboard.

    • For more information on soldering Click here

  11. oqMiqEwXKbJ2qNDQ

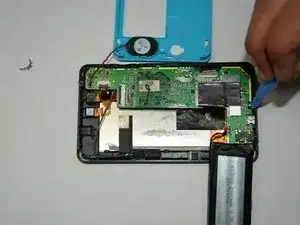

    • Remove the motherboard with the help of plastic opener.

    • Detach the power plug before you remove the motherboard.

  12. AkPaxM3uyeVFgFpi

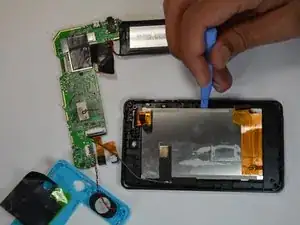

    • Use the Plastic opener to remove the screen.

    • Do not apply too much pressure as the front cover could be damaged.

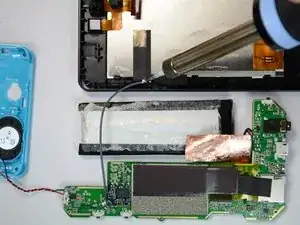

  13. iwWFRIreUtn53lhu

    • Use the soldering tool to remove the wire that is attached to the screen & the motherboard.

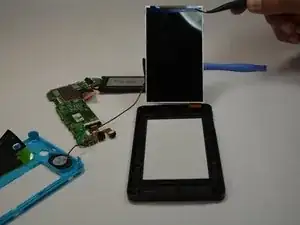

  14. QV1OdDdJyZjXCpqh

    • Use tweezers to remove the screen from your Kurio Toich 4S.

Abschluss

To reassemble your device, follow these instructions in reverse order.
