Kyocera Hydro Life Charging Port Replacement

Geschrieben von: Rebecca Lamb
  • Kommentare: 0
Kyocera Hydro Life Charging Port Replacement

Schwierigkeitsgrad

Very difficult

Schritte

10

Zeitaufwand

1 Stunde

Einleitung

This is a replacement guide for the charging port of the Kyocera Hydro Life. This guide requires specialized soldering knowledge and tools. Please ensure that you have these tools before attempting this guide.

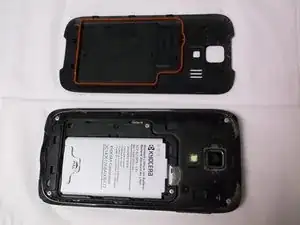

  1. uC3RECswcbBVxpLN
    uC3RECswcbBVxpLN
    4aFhrdij3xEGWaAO

    • Remove the back of the phone.

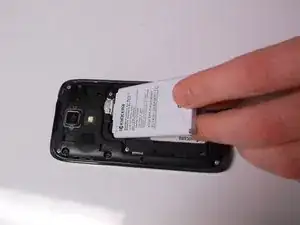

  2. MjWnCRYtwmiffbPZ
    MjWnCRYtwmiffbPZ
    SHlCpZAejHCYaEnR
    N5ap4MWuxJaLK4vO

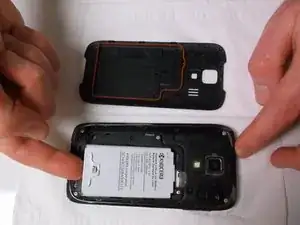

    • Remove the battery by pulling up on the end and towards yourself.

  3. RLZ44NODnTDech2B

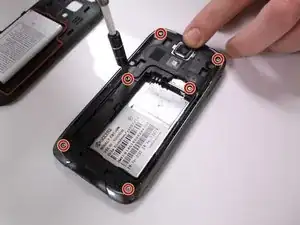

    • Use a PH0 screwdriver to remove the 6 screws which are holding the panel in the phone.

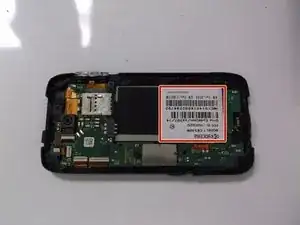

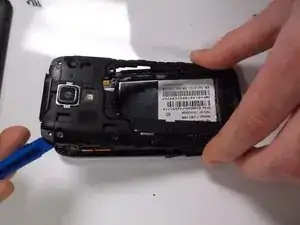

  4. UfvaAAW3sIM1JsLK
    UfvaAAW3sIM1JsLK
    hOOfCx3NiretrQ5t
    Lfc2ajDvZIwppcUQ

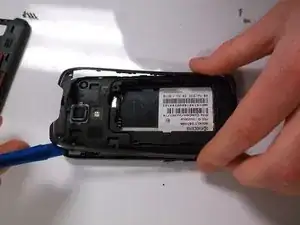

    • Remove the frame from around the back of the phone.

    • Then remove the back panel of the phone.

    • Remove the white sticker from in the middle of the phone.

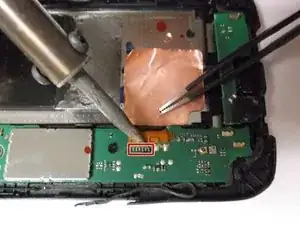

  5. VRZ5F1RJkf1D5FO2
    VRZ5F1RJkf1D5FO2
    lEPZlalygjCCENmQ
    1XGSjLZwHFFiGhdP

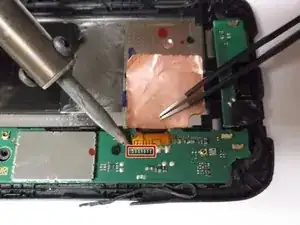

    • Desolder the 7 pins.

    • If you have never soldered before, follow this guide.

    • This type of soldering requires very specialized and expensive equipment. Please be careful if you decide to continue following this guide.

  6. YTS3XwkFF5OLweuY
    YTS3XwkFF5OLweuY
    iUjJcwODKNLcgDE3

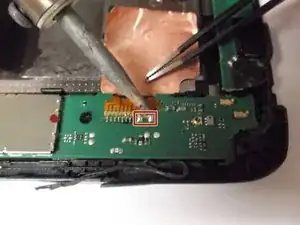

    • Desolder the positive and negative terminals.

  7. PPN6kJwkYrCIG2td

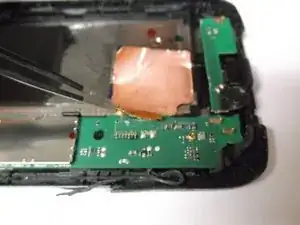

    • Peel back the copper plated sticker.

    • If the copper plated sticker is broken, it must be replaced. If it is not broken during disassembly, it can be reused.

  8. CbIIPmX6RZTB3oJj

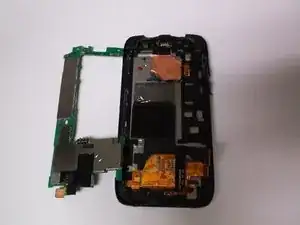

    • Remove the motherboard without breaking it by placing it to the side. It will still be attached to the phone.

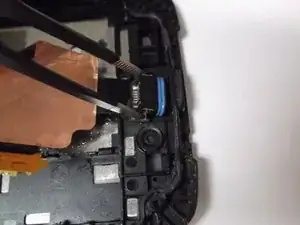

  9. 4EY1bXgBYuweraKe

    • Using force, remove the charging port from the charging slot.

  10. LHjDJ6ATtUbRx5VA

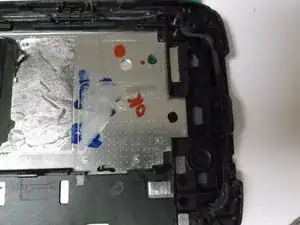

    • Replace the charging port and ribbon.

    • If the copper-plated sticker is damaged, it will need to be replaced as well.

Abschluss

To reassemble your device, follow these instructions in reverse order.
