LG CF360 LCD Screen Replacement

Geschrieben von: Ricky Wai
  • Kommentare: 0
LG CF360 LCD Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

18

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

This guide will help you replace the LCD screen on your LG CF360 phone. It is a lengthy process, but don't let the number of steps intimidate you! Follow along and you will have a brand-new LCD screen installed in about an hour.

Please note that you will need a soldering iron to complete the replacement. If you need help on soldering, take a look at iFixit's Soldering Guide before you start.

  1. FWgpsVIaZjwn16Py
    FWgpsVIaZjwn16Py
    oBNcMpF2SivMmCe4

    • On the back of the phone, place your thumb on the three raised bumps and slide the back cover upward.

  2. XwAdrMe4dEYvWjuh

    • Lift and remove the battery.

  3. MbsViEGLPGIBPRfC
    MbsViEGLPGIBPRfC
    MclpdvkpYPYIPUrT

    • Remove the two screw covers at the top of phone with tweezers.

  4. YVRtxgTHPEtRJBcC

    • Remove the six Phillips #000 (3mm) screws.

  5. eLsr1ENkCwJZweNy
    eLsr1ENkCwJZweNy
    VVooWfVAMfSJWNiO
    bJF3hhGmJCeNVBfE

    • Use the plastic opening tool to pry the back cover off. Insert the tool between the back cover and red mid section and go around the entire phone.

    • The plastic side buttons fall out when you take the back cover off.

    • The back cover is connected to the speaker by red and black wires.

  6. rEbK5faojFdIQhAS

    • Use the tweezers to remove the red and black wires connecting the speaker to the green motherboard by pinching the sides of the plastic base near the motherboard.

    • Set the back cover with the speaker aside.

  7. JOCCnlVHWLluJcN1
    JOCCnlVHWLluJcN1
    NMlEjMIG3TwlslnL

    • Use the plastic opening tool to gently lift the snapped-in motherboard from the front panel.

    • An orange ribbon from the LCD is connected to the underside of the motherboard, so do not force the motherboard from the rest of the phone yet.

  8. YRsiNRGjmjAvfCnY

    • Gently remove the blue transparent tape from the connector.

  9. stm1agF53bRkWY5j

    • With the plastic opening tool, gently pry the LCD connector from the motherboard.

    • Set the motherboard aside.

  10. 4DSQqbkNkjrGV2AI

    • Take the front case and unscrew the four Phillips #000 (1mm) screws around the ribbon.

  11. Vr4aIe3CRjALHION

    • Gently pull the orange ribbon from the number pad casing.

    • Set the number pad case to the side once it is detached from the ribbon.

  12. Lv5QZNsKxh1bj55V

    • Remove the two red sticker screw coverings at the top corners with tweezers.

  13. fsxFgBgWquHxmIFH

    • Unscrew the four Phillips #000 (3mm) screws at the corners of the phone.

  14. 6T4sF4cv56VMaSCk
    6T4sF4cv56VMaSCk
    omIxKOHTSHDjtJ1M

    • Pry the red sliding backing from the front cover by inserting the plastic opening tool in between the two sections and going around the entire phone.

    • Set the red sliding backing and front cover to the side.

  15. axQL4taNOSnsvPpW

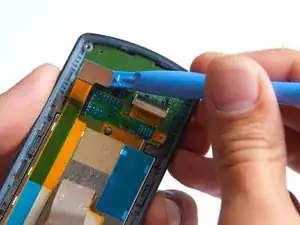

    • Be very careful to not damage the green keypad board when using the plastic opening tool.

    • Use a plastic opening tool to carefully disconnect the silver L-shaped LCD screen ribbon.

  16. SyOZnYnQdA2BhDkf
    SyOZnYnQdA2BhDkf
    v3HAiKUvbDnIthge

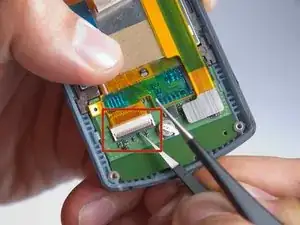

    • At this point, an orange ribbon is still connected to the white and black Zero Insertion Force (ZIF) connector on the keypad board. Be careful to not damage the ribbon.

    • Use tweezers to carefully pry up the black retainer on the connector.

  17. SkGlBZsiORDwZL1Y
    SkGlBZsiORDwZL1Y
    SPgxWn1iTCfLPYVh

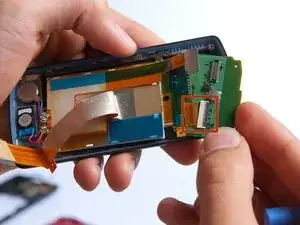

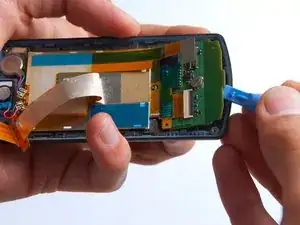

    • Lift the keypad board away from the phone casing using a plastic opening tool.

    • Slowly rotate the keypad board towards you to disconnect the second orange LCD screen ribbon and remove the board.

  18. F3lGM6TDsZlQM1OO

    • If you have never soldered before, or need a refresher, take a look at iFixit's soldering guide before starting this step.

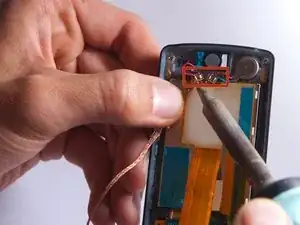

    • Use a soldering iron and a solder wick to de-solder the 4 wires connected to the LCD screen.

    • The LCD screen can easily be removed at this point by lifting it from the phone casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
