Le Pan S Speaker Replacement

Geschrieben von: Maria Dole
  • Kommentare: 2
Le Pan S Speaker Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

25 - 30 Minuten

Einleitung

If you have confirmed the speakers are broken by also testing the volume in your settings, the speakers will need to be replaced. It is important to note that some basic knowledge regarding soldering technique and safety is required. For those who are not completely confident with their soldering skills, a guide may be accessed at Wie man Lötverbindungen herstellt und entlötet

  1. rExOwV5xuYVqCiRo

    • Remove the two 3.5 mm Phillips #00 screws that are covered by the micro SD port.

    • This cover is adjacent to the volume button on the side of the Le Pan S.

  2. 1hA2tVClhf35baio
    1hA2tVClhf35baio
    NVriU1cZiB2CTT1N

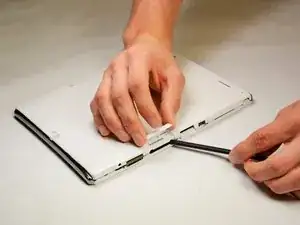

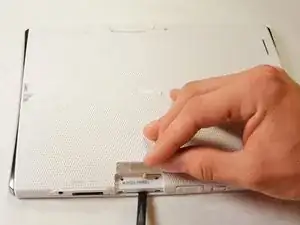

    • Insert the spudger between the front and back panel in order to pry them apart.

    • Do this beside the volume button and the micro SD cover.

    • Pry open the rest of the Le Pan S by dragging the spudger across the side.

  3. nouVIZunSHRscNLW

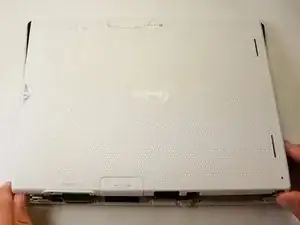

    • Once the front and back faces are completely separated, remove the back cover to reveal the inside components.

  4. 3PsyxkXGRYvTVNjv
    3PsyxkXGRYvTVNjv
    pZeHo2k4TGLQNnfL

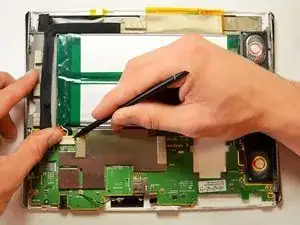

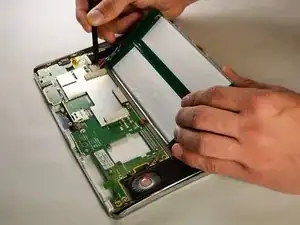

    • Disconnect the battery from the circuitry and lay it out of the way.

    • The best method to complete this is to pull the bundled cable connector out with your hands. Pull towards the wires and away from the electrical board. Use the spudger to further coax the cable out.

    • If you are replacing your battery, make sure to dispose of it properly.

    What is the replacement battery to get? Model,type, anything would help..

    Bg70 -

    what is a spudger? Where do you get it? Are replacement batteries still available somewhere?

    BETH SCHRECK -

  5. 5y3NjPBrvGVCMdUn

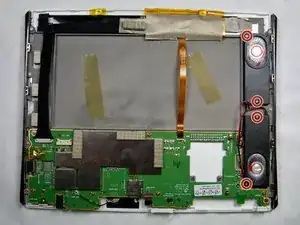

    • Remove the four 3.5 mm Phillips #00 screws holding the speakers in place.

    • Move the speakers out of the way.

  6. FmFgjYdLTQ4nn6wm

    • Place the wick on the solder connecting the speakers to the electrical board.

    • Place a heated soldering iron on the solder wick to melt the existing solder.

    • Pull the speakers off of the solder connection.

    • A solder vacuum can also be used in place of solder wick to remove old solder.

    • If you need more help with the soldering process, take a look at iFixit's guide for soldering and desoldering connections.

Abschluss

To reassemble your device, follow these instructions in reverse order.
