LeapFrog LeapPad2 Explorer Front Camera Replacement

Geschrieben von: Nupur Garg
  • Kommentare: 0
LeapFrog LeapPad2 Explorer Front Camera Replacement

Schwierigkeitsgrad

Difficult

Schritte

14

Zeitaufwand

20 - 30 Minuten

Einleitung

Are your selfies not showing up? Replace your front camera to see how beautiful you are.

This guide will require soldering equipment and skill.

  1. 5vdqSrsoor5yWP45
    5vdqSrsoor5yWP45
    NmjprrqOrsTTGSMI

    • Before disassembling your LeapPad, ensure your device is shut off.

    • Push outward on the plastic side panels to remove and reveal battery.

    • The panels should detach fully from the main device.

  2. XbsNslLqVrf5cPG5
    XbsNslLqVrf5cPG5
    HIfdlg6cqNxhPEDH
    vBffqF6gvB1BvGyv

    • Push down from the positive end of the battery towards the negative end to pry the battery up out of its dispenser.

    • Remove all four AA alkaline batteries from the device.

  3. aUTsuld23WvDaohp
    aUTsuld23WvDaohp
    ZwIhDIWaWoPJXYah

    • This step will void your device warranty.

    • Remove the following screws securing the back cover to the main device:

    • Two 10.0 mm Phillips screws

    • Four 4.0 mm Phillips screws

    • Three 3.0 mm Phillips screws

  4. FCgYtUwCAyLV54fw
    FCgYtUwCAyLV54fw
    b3CRvQVU142RCdZ4
    SnaVMPqjykSQtR1M

    • Insert a plastic opening tool into the seam between the front and rear covers to detach the back cover from the rest of the device.

    • Move the plastic opening tool around the perimeter of the LeapPad2.

    • Lift up and remove the rear case from the tablet.

    • A butter knife can help when prying the device.

  5. cxvqrupqlX6PhFUZ
    cxvqrupqlX6PhFUZ
    4ys22dxygG5FfG5A

    • Remove the following screws securing the front cover to the main device:

    • Three 6.0 mm Phillips screws

    • Three 7.0 mm Phillips screws

    • Two 10.0 mm Phillips screws

    • Three 7.0 mm Phillips screws (bulkier screw head than other 7.0 mm Phillips screws)

    • The white plastic component holding the speaker must be removed to reach the third 7.0 mm Phillips screw. Refer to Step 2.

  6. vEouZtr14qBOE4fF
    vEouZtr14qBOE4fF
    fjHRbfYJKsEapbUt

    • Unscrew the white plastic piece to expose the third 7.0 mm Phillips screw mentioned.

  7. N43mafaNo6VrAyaR
    N43mafaNo6VrAyaR
    XltsxnmY3ohdG5kS

    • When unscrewing the game cartridge screws, you will find a loose black plastic component underneath the game cartridge.

    • Use tweezers to remove the piece.

    • In case the piece falls out unexpectedly, refer to this step to make sure you put this piece back in place during the reassembly of your device.

  8. NSCNbmmSZsAhodee
    NSCNbmmSZsAhodee
    4s1HVj5y2pCFhwGY

    • Desolder the through hole-components in power plugs on both sides of the device where the batteries were once connected.

    • Do not refer to the pictures in this step for correct soldering and de-soldering techniques. They are solely for illustration purposes.

    • For proper soldering and desoldering techniques reference Wie man Lötverbindungen herstellt und entlötet.

    • Soldering requires the iron to be at hot temperatures and can cause burns. Wear safety glasses as needed.

    • Be extremely careful with the cables in this step as they could melt, burn, or break.

  9. 545WZAqV3me4QYkg
    545WZAqV3me4QYkg
    weIMXbrHQDIKSotU

    • Pry the power cables from the device using your fingers or tweezers.

    • Now you should be able to lift up the front cover, leaving you with the motherboard and screen.

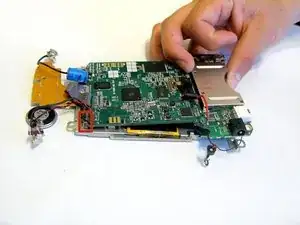

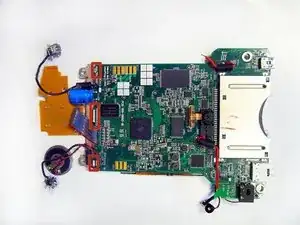

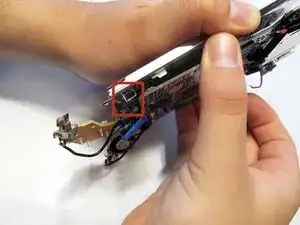

  10. DO2uK2jHckejkEQR
    DO2uK2jHckejkEQR
    u6Ildpw5JHgyPwEL
    qEBH2lksHjuOcjXP

    • Lift the screen from the motherboard by pulling the board out from the three metal tabs.

    • Do not be too aggressive when separating the components, as the parts are still connected.

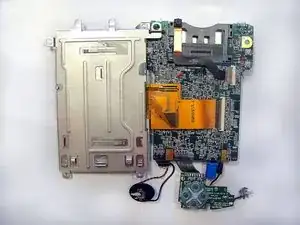

  11. yLxADYqFDFbOQnYa

    • Separate the screen from the motherboard and lay the device's components flat open like a book.

    • Do not be too aggressive when separating the components, as the parts are still connected.

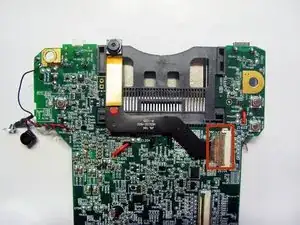

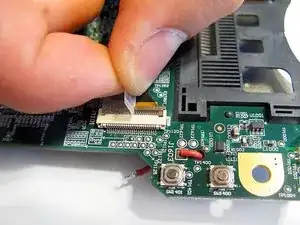

  12. Ls14g12rAZvXTEJ6
    Ls14g12rAZvXTEJ6
    hfiQaYMn2lyhMaW3

    • Peel off tape covering the camera's connection ribbon to the circuit.

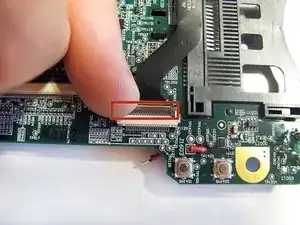

  13. dwWQAmQybsIvbQdQ

    • To safely remove the ribbon cable, you must first pull up the retaining flap.

    • Failing to do this step could result in damage to the cable and/or connector.

  14. PPePu6lA4ijtsLeL

    • Gently pull outward, to remove the ribbon from the socket on the circuit board.

    • If the flap is up as shown in the picture, no force should be required to remove the ribbon cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
