The laptop wil need to be completely disassembled and the motherboard pulled before removal of a USB port can begin.

  1. J5gKqrGl6HbgGFus
    J5gKqrGl6HbgGFus
    4uuSl3gCEqwBPkgG
    • From the underside of the laptop, press the two battery tabs inward to remove the battery. Lift the battery to remove.

  2. thbdtHXCBdQ1FNak
    thbdtHXCBdQ1FNak
    5n3Kj1jIJrhbydxb

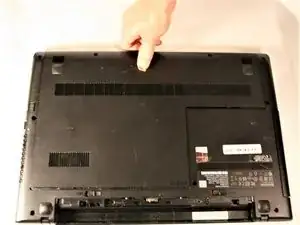

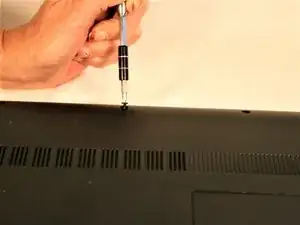

    • Remove the three #00x5.5mm screws from the bottom front under panel and then slide the main access panel forward and out.

  3. LtHEfiY5oGvX2M5Q

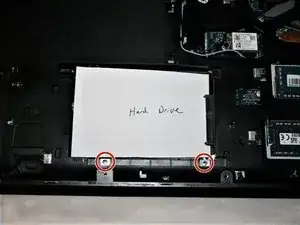

    • Remove the two #00x4.5mm screws from the hard drive and then slide the drive to the side and remove the hard drive.

  4. OrJLJ4BhVpmdVATF
    OrJLJ4BhVpmdVATF
    CYYZnpbeXD54ep1f

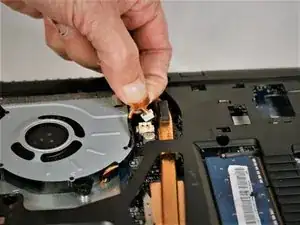

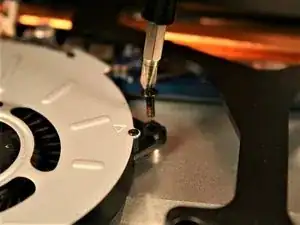

    • Remove the three #00x5.5mm screws from the fan unit, unplug the fan wiring connector and then remove the fan unit.

  5. tfHQtG3IhIgClatc

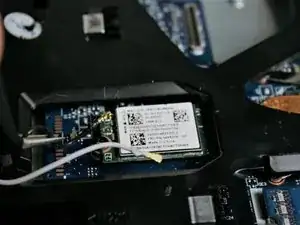

    • Use tweezers to carefully remove the white and black wires from the WiFi card. Thread the wires back out of it's channel and hold to the side.

  6. IPwaMTrluLxE5NdQ
    • Unplug the two ribbon cables from under the fan unit area.

  7. MajfnGcZvcoX6p6b
    MajfnGcZvcoX6p6b
    N6BFFZnTWIHf2EoT

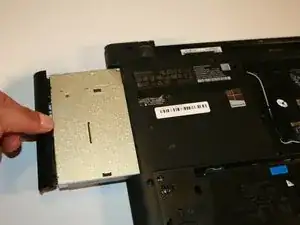

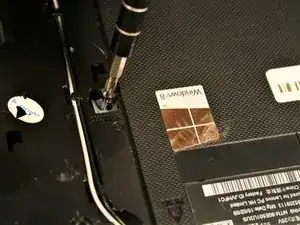

    • Remove the CD Drive fixing screw (#00x5.5mm) and slide the drive out from it's slot.

  8. QAGBOaqvjocRiwVs
    QAGBOaqvjocRiwVs
    dGIgcBqigQYvuhpy
    s2Rxf4pXM5a5Evn3

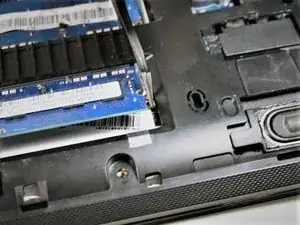

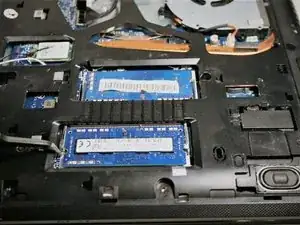

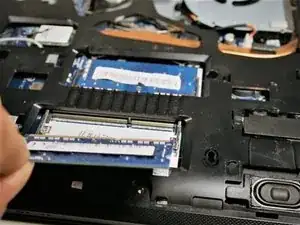

    • Release the RAM fixing clip from both ends of each RAM chip. Once released, slide out each RAM chip.

  9. Nv4R1qkWVfdnQkH4
    Nv4R1qkWVfdnQkH4
    knBgAnOKKaMwldJc
    bsTF1Gcdf14HQjCe

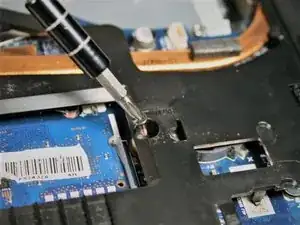

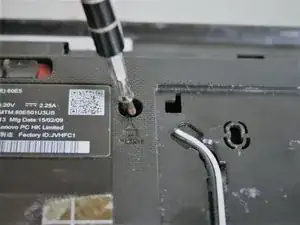

    • Remove the three #00x5.5mm screws holding the keyboard.

  10. PMUNiEEG4xWHZLSn

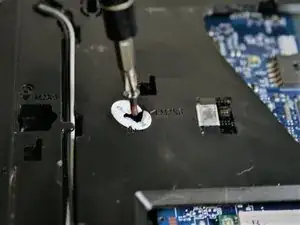

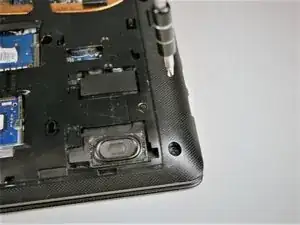

    • Remove the six perimeter #00x5.5mm screws holding the palm rest.

  11. SKTrWDMXRTO6mgaC
    • Flip the laptop over, lift the screen and with a plastic spudger begin to remove the keyboard. Start at the top left corner and work from left to right lifting the keyboard. Once the top section is free, lift the keyboard up and away from yourself. Remove the ribbon cable connection and set the keyboard aside.

  12. osTUJBoFPylQxVxY
    osTUJBoFPylQxVxY
    ZPjRsCFPaflFEn4j
    dRyEWZWfUfkCBpqA

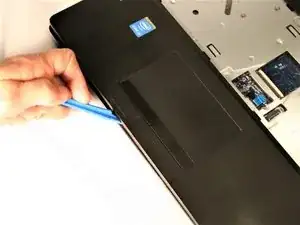

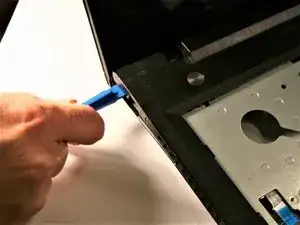

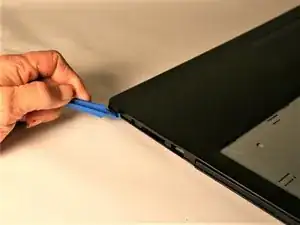

    • Disconnect the two ribbon cables then using a plastic spudger, begin to separate the the palm rest from the chassis. Start along the front left edge and work left to right to separate each half. Separate the left and right sides in the same fashion.

  13. MlKVLgdFwfCcTN6f
    MlKVLgdFwfCcTN6f
    m63lU4UUqvgXW1IG

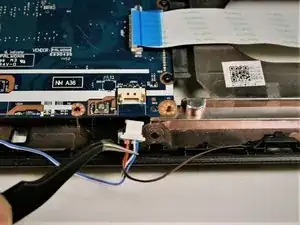

    • Disconnect the CD Drive ribbon cable and the auxiliary board cable. Disconnect the speaker cable and then remove the CD Drive board fixing screw (#00x4.5mm). Remove the auxiliary board fixing screw and then remove the auxiliary board.

  14. BgGMH2dbt1OSuGtH
    BgGMH2dbt1OSuGtH
    3BbEh2VGVnCkBN3H
    ChCNIKHFUjBqiTbB

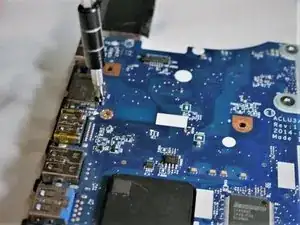

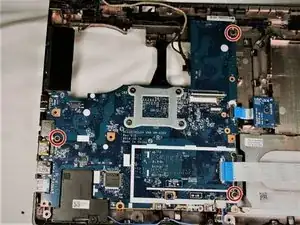

    • Remove the three motherboard fixing screws (#00x5.5mm) and remove the motherboard.

  15. O16TShkPfeTVx2Eq
    • These joints will have to be soldered for removal

Abschluss

To reassemble your device, follow these instructions in reverse order.
