Lenovo IdeaPad 130S-11IGM Trackpad Replacement

Geschrieben von: MD Yeasin Rahman Khan
  • Kommentare: 0
Lenovo IdeaPad 130S-11IGM Trackpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

25 Minuten

Einleitung

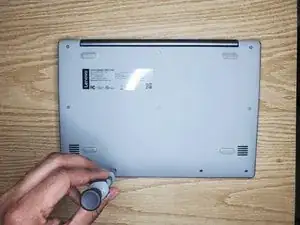

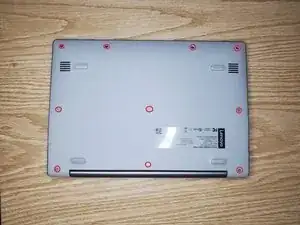

  1. NqFQGohGsTjGAJbo
    NqFQGohGsTjGAJbo
    Ki5nE2W6uiJPesMK

    • Power down the device and disconnect the power cable.

    • Remove the ten screws from the back panel using a T5 Torx screwdriver.

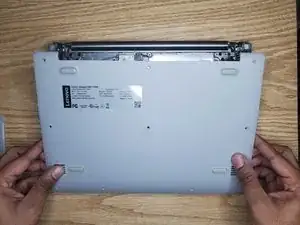

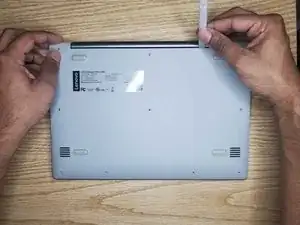

  2. 5nPNTiKNHApMPSlZ
    5nPNTiKNHApMPSlZ
    dQuZlUilNHgyPPdv

    • Use an iFixit opening tool to detach the clips on the top side of the back panel.

    • After unclipping the top part of the panel, use your hands to gently unclip the rest of the panel.

    • Remove the back panel from the laptop.

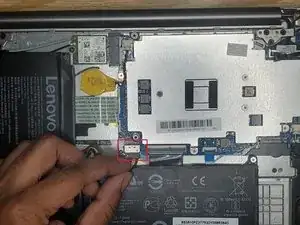

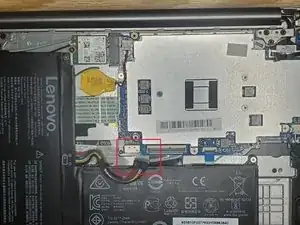

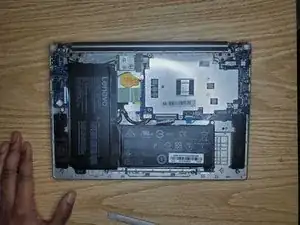

  3. SOy2F536YX52dEkk
    SOy2F536YX52dEkk
    DeHsXqY6aHCTCUQC
    hQnObucD4yJs3Bxu

    • Unplug the battery connection from the motherboard.

    • This can be a little bit tricky; hold the wire of the plug and gently pull it. Alternatively, there is a small ridge at the edge of the battery connector, next to the wires which allows you to pry the connector out with a spudger.

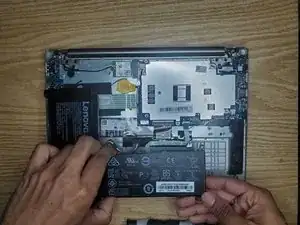

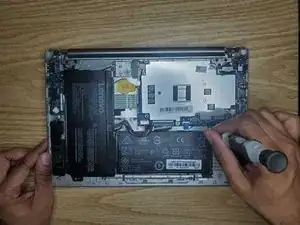

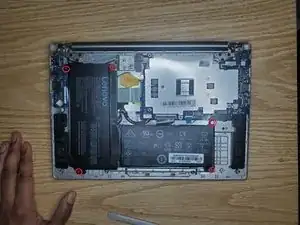

  4. DF165WmutsDVOWko
    DF165WmutsDVOWko
    LRNgLQWdJMxUGwOQ
    iUlZadsAbRHJRLFL

    • Remove the five screws from the battery using a Phillips #00 screwdriver.

    • Use your hands to remove the battery from the laptop.

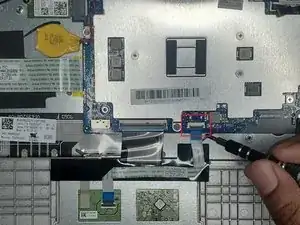

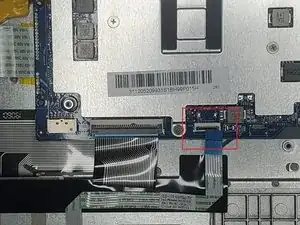

  5. PbUr3ipFIJa1tIbn
    PbUr3ipFIJa1tIbn
    LYfjidhCvjYPA5pX

    • Use a pair of tweezers to lift the clip securing the touchpad cable.

    • Disconnect the touchpad cable from the motherboard.

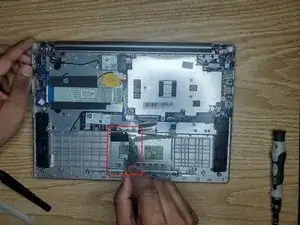

  6. Ay4NN1QlfJPEZsG3
    Ay4NN1QlfJPEZsG3
    cDTwdjjDiysTQVxT

    • Remove the black tape hiding the screws on the trackpad.

    • Be careful when taking the tape off; try not to damage the other wires.

    • You will need the tape when reassembling the laptop.

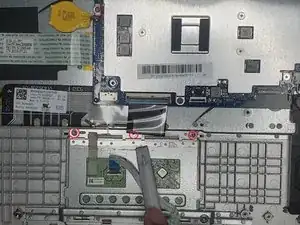

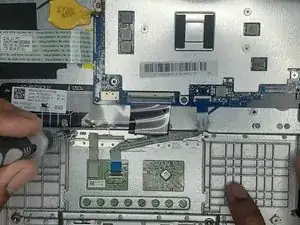

  7. Yx1TDqCZHRY44BUd
    Yx1TDqCZHRY44BUd
    GxIKhTSNDcrCh5RA

    • Remove the three screws holding the trackpad in place using a Phillips #00 screwdriver.

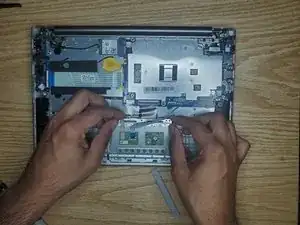

  8. UjBFvKyYvNSmUmvb
    UjBFvKyYvNSmUmvb
    JUTYi5ydUh1XI53A
    5Pn2OporX4KSPaQq

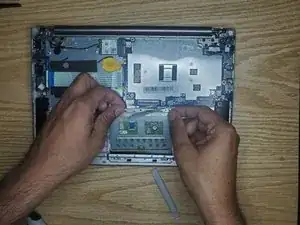

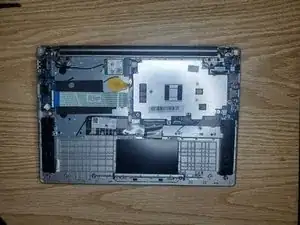

    • Lift the trackpad from the top side and remove it from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
