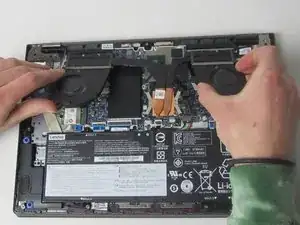

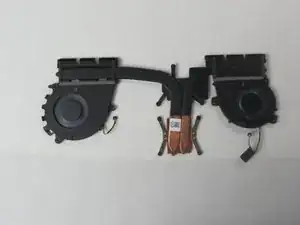

This guide will walk you through the process of removing the cooling fans in your Lenovo IdeaPad Flex 6-14IKB. This guide is helpful if your laptop is overheating. Your fans may need to be replaced, or simply cleaned if they are clogged with dust. Removing the fan is a simple task, but it is important to make sure you have thermal paste on hand for when it is time to reinstall the fan.
-
-

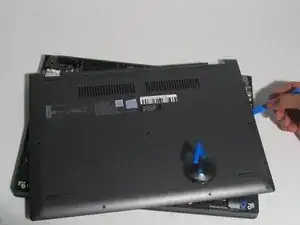

Use the plastic opening tool to pry in the seam between the bottom cover and the rest of the laptop.
-

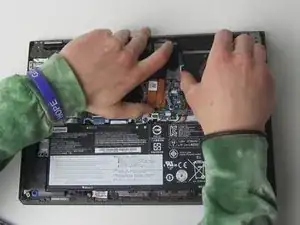

Work your way around the bottom cover of the laptop in a clockwise rotation until every clip is free.
-
-
-

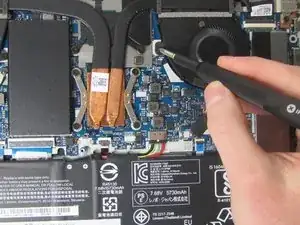

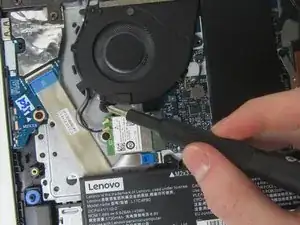

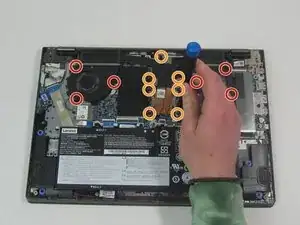

Remove the six 3.5 mm screws that secure the fans in place using a Phillips #00 screwdriver.
-

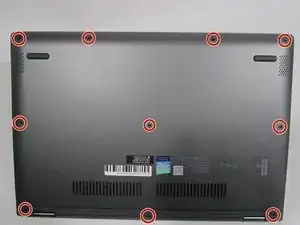

Loosen the seven captive screws using a Phillips #00 screwdriver.
-
-
-

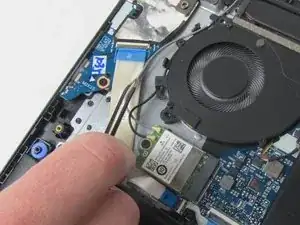

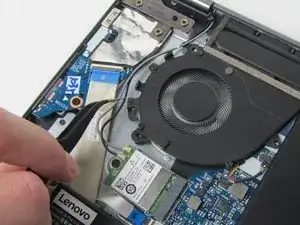

Use tweezers to unwind the black and gray wires from the clips that are holding them onto the left side fan.
-
-
-

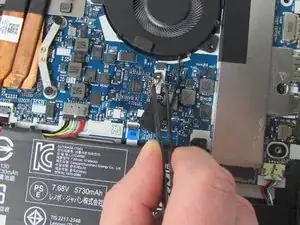

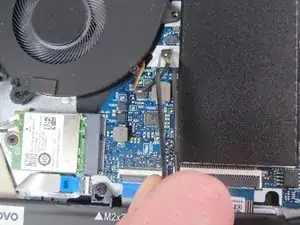

Lift the black piece of cloth tape that secures the right side fan wires to the circuit board.
-
To reassemble your device, follow these instructions in reverse order.
