Lenovo Ideapad 320-17IKB Ports Replacement

Geschrieben von: a1235
  • Kommentare: 2
Lenovo Ideapad 320-17IKB Ports Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

35 - 45 Minuten

Einleitung

Use this guide to replace and access a faulty port in your Lenovo IdeaPad 320-17IKB.

The several different ports that this laptop has allows the user to access and connect to other external devices or charge other devices; such as HDMI ports, power connector port, Ethernet port, SD port, CD port, USB ports, and the headphone jack.

If you aren’t able to connect to a port or if the port needs to be cleaned, you may need to consider cleaning or replacing the port. Follow the instructions in this guide to access the component.

Before using this guide, check out the Lenovo IdeaPad 320-17IKB Troubleshooting. Be cautious when lifting the back panel off the laptop to not damage any hardware.

Be sure to back up your hard drive before opening your laptop so that you don’t lose any data while you’re doing the replacement. Make sure to power off your laptop completely and disconnect from any external power source prior to beginning the process.

  1. qPd2DtrQgRKQKb1t

    • Turn off and unplug the computer.

    • Flip the laptop over so that the back panel is facing upwards.

  2. 3TCtqgvmXOsIcHPa
    3TCtqgvmXOsIcHPa
    Dn3la3RNcWOwssoE

    • Remove fourteen 7mm Phillips #00 screws from the back panel.

    Philips 0 or Philips 1 works better.

    Thorbjørn Kühl -

  3. cETjVT2ijDGZjOnR

    • Carefully remove the optical drive by pulling the bezel away from the laptop.

  4. FarGMLbgqCstKtah
    FarGMLbgqCstKtah
    O1X1ANpWQbmUOr25

    • Use your fingers or an opening tool to gently remove the back panel from the bottom of the laptop.

    • Lay both sides of the laptop next to each other.

  5. Gncn2rB4H3IAOp3J
    Gncn2rB4H3IAOp3J
    WNAVPm1UOoGw5mVw

    • Remove five 7mm Phillips #0 screws from the battery holder.

  6. ox5ekt26Dux4BYHm
    ox5ekt26Dux4BYHm
    1NfNYE2ZfrvTyJr6

    • Pinch the connecting cord with one hand and pry the battery connector with the other hand, while gently pulling the connector straight out and towards the bottom edge of the base.

    • When removing the battery, use care to keep it flat and do not open the battery because it can result in fire or explosion.

  7. ENoigThuOjCYVdRO
    ENoigThuOjCYVdRO
    YcH6McNBZHUONhRg

    • Remove five 7mm Phillips #00 screws from the cooling fan.

  8. MnkbuQESp1hwUKBq
    MnkbuQESp1hwUKBq
    xRYfaknwH2oPUCDS
    HtKgBNRJnoVsWO32

    • Gently lift the fan assembly out of the laptop.

    • Gently remove the connecting wires from the exterior of the fan by slowly "weaving" the cord between the ridges of the fan.

  9. FKaUeAIctOnAIZVX
    FKaUeAIctOnAIZVX
    2gSLK5NJFRGeWevA
    maDLjfaSEiiGOl6w

    • Gently lift and remove the heat sink and set it aside.

  10. HnKfNBSaKRKYhWNX
    HnKfNBSaKRKYhWNX
    vKhQptpEMKUblHwt
    BYcLMNKW1aWGVieo

    • Remove the single 3mm Phillips #0 screw from the Wi-Fi card.

    • Pull the Wi-Fi card straight out of the laptop.

  11. pGIVo3agAZr61Dxl
    pGIVo3agAZr61Dxl
    jZZWdLUvy1YYG1MC
    2sLGEVxsM6uuLtOC

    • Gently pull the blue ribbon marked with "MB" connectors.

    • Gently remove the other connectors in the picture by pulling them straight out.

    • Blue connectors encased in a black holder may require tweezers to unclasp the connector for removal.

  12. MhSThBhsdcsYmYD1
    MhSThBhsdcsYmYD1
    32VLj5DHqtHyDORF
    LN5HjecCytIPtmna

    • Using a Jimmy, gently pry the motherboard from under the corner screw holder with one hand and pull the motherboard out with the other.

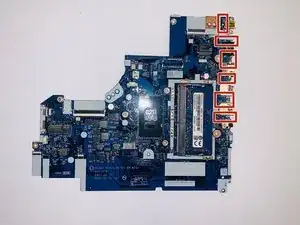

  13. rwOSV1xxxVFtlWxH

    • Locate the terminals that need to be removed.

    • Ports: 2 USB 3.0 1, USB-Type C, HDMI 4-in-1 card reader (SD, SDHC, SDXC, MMC), RJ-45 LAN

    • Clean the terminals with isopropyl alcohol and an old tooth brush.

    • Follow iFixit's guide for soldering instructions.

    • Be careful when using a soldering and de-soldering device as it is very hot.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

a1235

Mitglied seit: 02/09/19

590 Reputation

Ein Kommentar

Why do I need to remove the motherboard before soldering the ports?

Nuchem Weinstock -
