Lenovo ThinkPad T460 Smart Card Reader Cable Replacement

Geschrieben von: Kristen Gismondi

Kommentare: 0

Lenovo ThinkPad T460 Smart Card Reader Cable Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

30 - 35 Minuten

Einleitung

Use this guide to replace the smart card reader cable in a Lenovo ThinkPad T460.

The smart card reader’s job is to read a smart card, which is a device used to store data and provide login authentication. The smart card reader cable connects the smart card to the laptop’s motherboard.

If you cannot retrieve data or log in to your laptop using a smart card, or if you are experiencing error messages when using a smart card and have ruled out the smart card reader itself as the issue, you may need to replace your laptop’s smart card reader cable.

Make sure to disable the internal battery, power down your device, and disconnect from any external power sources before you begin.

Werkzeuge

Schritt 1

Before you begin this guide, make sure to disable the internal battery, power down your device, and disconnect from any external power sources.
Place the laptop so that the bottom is facing upwards.
Slide the latch on the left side of the battery to the left until it clicks in place.

Schritt 2

Slide the latch on the right side of the battery to the right and hold it in place with your thumb.
Use your other hand to slide the battery towards the back of the laptop.
Lift the battery up and away from the laptop.

Schritt 3

Loosen the eight captive screws in the bottom cover using a Phillips #1 screwdriver.

Schritt 4

Insert the flat end of a spudger in between the bottom cover and the rest of the laptop, starting in the lower left corner.
Pry the lower left corner of the bottom cover up by a few millimeters.
Slide the spudger along the bottom of the laptop to release the clips until you reach the lower right corner.
You may hear some snapping noises as the clips are released.

Schritt 5

Slide the spudger along the right and top sides of the bottom cover to release the clips.
You may hear some snapping noises as the clips are released.
Potential for device damage: If the clips do not release easily, check to ensure that the captive screws are fully loosened. Forcing the clips to detach can crack the bottom cover.

Schritt 6

Use the spudger to pry the upper left corner up by a few millimeters.
Pry up the sections of the bottom cover with printed logos of the ports.
Potential for device damage: Prying inside the ports themselves can damage your laptop. Be sure to only pry up on the sections of the cover that extend past the ports.

Schritt 7

Use the spudger to pry up the bottom cover in the lower portion of the external battery compartment by a few millimeters.

Schritt 8

Use both hands to lift the bottom cover up and away from the laptop.

Schritt 9

Use a pair of blunt nose tweezers to pull the black connector out of its socket.
This connector may be difficult to remove. You can use a pair of tweezers to gently rock the connector back and forth until it is free from the socket.

Schritt 10

Remove the three 3.7 mm screws from the internal battery using a Phillips #1 screwdriver.

Schritt 11

Use your hands to lift the battery up and away from the laptop.

Schritt 12

Remove two 5 mm screws from the speaker in the lower right-hand corner using a Phillips #1 screwdriver.

Schritt 13

Use your hand to lift the speaker out of its compartment.
The speaker's wire will still be secured to the laptop; it is not necessary to remove the wire.

Schritt 14

Use your fingers to lift the black flap up from the smart card reader cable connector.

Schritt 15

Use the pointed end of a spudger to open the white clip on the smart card reader connector.

Schritt 16

Use a pair of blunt nose tweezers to slide the cable out of the connector on the smart card reader.

Schritt 17

Remove two 3.8 mm screws from the smart card reader bracket using a Phillips #1 screwdriver.

Schritt 18

Use your fingers to lift the smart card reader bracket up and away from the laptop.

Schritt 19

Remove two 3.7 mm screws from the smart card reader using a Phillips #1 screwdriver.

Schritt 20

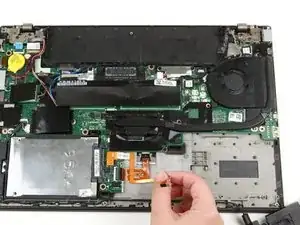

Use the flat end of a spudger to pry the smart card reader up by a few millimeters.

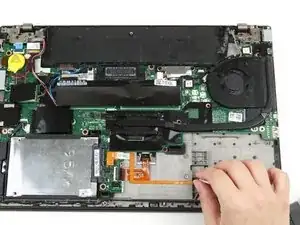

Use your other hand to lift the smart card reader up and away from the laptop.
