Lenovo Thinkpad T450s RAM Replacement

Geschrieben von: Hayden Hausman
  • Kommentare: 2
Lenovo Thinkpad T450s RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

5 Minuten

Einleitung

If you are looking to replace/upgrade the RAM on your device follow this guide for step by step instructions on how to do so.

  1. N12QED2VZyyJLHCp
    N12QED2VZyyJLHCp
    ulgl5imNIyhxkJuX

    • Turn off device before starting

    • Flip the laptop upside down so you have access to the battery.

  2. L5ruUkKnHhTZjUUY

    • Slide lock button 1 to the unlock position and gently slide away from your body.

  3. aaVRiLamEyYnmyN5
    aaVRiLamEyYnmyN5
    HEmuR1IUTO1UYbuS

    • Slide lock button 2 to the unlock position and continue gently sliding until the battery is removed.

  4. jCrhgV5BCIAqu5ZN
    jCrhgV5BCIAqu5ZN
    ycuaxXWt2rpy1Y1f
    yLtT3dIJ5TKfycCM

    • Flip the device over and lay it down with the underside facing upwards.

    • Unscrew all 8 screws. While they should not come out completely, in some cases, the plastic retaining washers may come off of one or more of the screws, allowing them to come out completely. - should this happen, look for a loose, tiny black plastic washer once the case is open. It's possible, in some cases, to reattach the retaining washer.

  5. HPbXs5FHJ3p3qRXH
    HPbXs5FHJ3p3qRXH
    qZH1OuYwZXVqenMR

    • Pry the bottom from the computer until it pops out.

    • In some cases, the vented side of the case may cling to the heat sink; appears to be adhesive. Take care when separating.

    You don’t unscrew 8th screw a bit to the left from center of base where the battery sits?

    Thank you.

    Robert -

  6. Sb4QcEXmCiENnWal
    Sb4QcEXmCiENnWal
    5MkvTW3ePX4svwOe
    wbIiLH1l1UGOTknO

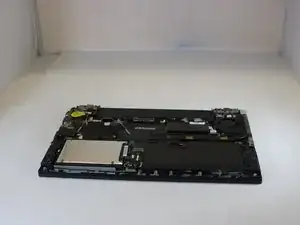

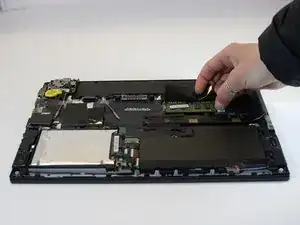

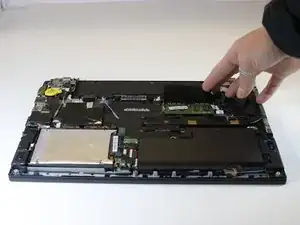

    • Pull one side of the prong that is holding the RAM in place

  7. 6MMLVGftKDeqCKM4

    • Pull the other side prong until the RAM pops up.

  8. B15vtjdPasyHr1EW
    B15vtjdPasyHr1EW
    MWayy1vbHCQJxukL

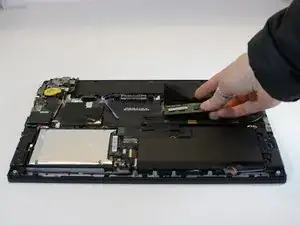

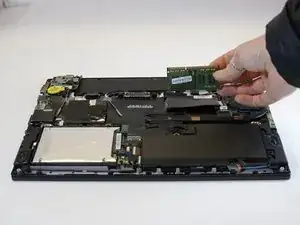

    • Pull the RAM out of the device

Abschluss

To reassemble your device, follow these instructions in reverse order.
