Lenovo Yoga 900-13ISK Display Replacement

Geschrieben von: Austin Blakely
  • Kommentare: 0
Lenovo Yoga 900-13ISK Display Replacement

Schwierigkeitsgrad

Difficult

Schritte

21

Zeitaufwand

1 - 2 Stunden

Einleitung

This guide will show you how to replace the display in the Lenovo Yoga 900-13ISK. The display on the Lenovo Yoga 900 has full touch capabilities, allowing the screen to be used as a tablet. However, the digitizer is integrated into the display and bezel, so replacing any one of these three components individually will require specialized tools and a lot of patience. Instead, this guide will focus on replacing the display, touch control board, screen/bezel, and digitizer as a single unit.

Note that the boards and cable connectors inside of the display assembly are extremely delicate, and patience should be exercised when working inside. To get inside the display assembly also requires you to cut away adhesive strips holding the assembly together. To ensure that your new display adheres to the back panel properly, you may want to clean and remove any old adhesive from the device and replace with some fresh adhesive strips. However, all of this can be circumvented by replacing the display assembly as a single unit instead.

If your Lenovo Yoga 900 has a cracked, broken, glitchy, or otherwise problematic display, or if it has lost its touchscreen capabilities, replacing it should return your computer to working condition.

Be sure to unplug and completely turn off your device before you start working.

  1. iPv1VlyTxQxoxqa5
    iPv1VlyTxQxoxqa5
    YlbrhAqDnTIYRgTM

    • Using a T5 Torx screwdriver, remove the ten 5.5 mm screws from the back case of the laptop.

  2. WrCrfbcYMa2QYBT2
    WrCrfbcYMa2QYBT2
    1hYBLMYwmAkKeVdk
    WDk2DgNOfV1YrZSE

    • Use a spudger to pry open the back case at the hinges of the laptop.

    • There are plastic clips around the perimeter of the case holding down the back cover. These will need to be popped off as the cover is removed.

    • Use your fingers to completely pop off the back cover.

  3. QkgyYHZ1WljCk3P3
    QkgyYHZ1WljCk3P3
    Dbetc2r2Cr25kmeS
    OA1xH5HoUihZRLPW

    • Remove the five 3.6 mm screws from the battery with a Phillips #00 screwdriver.

  4. k3RABbhhBKAQO1s3
    k3RABbhhBKAQO1s3
    6MfLagnBnV4YTOso
    nftRq1KFHOCYplHV

    • Grab the bottom corners of the battery and gently pull the battery until the cable disconnects from the connector on the motherboard.

    • While reassembling, use a plastic spudger to push the battery cable into the connector on the underside of the motherboard. This will be easier to do before the screws are replaced.

  5. gmKKJjXftoRvBsgL
    gmKKJjXftoRvBsgL
    OLjETtD6ln2iMrbN
    RgyLvePQsoBOOJKD

    • Remove the ten 3.6 mm screws from the hinge bracket with a Phillips #00 screwdriver.

  6. 6qNPfuLRpkwNS56U
    6qNPfuLRpkwNS56U
    nQqDWop3NfoS6Xym
    FU6VHwaCmfOwEcQx

    • Use the pointed end of a spudger to lift the hinged locking flap of the display ZIF connector.

  7. gdMehidtVAUmKlvT
    gdMehidtVAUmKlvT
    SyxoUiWeyirdNVWA

    • Pull out the display cable with a pair of blunt nose tweezers.

  8. To11u44fJTXcIO4I
    To11u44fJTXcIO4I
    y3TkGGjm21KVTknd
    OvIbYNI1whZDxOff

    • Open the laptop to a 45° angle, then close the laptop.

    • This raises the hinge, which will stay open as the bottom case is lowered.

  9. CfCCR5f2bASYi1UZ
    CfCCR5f2bASYi1UZ
    vJkYXiVlGFgGgLqA
    4pMIG35vyQFEq5Rs

    • Slide the bottom case away from the hinge.

    • If the hinge is catching on the case, either go back to the previous step and open the case a bit more, or manually open the hinge with your fingers.

  10. SauIWYOEkmZZSaEG

    • Apply heat along the bottom and left edges of the screen, either with a heat gun or iOpener.

    • Check out our iOpener Instructions if you need help!

  11. nlsREYQ1OdEaQ6fb
    nlsREYQ1OdEaQ6fb
    pQNkSJDLSrnS1dtL

    • Insert an opening pick into the corner of the screen and slide it around slightly to create an opening.

  12. aLai4MhWAKWnJcNy
    aLai4MhWAKWnJcNy
    1y1bG5LIIYDgQnU4
    c2h3jiW2IkStAUCl

    • Insert a second opening pick and slide it along the side of the display, cutting away the adhesive.

  13. WCAFALE41HwuyXNE

    • Use a heat gun or iOpener to apply heat to the top and side edge that have not yet been opened.

  14. o1MDvo52XRssRCL2
    o1MDvo52XRssRCL2
    etImlVpjmKKoIp6A
    4XxhPK24qL2CAwCo

    • Continue cutting away the adhesive on the top and side edges of the display.

  15. 5gMHBQFYdlG41sgd
    5gMHBQFYdlG41sgd
    1Gl3iGBFvTF21qb1
    JCvuPGWj5XQHEGeA

    • Open the display casing along the top edge.

  16. YTqUgpBX4gPZTiyp
    YTqUgpBX4gPZTiyp
    hpZZlKkvXovnDHug
    Zfkdpofr4SAEEjTd

    • Pull the display cable out from the hinge mechanism.

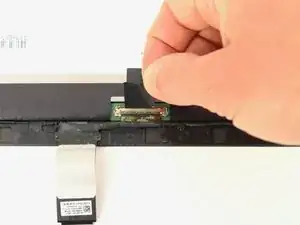

  17. E4aMFQWxtIJVEV2u
    E4aMFQWxtIJVEV2u
    To6NPOUm2qFh1EPw
    gJucgehPqVgfvPt3

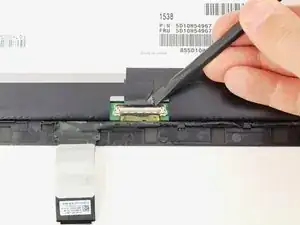

    • Peel up the small strip of tape wrapped around the locking bar of the display cable connector.

  18. 4yVRSspSyVFVcfde
    4yVRSspSyVFVcfde
    OJ3qVTXjFiYwxrya

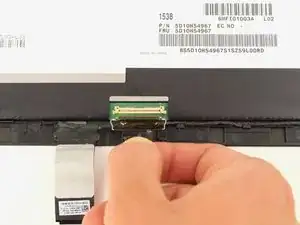

    • Pull the tape downward to unplug the display cable.

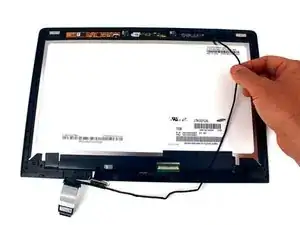

  19. XNbH4rI5mqQLWIC1
    XNbH4rI5mqQLWIC1
    MOYVJSKafBB3GOta
    wgIXwdXKvl3tFN2M

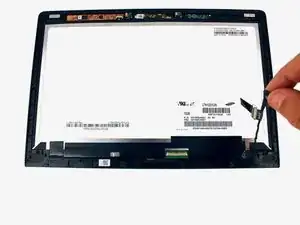

    • Gently pull the cable out from the routing to free it from the hooks along the edge of the screen.

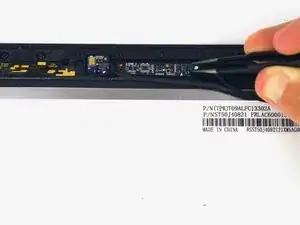

  20. FCUBT4EA5gfGHBjf
    FCUBT4EA5gfGHBjf
    RmDrRJbOjxXKybHD
    tgy5SFfj3l5kErXe

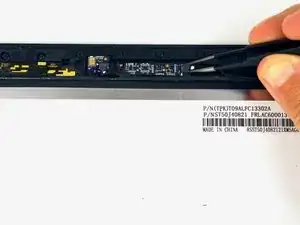

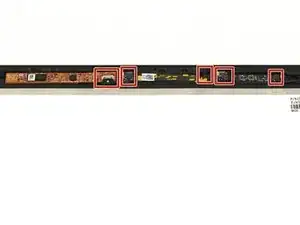

    • Gently unplug the five cables on the control boards on the top edge of the display with a pair of blunt nose tweezers.

    • Be extremely cautious as you handle these cables, as they are easily broken. If the pair of tweezers doesn't work for you, you can gently wiggle the cables back and forth with your fingers to ease them out from the connectors.

    • Remove the display cable.

  21. MBjPd26OxwfcpPjM
    MBjPd26OxwfcpPjM
    EPrcuWAHHaJ5TADb
    WUumI3UQVbyO6TAk

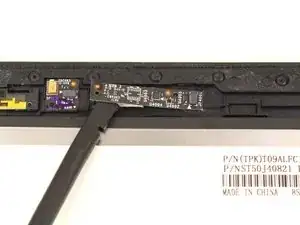

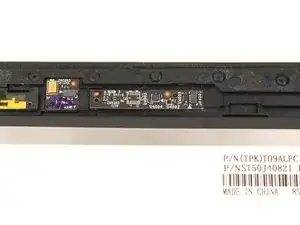

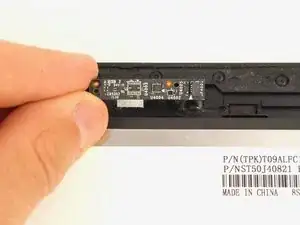

    • Gently pry up any of the boards that are missing from your new display with a nylon spudger and put them in the same place on the new display.

    • Emphasis on the 'gently'—we had two of these boards snap or bend significantly while trying to get them off. Be particularly cautious when prying up the yellow-accented webcam board in the center, as the adhesive is quite strong.

    • The touch control board on the far left is wired into the digitizer and cannot be removed. Your new display should come with this board already in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
