LexiBook Tablet One LCD / Digitizer Replacement

First the case must be opened. Insert the blue plastic opening tool where the two casings meet. Pry up until you hear a clip pop and then carefully move around the device. Do this until the front and back casing are completely separate from one another.

Carefully remove the speaker by inserting the spudger between the case and the speaker. Pry upwards until the speaker comes out. Set the speaker to the side.

Use the spudger to repeatedly gouge between the battery and LCD. Work around the battery until it breaks free.

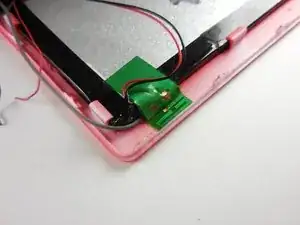

The tape around the battery's circuit board is extremely thorough. There are 2 pieces of tape, on folded over the side and another wrapped around the circuit board. Simply peel both off.

Now that the battery is pry'd free and the tape is removed, the wires should be able to move freely. Give yourself as much room as you need, and solder off the connections on the motherboard.

Remove the tape from these ribbon cables and their clips.

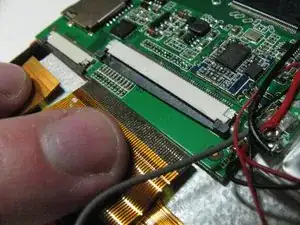

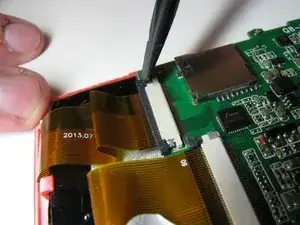

Remove the LCD and Digitizer ribbon cables from the motherboard by holding the clips open and pulling the ribbons out.

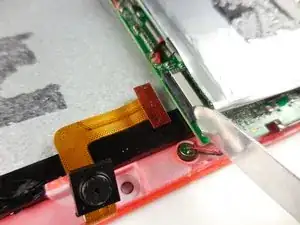

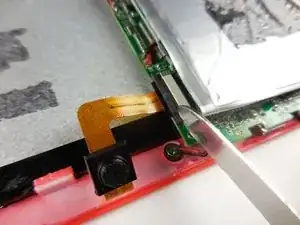

Remove the Camera Ribbon Cable, by holding the clip open and pulling the camera out.

Using a screwdriver, unscrew the 3 screws which hold the motherboard on the case.

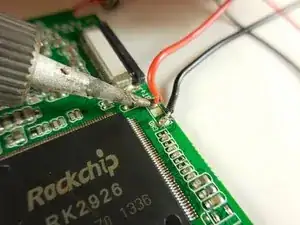

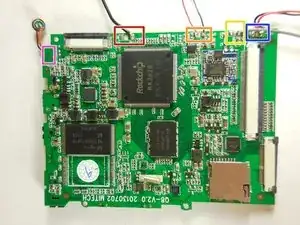

You must now use a soldering kit to remove the connections to the motherboard.

The battery wires. (If you had not finished this in an earlier step).

The Speaker Wires.

The Ground.

The LCD wires.

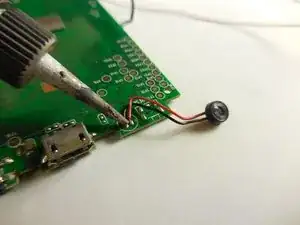

Finally, the microphone, which lies under the board.

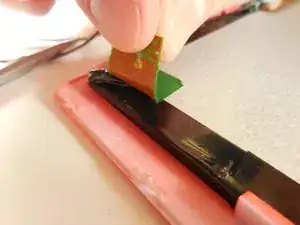

You will see green grounding tape on the bottom left-hand corner of the LCD. Take a spudger and place it between the casing and the tape. Slowly pry up until you can peel the tape back.

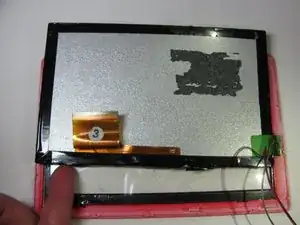

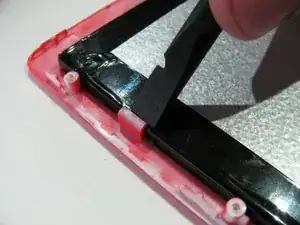

Remove the LCD from the clips on one side. Pressing sideways, slide the LCD out.

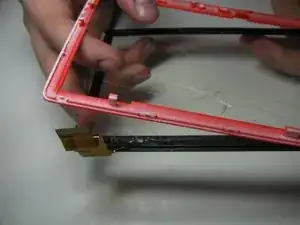

In order to remove the digitizer simply push it out of the casing.
