Lexibook Junior Tablet Headphone Jack Replacement

With the device screen face down, use the metal spudger to remove the small rubber circles on all four corners of the device. The screws should now be revealed.

Using the metal spudger, pry open the small, long rubber rectangle on the back of the device to reveal more screws.

Using a Phillips #00 screwdriver, remove the four 6.8mm screws from the four corners of the device.

Using the same screwdriver, remove the three screws that were behind the rubber rectangle. These screws do not come out of the device.

Use the plastic opening tool to gently pry open the back panel of the tablet.

Use the nylon spudger to gently pry under the battery to remove it.

Use a soldering iron to remove the battery from the motherboard safely.

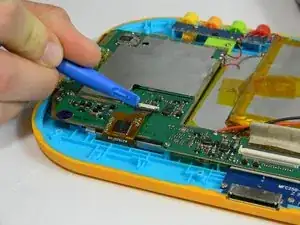

Using the plastic opening tool, gently push the two small, black and white switches out in the direction of the ribbon wires.

Slowly pull the ribbon wire out of the switch to free it.

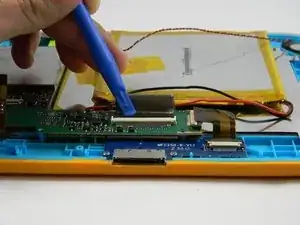

Push the larger black and white strip leading to a ribbon wire upward using the plastic opening tool.

Carefully pull the ribbon wire out of the switch

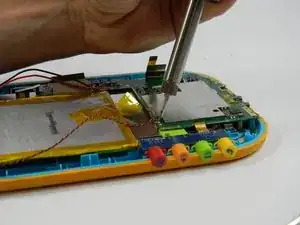

Unscrew the five 4 mm screws around the perimeter of the motherboard using the ph00 size phillips head screwdriver.

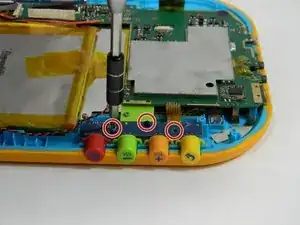

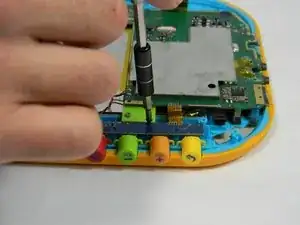

Remove the button board by unscrewing two more 4 mm screws and one 6.5 mm screw

Solder off connections from the wire connecting the motherboard to the speaker.

Peel back the yellow film on top of the headphone jack.

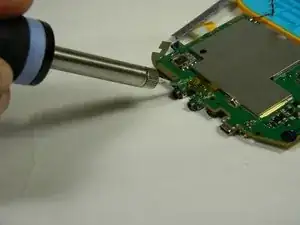

Solder off the connections to the headphone jack.
