Learn how to disassemble the Logitech Harmony Smart Control hub, remove a burned out or defective light bulb or bulb(s), and replace it with new one(s).
This repair requires soldering. View the soldering guide at:
Werkzeuge
Ersatzteile
-
-

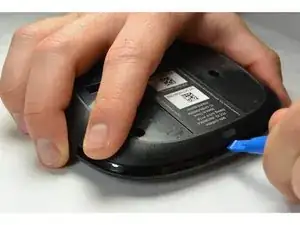

Use a spudger to lift up one of the rubber pads on the bottom of the hub.
-

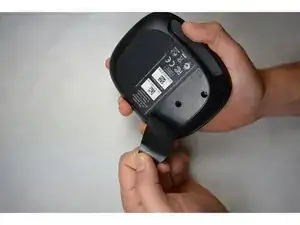

Pull back the rubber pad and remove it. This will expose the screws on the bottom of the device.
-
Repeat for the second rubber pad.
-
-
-

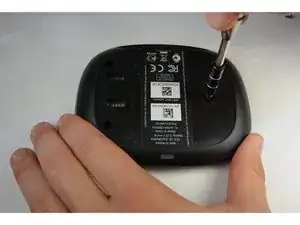

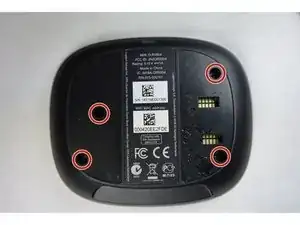

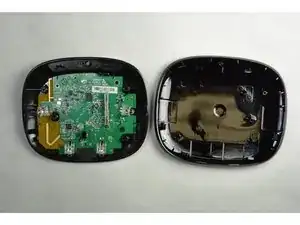

Use a PH00 screwdriver bit to remove the four 6mm Phillips screws on the bottom of the device.
-
-
-

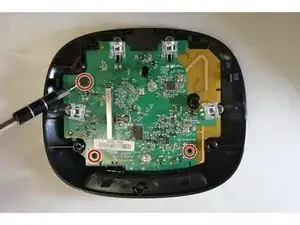

Use the PH00 screwdriver bit to unscrew the three 4mm Phillips screws on the control board.
-
-
-

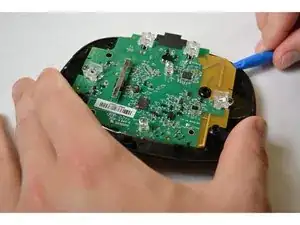

Place the end of the opening tool under the yellow corner of the circuit board as shown.
-
Gently push upward to pry the board from its housing.
-
-
-

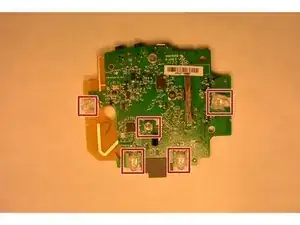

Determine which of the five bulbs are defective.
-

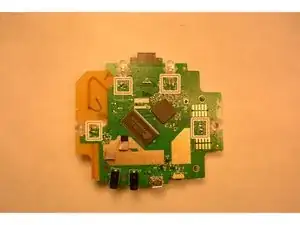

Turn the board over to expose the bulb solder.
-

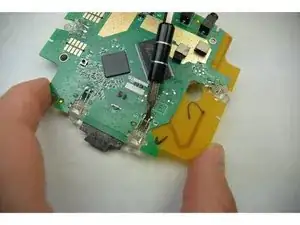

Using a soldering iron, remove the solder and bulb. Replace with a new bulb and re-solder.
-
To reassemble your device, follow these instructions in reverse order.
