MSI GP62MVR 6RF Leopard Pro LCD Screen Replacement

Geschrieben von: Jordan Buck

Kommentare: 3

MSI GP62MVR 6RF Leopard Pro LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

20 - 30 Minuten

Einleitung

This guide demonstrates how to replace the LCD screen in the MSI GP62MVR 6RF Leopard Pro laptop. It is a moderately difficult process with no special skills required. Avoid touching the circuitry when the screen is off to avoid short-circuiting components or shocking yourself. If the screen has odd pixels, discolored or incorrect textures, or fails to display anything at all, then the LCD screen will need to be replaced. Follow this guide to change the LCD screen in a MSI GP62MVR 6RF Leopard Pro.

Werkzeuge

Schritt 1

NXPYTCymSAiclNGl

NXPYTCymSAiclNGl

KOkUo1CrGOqxwgQc

Using the Jimmy tool, pry the front cover off at the seam.
The Jimmy tool is the utensil in the first picture in the user's hand.

Schritt 2

IiAPInmSSPV4HKIp

IiAPInmSSPV4HKIp

dVXQDqks6aZAEFMS

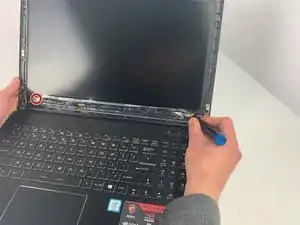

Remove the four 2 mm screws on the bottom and top corners of the screen using a Phillips #0 screwdriver.

Schritt 3

xHRFypeIjuAlwpIe

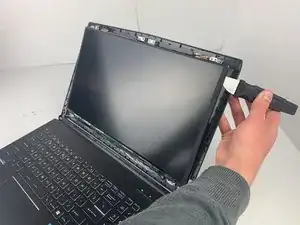

Using the Jimmy, pry off the unscrewed LCD display.
Make sure the black adhesive is out of the way.
Don't pull the screen completely off, as the screen will still be attached.

Schritt 4

SNHasFcwL4FVnIew

SNHasFcwL4FVnIew

GUV3bWOLWYOYWyqN

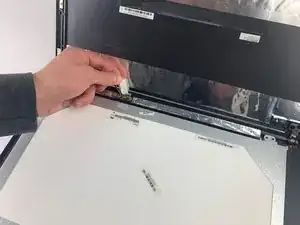

Remove the ribbon cable by pulling on the bar code tab.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jordan Buck

Mitglied seit: 16/01/20

382 Reputation

3 Kommentare

Hey Jordan, when reassembling the front cover (which in my case, a GP63 Leopard 8RE, is glued at the bottom) what type of glue should be used? Thanks

Jaime Blasco - 28/08/20

Hi Jaime, two part expoxy (Alraldite) glue should work, otherwise 3M double-sided adhesive tape would work as well.

Jordan Buck - 29/08/20

Hi Jordan,

If the screen is damaged due to the cover itself being bent, do you have any advice?
