Einleitung
Hier wird der Austausch eines beschädigten I/O Board Flachbandkabels gezeigt.
Ersatzteile
-
-
Entferne folgende Schrauben:
-
Zwei 8mm 5-point Pentalobe Schrauben
-
Acht 2,5 mm 5-point Pentalobe Schrauben
-
-
-
Zwänge deine Finger zwischen Display und Gehäuseunterteil und ziehe nach oben, damit es sich vom Air löst.
-
-
-
Hebele mit dem flachen Ende eines Spudgers die beiden kurzen Seiten des Akkusteckers nach oben, um ihn von seinem Anschluss auf dem Logic Board zu lösen.
-
Biege das Akkukabel etwas weg vom Logic Board, so dass sich der Stecker nicht wieder versehentlich mit dem Anschluss verbinden kann.
-
-
-

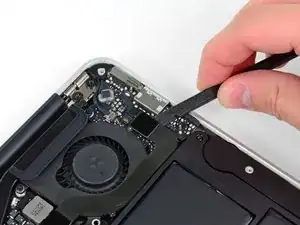

Heble den Stecker am I/O Board Flachbandkabel mit dem flachen Ende des Spudgers nach oben aus seinem Anschluss auf dem I/O Board.
-
-
-
Der nachfolgende Stecker hat einen besonders tiefen Anschluss. Sei beim Lösen vorsichtig.
-

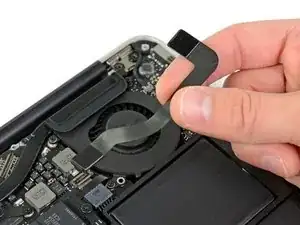

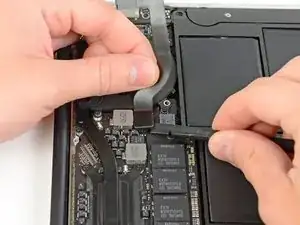

Ziehe das I/O Board Kabel vorsichtig nahe am Anschluss auf dem Logic Board hoch und hebele mit der Spudgerspitze abwechselnd auf beiden Seiten des Steckers, um ihn so "herauswandern" zu lassen.
-

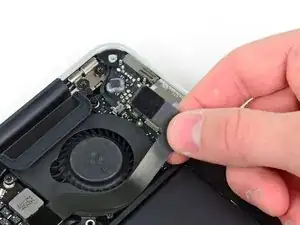

Entferne das I/O Board Kabel.
-
Um dein Gerät wieder zusammenzusetzen, folge den Schritten in umgekehrter Reihenfolge.
