Wie man eine rundgedrehte Schraube entfernt

Geschrieben von: Jake Devincenzi
  • Kommentare: 83
Wie man eine rundgedrehte Schraube entfernt

Schwierigkeitsgrad

Mittel

Schritte

7

Zeitaufwand

5 - 45 Minuten

Einleitung

Rundgedrehte Schauben sind ein Alptraum für jeden Reparatur-Freak. Manche Schrauben wollen einfach nicht raus kommen. Das Frustrationslevel steigt und bald ist aus dem "+" ein "O" geworden. Aber keine Angst, wir können dir weiterhelfen. Diese Anleitung zeigt dir, wie du mit einem Rotationswerkzeug eine rundgedrehte Schraube entfernen kannst. Dazu musst du einen schmalen Schlitz in den Schraubenkopf schneiden, so dass du die Schraube mit einem Flachkopfschraubendreher entfernen kannst.

Technik-Anleitungen:

  1. Verschiedene Schraubendreher
  2. Gummiband
  3. Schraubenlösende Zange
  4. Kleber
  5. Rotationswerkzeug

Trage immer eine Schutzbrille wenn du ein Rotationswerkzeug benutzt, um Verletzungen durch Schmutzteilchen oder Funken zu vermeiden.

  1. V6MTNFApWDrKHgNg

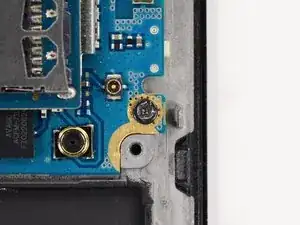

    • Deine Schraube ist rundgedreht und der Schraubendreher macht nicht mehr das, was er soll. Bevor du mit schwerem Geschütz auffährst, versuche erstmal folgendes:

    • Versuch dein Glück mit unterschiedlichen Schraubendrehern. Nimm zuerst welche, die leicht größere oder kleinere Köpfe haben, dann einen Flachkopfschraubendreher, um zu sehen, ob er irgendwo an der rundgedrehten Schraube greift.

    • Wenn das Bit die Schraube nicht sofort greift, versuch es nicht weiter. Ansonsten riskierst du es, die Schraube weiter zu beschädigen.

    • Wenn das funktioniert, herzlichen Glückwunsch! Deine Schraube ist frei.

  2. oFtcMtdYHt1vjLou
    oFtcMtdYHt1vjLou
    FaeEb6oX1RQRbpjR
    PjgUmyMDCfyMWYBy

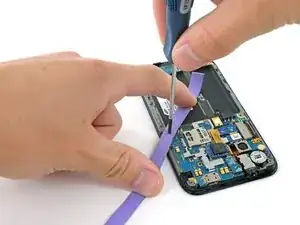

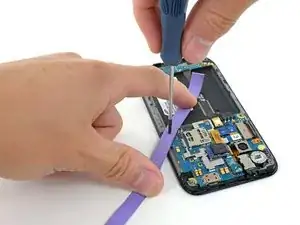

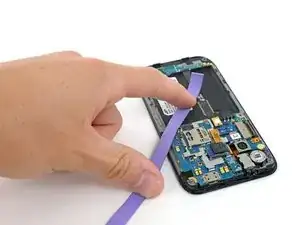

    • Ein Gummiband kann für zusätzlichen Grip sorgen.

    • Lege ein Gummiband über die rundgedrehte Schraube.

    • Führe einen passenden Schraubendreher ein und drehe ihn probeweise.

    This didn’t work since I used a small rubber band. I’m trying to remove the right screw from the optical drive. It’s already stripped and I’m planning on using the super glue which I’m deeply unsure of doing. I was thinking about using the #00 Philip screwdriver to add the super glue on. And I’m not sure if that worked for anyone especially if it didn’t snapped off. Any answers?

    Kareem Caldwell -

    This part should be removed from the guide - it doesn’t work at all.

    Mac -

    Instead of a rubber band I used a thin piece of fabric/soft cloth and this worked well. I’ve tried the rubber band in the past with no luck but fabric worked for me on a stripped #00 phillips

    cam2000deluxe -

    thanks for the tip, i was really struggling here

    just some mango -

  3. MwGbj4fiN6k62vcQ
    MwGbj4fiN6k62vcQ
    wsvJRMkHTiXA6Gs2

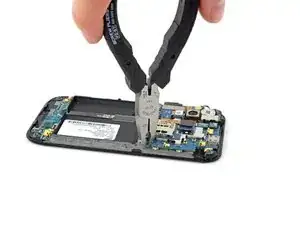

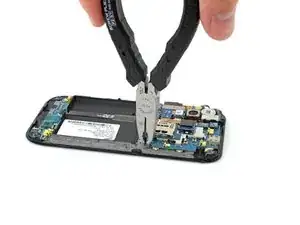

    • Falls der Schraubenkopf zugänglich ist, kannst es mit einer schraubenlösenden Zange versuchen. Wenn du die Schraube damit gut packen kannst, drehe die Schraubenausdrehzange vorsichtig. Die Schraube sollte sich dabei mitdrehen.

    • Sobald die Schraube etwas lose ist, bekommst du sie wahrscheinlich mithilfe eines Schraubendrehers vollständig heraus.

    You can make your own screw extracting pliers using a file and old pair of regular pliers.

    Alexander Walker -

  4. TLRvyaXx1o2XtAA5
    TLRvyaXx1o2XtAA5
    p1aFCPYmJKvNUMWF
    BuAB56HRAXZPPsIa

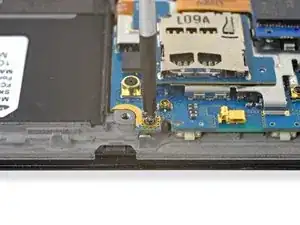

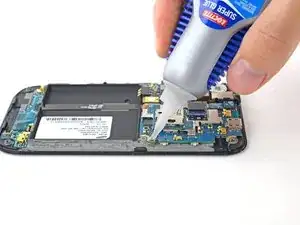

    • Steckt die Schraube immer noch fest? Versuche, etwas starken Kleber oben auf die Schraube zu geben.

    • Setze deinen Schraubendreher in den Schraubenkopf und lasse den Kleber antrocknen.

    • Drehe den Schraubendreher energisch und mit nach unten gerichtetem Druck, um die Schraube zu entfernen.

    • Vergiss nicht, die Kleberreste von der Spitze deines Schraubendrehers zu entfernen.

    You might want to mention to spend the extra buck and get the gel superglue. It's way easier to control...

    lkmemphis -

    Also might suggest applying the tiny ammount of super glue to the tool tip not the screw. If you accidently squeeze out too much the overflow can be cleaned off the tool and the glue reapplied much easier than it can be removed from the screw and the surrounding areas of the device. Alternately the surrounding areas can be masked from excess glue with a bit of transparent tape.

    James Todd -

    How would you remove the screw from the driver?

    William Sanborn -

    How do I clean of screw driver from the super glue?

    And how do I prevent or avoid that situation the next time?

    Gerald -

    Please use the suggestions in the previous comments to improve this guide: add gel super glue to tip of driver and give instructions on how to remove screw from driver and clean the tip of driver.

    Pauline Guillermo -

    Can we reuse the screw afterwards? I have my macbook pro 2.9 mm T3 Torx and 1.7 mm T3 Torx screws stuck but couldn’t find those screws to buy…

    Camille Le Men -

    If the screw is stripped, why would you reuse it? You’ll have the same problem when trying to repair the Mac in the future if you need to repair it again. Don’t they have those screws available as a kit (with other screws) on iFixit?

    Mac -

    Screw it!!!!

    Gabe W -

    Long story short, laptop has been overheating and I thought it was a software issue, for months. I've tried everything. I come home after a stressful week, laptop crashed during a fresh windows reinstall. then I realized it has to be a bad part.

    So I open it up and burn my finger on the heatsink. "Eureka!"

    Take out heatsink and replace with same part that I already have. 4 screws, "finally a win!" I fixed Apache Helicopters for years, 4 screws, EASY! no prob. the last one strips, I want to burn the continent in my rage. I find this article and see "Try Super glue" chuckle to myself when I noticed my favorite kind of super glue right in front of me. "It must be fate! I'll likely to ruin the laptop, then I can justifiably smash it and get a new one."

    Tiny dab of glue on the screw, place in the tiny screw bit and wait till it dries.

    After 3 hours of trying not to notice the screw bit standing proudly, I gently yet firmly grasp it and give it a slow turn.

    It worked. I cried and called the wife at work

    atreestump -

  5. Tef1h3PCbFZfHnvJ

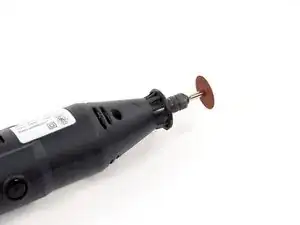

    • Wenn du die Schraube mit den vorangegangen Methoden nicht entfernen konntest, benutze ein Rotationswerkzeug.

    • Benutze eine dünne Schleif- oder Trennscheibe . Bevor du loslegst, stelle sicher, dass die Scheibe sicher im Halter montiert ist

    • Trage immer eine Schutzbrille wenn du ein Rotationswerkzeug benutzt, um Verletzungen durch Schmutzteilchen oder Funken zu vermeiden.

    • Sichere empfindliche Bauteile in der Nähe der Schraube die du bearbeiten möchtest vor Funkenflug.

    Mask the area so the small metal particles don't create a short. Even still use a few blasts of can'ed air to blow any junk away.

    Dan -

    Likely the screw shavings are magnetic, so passing a powerful magnet may help collecting the screw “dust”. Especially important if the circuit board is not con formally coated as this “dust” is definitely conductive.

    Larry Jay -

    Was going to post the same comment- absolutely agree that you should protect the device from conducting dust- could easily get lodged between IC pins, especially as magentised through grinding and would stick together in a sort of string.

    I. Margaronis -

    If you're worried about conductive dust, then put the phone on its side and blast it with alcohol and a makeup brush.

    Alexander Walker -

    You should take the board out of the enclosure before you use a rotary tool on the device.

    Mac -

    You should take the board out of the enclosure before you use a rotary tool on the device.

    Mac - 12/16/2020

    Great idea, Mac. Unfortunately, I can’t get this %#*@ stripped screw out that’s securing the board to the enclosure.

    Cunning Stunt -

    Do you have a recommendation for the tool and size of the disk?

    Blaise L. -

  6. JbdZJyNZgtsAFyq4
    JbdZJyNZgtsAFyq4
    mOpMJcaWsVS6qQk2

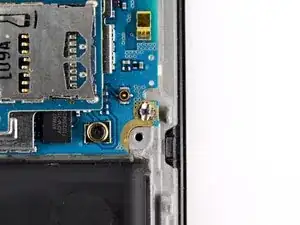

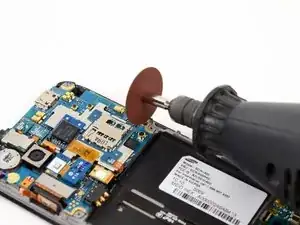

    • In diesem Schritt wirst du ein Rotationswerkzeug verwenden, um eine schmalen Schlitz in die rundgedrehte Schraube zu fräsen, damit du dort mit einem Flachkopf-Schraubendreher ansetzen kannst.

    • Wir empfehlen, eine niedrige Stufe einzustellen (wir haben Stufe 2 von 6 verwendet) um Schaden an dem Gerät oder an der Schraube zu vermeiden.

    • Du solltest so tief fräsen, dass ein Flachkopfschraubendreher hineinpasst und dünn genug, dass der Schraubendreher Halt hat.

    • Fräse einen einzigen dünnen Schlitz in den Kopf der durchgedrehten Schraube.

  7. VbU2XLEhZQ5qcRDW

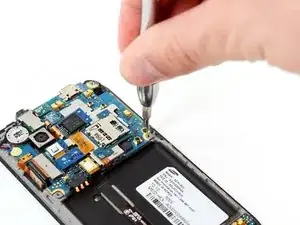

    • Entferne die Schraube mit einem Flachkopfschraubendreher.

    • Die Größe des zu verwendenden Schraubendrehers hängt von der Größe der Schraube ab. Verwende die größte Größe, die in den Schlitz passt.

    • Wenn deine Schraubendreher nicht passen, vergrößere den Schlitz mit dem Rotationswerkzeug etwas. Achte darauf, dass du nicht zu weit einschneidest, damit der Schraubendreher Halt findest. Andernfalls wirst du die Schraube nicht drehen können.

    • Trage eine Schutzbrille und entferne nach der Verwendung des Rotationswerkzeugs eventuell verursachte Schmutzteilchen mit Druckluft. Lose Metallteilchen können ansonsten für einen Kurzschluss sorgen.

    What to do if the screw is much deeper inside?

    Dezlite -

Abschluss

Im Video findest du noch mehr Hinweise, wie man mit rundgedrehten Schrauben fertig wird. Benutze immer qualitativ hochwertige Schraubendreher. Ein Schraubendreher aus schlechtem Material kann die Schraube beschädigen.
