Einleitung
Hier wird der Austausch des Lüfters gezeigt
Ersatzteile
-
-
Entferne folgende Schrauben:
-
Zwei 8mm 5-point Pentalobe Schrauben
-
Acht 2,5 mm 5-point Pentalobe Schrauben
-
-
-
Zwänge deine Finger zwischen Display und Gehäuseunterteil und ziehe nach oben, damit es sich vom Air löst.
-
-
-
Hebele den Akkustecker an beiden kurzen Seiten mit dem flachen Ende des Spudgers hoch, um ihn aus seinem Anschluss auf dem Logic Board zu lösen.
-
Biege das Akkukabel ein wenig vom Logic Board weg, so dass sich der Stecker nicht versehentlich wieder mit dem Anschluss verbinden kann.
-
-
-
Heble den Stecker des I/O Blendenkabels mit einem Spudger aus seiner Fassung auf dem I/O Board,
-
-
-

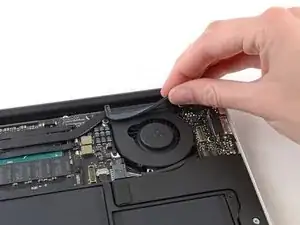

Löse das I/O Blendenkabel vorsichtig von dem Kleber ab, mit dem es oben auf dem Lüfter angebracht ist.
-
-
-
Während du vorsichtig das I/O Blendenkabel nach oben in Richtung seines Anschlusses auf dem Logic Board ziehst, heble mit dem flachen Ende eines Spudgers abwechselnd auf beiden Seiten des Anschlusses, um ihn nach und nach aus seiner Fassung zu lösen.
-
Entferne das I/O Blendenkabel.
-
-
-

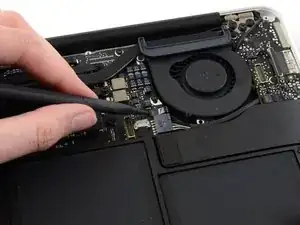

Klappe mit der Spudgerspitze vorsichtig den Sicherungsbügel auf dem ZIF Anschluss des Lüfterkabels hoch.
-
-
-

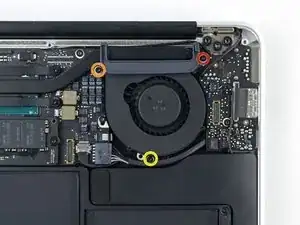

Entferne die folgenden drei Torx T5 Schrauben, mit denen den Lüfter am oberen Gehäuse befestigt ist:
-
Eine 5,4 mm Schraube
-
Eine 3,3 mm Schraube
-
Eine 4,6 mm Schraube mit niedrigem Kopf
-
-
-

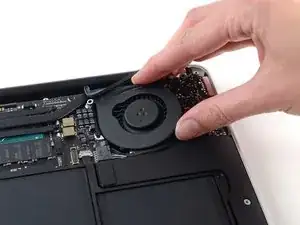

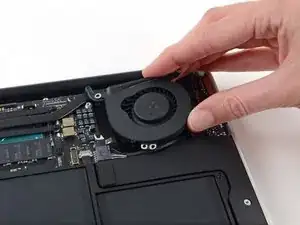

Hebe den Lüfter an der Seite nahe der I/O Karte hoch und ziehe ihn aus dem oberen Gehäuse.
-
Wenn du den Lüfter entfernst, wird sich auch das Flachbandkabel zum Lüfter lösen. Achte darauf, dass es sich nicht verhakt.
-
Um dein Gerät wieder zusammenzusetzen, folge den Schritten in umgekehrter Reihenfolge.
