Pulling the fan cable out was terrifying but you actually just pull on the cable itself. No way to get any leverage at the connector to dislodge it. Did come out easily but like I said, scared me!

Draai de schroefjes voorzichtig los en leg ze op een stabiele plek neer en let erop dat de schroefje een verschillende lengte hebben.

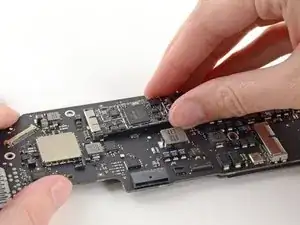

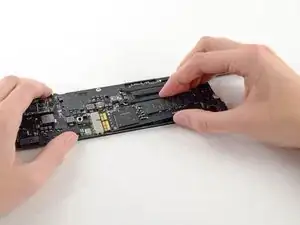

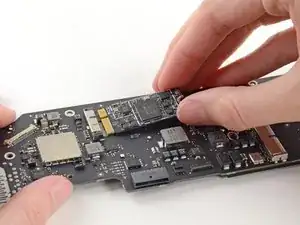

I thought I could replace my 256 Gb SSD with 512? regards

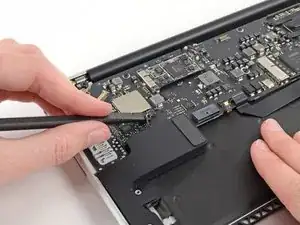

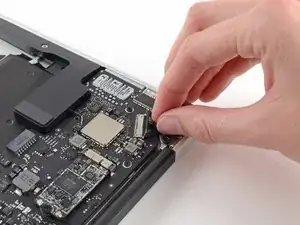

When closing this back up make sure that the antenna cable is tucked away neatly

So this is a legit back cover for MacBook Air?

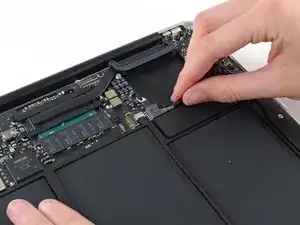

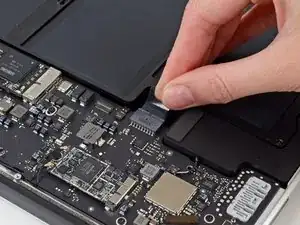

after disconnect the battery, press and hold 5*10 seconds the powerbutton on your keyboard to unload the capacitors

When you are plugging the connector back in, make sure to give it some extra pressure to make sure it is all the way in. It may look like it’s in but needs to be pushed harder!

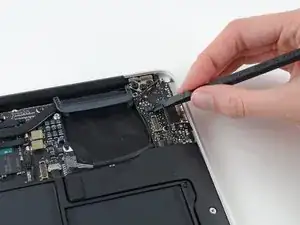

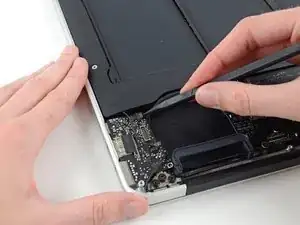

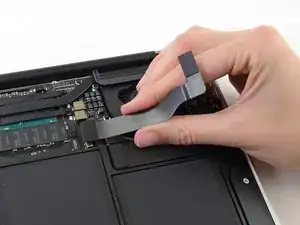

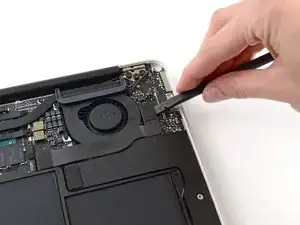

When putting this back together, be careful you don’t flip I/O board cable. It will fit, but the computer will not work. You’ll know it’s wrong if it covers the fan.

the instructions should really indicate you’re only disconnecting one end of the cable. you disconnect the other end in step 6.

Bonjour,quand je retire la nappe de la carte E/S , l’éclairage de l’écran s’affiche mais quand je remets la nappe de la carte E/S ,j’ai un écran noir.J’attends votre réponse.Cordialement.

I literally did this wrong just like you warned not to! Very easy to do…

pour le remontage

de mon coté tout c’est bien passé, il faut juste bien vérifier la nappe de la carte E/S soit à l’endroit, car sinon l’ordinateur refuse de démarrer ( se référer à la photo du coup )

Hi, I messed up the socket, is there a replacement for the socket that holds the fans wire.

macbook air 13" early 2015

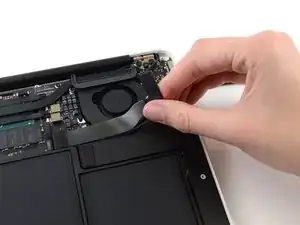

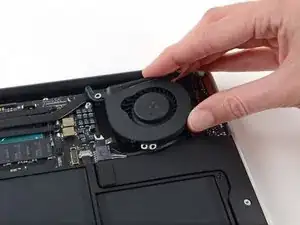

The end of that cord slips into the channel whose lid you just flipped up. Don’t forget to re-insert that when reseating the fan and before flipping that retaining flap closed, it’s easy to miss and should have been part of these instructions, ifixit!

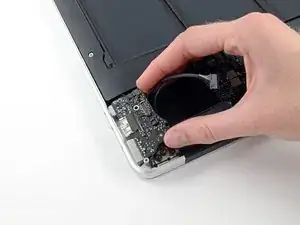

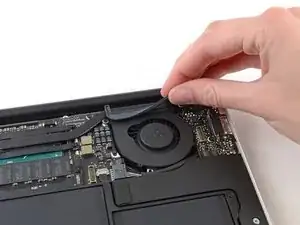

Note this is not telling you remove the gasket, just separate it from the fan.

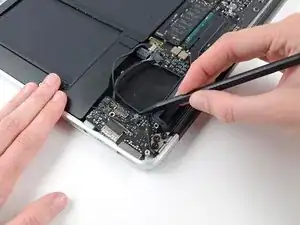

When putting the computer together, pay attention to the placement of the gasket. It has a pin on the left side the enters the main board from the bottom. The right side straddles the tip of the heat pipe and there is a photo later on with close-up.

That gasket wasn't stuck on very firmly in the first place, and even less so upon completing the repair. I hope that doesn't create a problem. I would feel more confident if iFixit had included a bit of adhesive along with the new (used) I/O board.

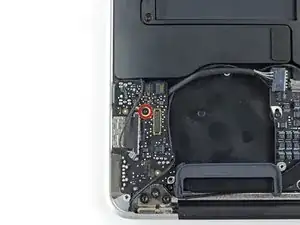

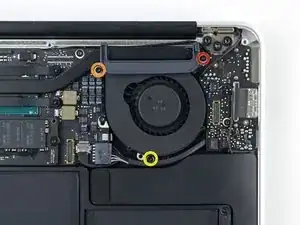

I was unable to remove the 4.4 mm screw with the T5. I needed to use the T4 to get a grip so I didn’t strip the head.

The 3.3mm Torx is actually a 4.4mm

The 4.4mm and the 3.3mm will seem to strip easily but you just have to press really hard!!!

I removed it but it was a little tricky getting the ribbon cable back in. I was afraid it would break but it finally seated after a little wiggling.

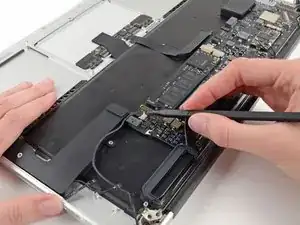

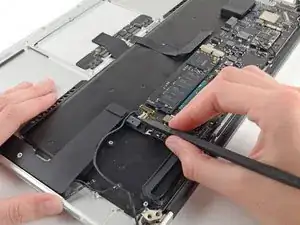

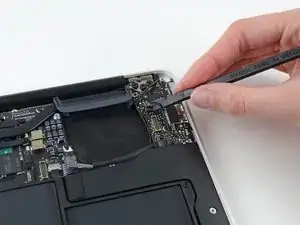

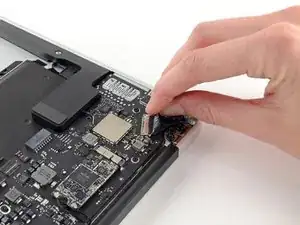

The connector has a latch (at least mine does) that prevents it from simply sliding out. To release it, I inserted a 5/64 flathead screwdriver to lift the edge of the socket. Then the jack and cable easily slides out.

I didn’t find any need to disconnect or remove the I/O board. I had no trouble routing the camera cable between the fan and the I/O board without doing anything to the I/O board.

when i did this the whole socket came off the board and i had to get a replacement i/o board. Be warned, do this very carefully and avoid my mistake

I didn’t find any need to do anything to the I/O board/cables. I had no trouble routing the camera cable between the fan and the I/O board without doing anything to the I/O board or any of the cables attached to it.

If you are here to replace the logic board, you can skip steps 12-16, they’re unnecessary to replace the logic board.

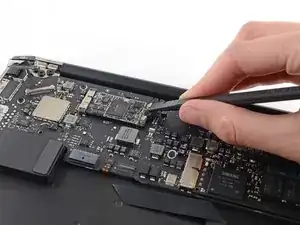

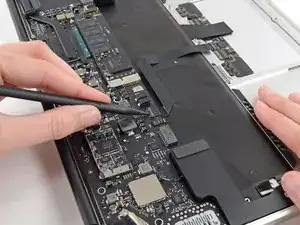

There was black tape covering this socket. It was attached to the ribbon tape. I needed to pull up the tape covering the socket to expose the retaining clip.

Thanks Brant!

The note about the black tape should be in RED in the main text above. I broke off the connector thinking the tape was part of the cable assembly. Always read the comments. Always. : )

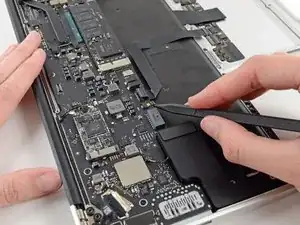

Steps 14-15 & 28-29 seem unnecessary. I managed to replace the logic board without removing the I/O board or right speaker, although that means the logic board cannot be removed easily - the right rear corner is hindered by part of the chassis so that the edge of the logic board facing the battery should be lifted gently first and then the board be slid away from that obstructing part.

As I mentioned in previous steps, I didn’t find a need to do any of this.

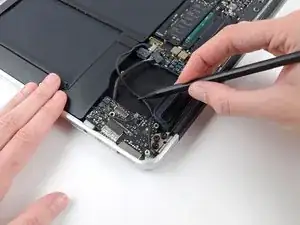

This is really tricky. I couldn't de-route the cable as long as the I/O board was still in place. Had to lift the board mostly out of place in order to get enough slack in the cable to de-route it. Otherwise, I was going to have to force the de-routing, which seemed like a really bad idea.

The I/O board does not need to be removed to remove the display.

Nor for the logic board removal

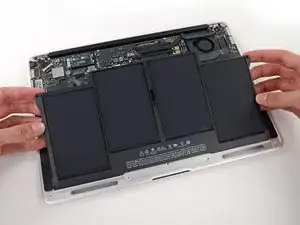

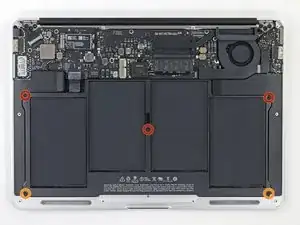

The centre screw (of the three 6.9mm T5 described above) seems to be a bit thicker diameter than the other two corner (6.9mm screws - although I don't have a tool to make precise measurement). Replace this thicker screw to its centre position on the battery.

1. Glad someone was able to clear up the reason we need to calibrate

2. During the process, if for some reason, say my cat waltzing all over my desk, disconnects the magsafe for a moment while in the final full charge cycle, what impact would this have?

The replacement battery’s connector didn’t align with the port as easily as the original’s. Instead of pointing straight back from the battery, the cable pointed at a significant angle. In order to connect the new battery, I had to hold it a slight diagonal angle while connecting it, before placing the new battery into the chassis and securing it.

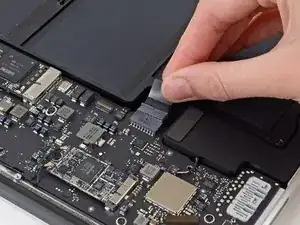

After replacing the battery, the laptop (MBA early 2015) shut off immediately whenever it was unplugged from the MagSafe connector, despite reporting a full charge. To resolve this, I performed an SMC reset: I re-opened the case, unplugged the battery, held down the power button for 5 seconds with the battery unplugged, then re-connected the battery, re-attached the lid, and pressed the power button again. It immediately booted up as expected on battery power.

One of my terminals is broken. What solutions do you recommend me

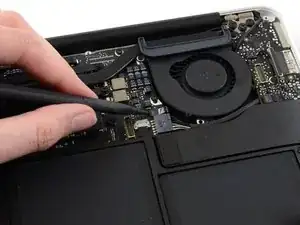

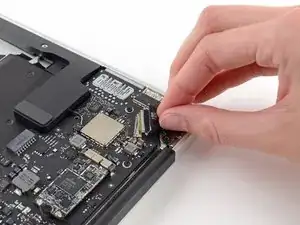

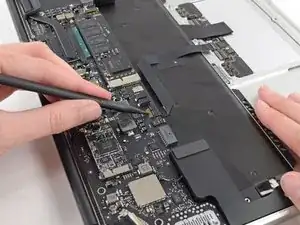

You’re actually pushing the connector from side to side toward the front of the case (or towards the track pad). It’s not a vertical motion at all.

I’d also mention to be careful taking these off and putting them back on. I also accidentally pulled a terminal off it’a cable.

You’ve missed a whole section here on removing the fan. It’s still present in Step 19 pics, but gone by Step 23. It’s not that it’s difficult to work out how to do it. But, when reassembling and following the steps in reverse, it’s handy to know when to use which screws!

Ah! –my bad. The steps for removing Fan etc. are there –up round Step 13. It’s just your photos that are slightly out of sync, as it’s back in place again by Step 19. So, while working in reverse, it looks like it’s not been covered.

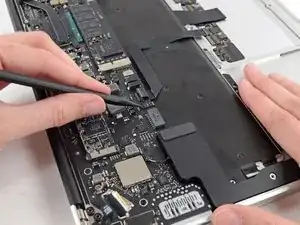

On getting it on — i feel it's implied by the word "push” you can walk it out with the spudger. I couldn't wanage that, and instead walked it out by taking the cord between my index and thumb and walking it out by pulling it to the right and then the left repeatedly in a

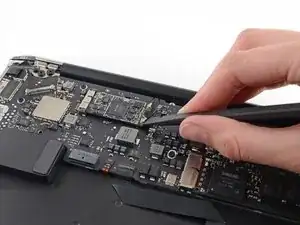

This is the one that gave me the hardest time!!! It does pop up and out tho.

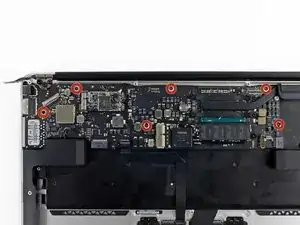

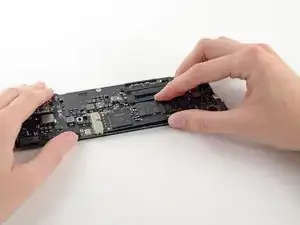

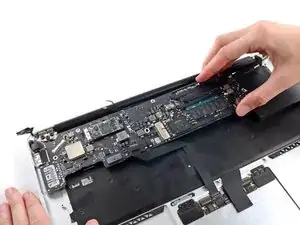

When re-assembling the motherboard, attach all 6 screws but do not completely tighten yet.

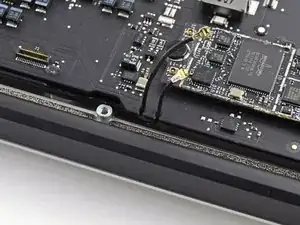

First make sure the rubber gasket is sitting properly, that the 7th screw hole (from Step 18) is properly aligned, and the Airport wire is sitting properly and also not caught under the heat sink.

Once everything is well aligned, start tightening the screws while watching out for the alignment. I found it useful to keep an eye on screw-hole from Step 18 as a reference.

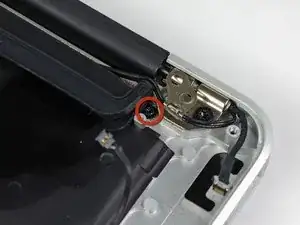

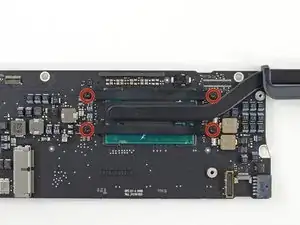

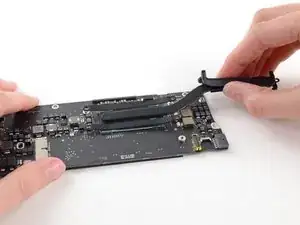

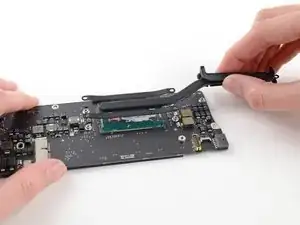

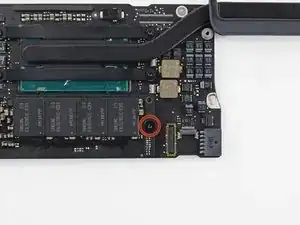

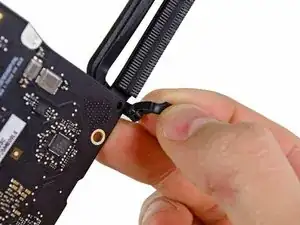

Going in this order, there is a 7th screw securing the logic board to the frame; the heatsink is secured to the logic board with 4 screws, and secured to the frame with 1 more screw. Either take the heatsink off first, or remove that last screw underneath two small black wires, next to the left (as viewed when using the computer; if the computer is flipped over with the cover off and the monitor hinge end of the computer farthest from you, it is in the far right corner) set of three big torx screws that hold the hinge in place. The exact location of this screw is pictured in step 35's second picture; the screw goes through the loop visible below the rubber fan insulator. Scoot those 2 li'l wires out of the way and remove that screw, then the logic board comes right out. If this isn't clear, please let me know and I'll try to describe it better, or add a photo. If I'm posting this to the wrong instruction page, let me know; I was pretty sure I correctly identified my rig, but if not, sorry for the N00bage.

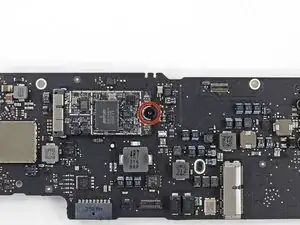

I got an extra screw hiding under the rubber gasket holding the end of the heatsink to the chassis. Ended up bending the heatsink a little cause I wasn't looking for it.

This is the same screws as step 17.

In both the online and the PDF version, Steps 17-18 and Steps 29-30 are identical. At which stage should you actually remove the display screws?

Good catch! We did some sleuthing and it looks like a couple guides did indeed have an extra section of steps! All better now =)

This step is not needed

It’s not clear what you mean by “This step is not needed.” If you want to remove the logic board from the upper case in order to put it onto your replacement upper case, you will have to remove this screw.

This step is only needed if you’re replacing the ENTIRE top case. Simply swapping out the trackpad unit does not make this step necessary. This entire tutorial assumes you’re replacing the entire top case which is an expensive mistake if you’re simply replacing the trackpad and/or keyboard. The keyboard is removable as well despite those many tiny rivets. Save money and time by not replacing the entire top case for a bad trackpad and/or keyboard. I needed to accomplish this step because I also removed and replaced the keyboard.

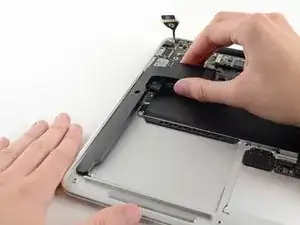

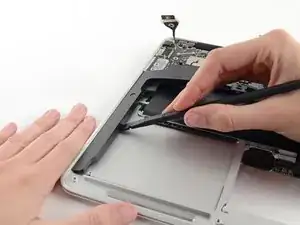

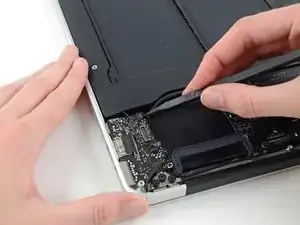

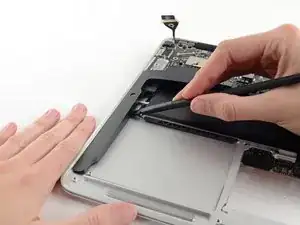

You don’t really *have* to remove the speaker, especially if your replacement upper case assembly already includes the speakers.

I found the same. If you already have speakers in your new upper case, you can leave them. When you put the logic board back in, it will be a tight fit. I had to start with the corner near the right hinge (the Thunderbolt port corner) and work it in to place.

If your keyboard and/or trackpad need replacing you do not have to replace the entire top case.

It’s probably worth mentioning here that during reassembly you want to tuck the rubber gasket under the extension of the heat sink that the fan slots into.

This step is REALLY helpful. I skimmed over it when disassembling and then struggled a bit trying to get the rubber gasket aligned just right.

The middle photo shows what I mean, it's exactly what I needed.
