MacBook Air 13" Mitte 2011 Kühlkörper austauschen

Geschrieben von: Andrew Bookholt
  • Kommentare: 98
MacBook Air 13" Mitte 2011 Kühlkörper austauschen

Schwierigkeitsgrad

Schwierig

Schritte

21

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

Hier wird der Austausch der Wärmeleitpaste oder des Kühlkörpers am MacBook Air 13" Mitte 2011 gezeigt

  1. ntWnApPFnVyDIwGF

    • Bevor du anfängst, fahre dein MacBook herunter. Schließe das Display und lege dein MacBook mit der Unterseite nach oben auf eine weiche Unterlage.

    • Benutze einen P5 Pentalobe-Schraubendreher, um folgende zehn Schrauben zu entfernen, mit denen das untere Gehäuse befestigt ist:

    • Zwei 9 mm Schrauben

    • Acht 2,6 mm Schrauben

    Pulling the fan cable out was terrifying but you actually just pull on the cable itself. No way to get any leverage at the connector to dislodge it. Did come out easily but like I said, scared me!

    allison -

    Draai de schroefjes voorzichtig los en leg ze op een stabiele plek neer en let erop dat de schroefje een verschillende lengte hebben.

    bwgvanderveer -

    I thought I could replace my 256 Gb SSD with 512? regards

    ola m -

    Do you have good Test Point Voltages? It appears there are silver colored Test points on the I/O Board. I am working on a water spill and trying to troubleshoot if both the I/O board and the Logic need replaced.

    andrew -

    It's probably not necessary but may be a little safer to completely discharge the old battery before replacing it.

    Larry Smith -

    tell a model that was not inferior to the speed of the one in the laptop.

    Thank you

    ilyabuhov -

    Do i need to order tools separately to replace the battery i just ordered?

    anne uhlir -

    im looking for a Logic Board for a

    Apple - MacBook Air® - 13.3" Display - Intel Core i5 - 8GB Memory - 128GB Flash Storage (Latest Model) - Silver Model: MQD32LL/A

    Any help is appreciated.

    Jamie Comstock -

    P5 pentalobe screwdrivers are too big! The correct size for these screws are p4 pentalobe. P5 pentalobe was just able, with difficulty, to turn some of the screws. If the screws were at all tight, my p5 was unable to get them out, and started to strip the screws. A p4 screwdriver fit better and removed the screws with ease. (I was using high quality Wiha brand screwdrivers.)

    William Skinner -

    I had same experience (with MacBook Air 13-inch Mid-2012) … had to get P4, which worked swimmingly

    eric -

    Very simple installation. The screwdriver heads were exactly what we’re needed, one head for the outside case screws, the other for the screws holding the battery in place. The computer started right up. Now to see how the battery holds up, but I have a good feeling about this!

    Dennis Eaton -

    My P5 and the T5 worked perfectly with my early 2015 Air 13”! And it is super fast! Thank you iFixit!

    Pennny Beach -

    The supplied kit and instructions worked perfectly!

    Nikolay Andreev -

    Comments that the P5 pentalobe are too large are absolutely spot-on. There is no way the P5 pentalobe bit I have will work with the MacBook Air without destroying the screws. Hard target search for P4 pentalobe bit in progress…..

    joemoog -

    Bonjour j’aimerais changer mon SSD de 128 Go pour en mettre un de 512 Go. Je ne sais pas ce qu’il faut prendre car il faut qu’il soit compatible avec le macbook air A1466. J’aurais vu un Samsung Evo 970 500 Go mais si je ne me trompe pas, il faut un adaptateur.

    Merci pour votre aide.

    chicco33 -

    oui, vous aurez besoin d’un adaptateur, pour completez le changement.

    Dan -

    The tool kit should include tweezers for re-inserting the battery connector.

    Andre Clement -

    P5 pentalobe worked perfectly for me. Instructions were spot-on. Antenna connections were a bit fiddly to refit but got them in ok.

    michaelquinnell -

    Maybe the problem some are experiencing is that the designations are confusing (blame Apple rather than iFixit). the P2 is also known as PL1. The P5 is also known as PL4. The P6 is also known as PL5. So it is possible to mistake the P6 (PL5) for the P5 (PL4), meaning it (P6-PL5) will be too big, while the P5 (PL4) will be just right. Sort of a 3 Bears explanation, but it is very confusing.

    Thomas Lewis -

    To add to this. In searching for the P5 screwdriver to buy in UK, as far as I can tell, it is also known as

    Pentalobe 1.2(mm)

    also

    P4 = 0.8

    P6 = 1.5

    Just unscrewed the back case of MacBook Air 13” mid 2011, with no problems using Pentalobe 1.2

    nijafe -

    I have not replaced a display on the A1369 but have done many A1466 which is a newer 13” model. They seem really similar and its not clear why one needs to remove the logic board to remove the display. The antenna cables on the A1466 dont have to rest under the logic board but can be tucked in the hinge crevice. Cant this same thing be done with the A1369?

    Sean Love -

    Did mine today - but new battery wasnt charging. Went back in and noticed the battery connector cable was not quite 100% “seated. It was sticking out by less than a millimetre! - you need to give it quite a firm push in to get it seated properly. Otherwise - all ok .

    John Brennand -

    Just installed on a MacBookAir6,2 (13-inch, Early 2014).

    Was very easy.

    New iFixit battery looks great so far:

    Full Charge Capacity (mAh): 4922 -> 7333

    Jonathan Cross -

    can you tell me which size of screwdrivers you’ve used to crack it up, please? I have the same model and size,

    hawk_lpc -

    Screw P5 Pentalobe 1.2

    Mario Verlent -

    Install went flawlessly. Only challange was reattaching blue tooth antennas. Those sockets are so tiny.

    Joel Sebastian -

    Installation was a little challenging at first because the instructions on this site did not perfectly match my model (late 2013 to early 2015).

    Found this video on YouTube which described the procedure perfectly https://www.youtube.com/watch?v=Lue6lVWh...

    Also the Ifixit kit I received was well put together with everything I needed and more. The calibration went perfectly and I am very pleased. Will buy again!!

    Donald Niamath -

    Gently pulled out connector of old battery, then pressed and held the power switch for 1 minute. Unscrewed and removed the old battery. Pressed and held power switch for 1 minute again. I know from previous work that this helps drain charge from spontaneous recharging as the dielectric recovers. Gently “fine tuned” leads from new battery to connector till connector stuck out at right angle to the edge of battery. Held the battery by the edges and let the connector slide into the socket. Set the battery down and put the screws in all the way. Then checked that the connector was completely seated before tightening the screws. The laptop come on immediately and showed 98% charge and registered normal (checked in “About this Mac”. Very happy to this point. Now for calibration.

    Amir Zaidi -

    Thank you very much for the guilde. My MBA2011 had reborn !

    Billy Wong -

    Allow for electrostatics, otherwise you may cook components on the logicboard /motherboard (like I did with one of these!)

    See great advice: Electrostatic Discharge

    Fletcher Cole -

    … und wenn du eines von diesen wirklich kleinen Schräubchen vermisst: bevor du den Boden aufkehrst oder mit einem starken Magneten absuchst, schau mal am seitlichen (magnetischen) Ladekabelanschluss nach … ?

    ... and if you miss one of these really small screws: before you sweep the floor or search it with a strong magnet, take a look at the (magnetic) charging cable connection on the side … ?

    Blatt -

    Fot All People ha ing trouble finding their SSD

    DONT PRESS CMD +R + POWER

    instead press

    OPTION+CMD+R +POWER

    I just installed Monterrey with WD black sn 770 SSD in m'y macbook air 2015

    Albert -

    IFixit just had me submit "my story" re. fixing my MacBook Air 2013.

    This repair was NOT difficult. The battery is enclosed in a plastic frame. It is NOT glued in like the newer models of Apple laptops. And unlike older laptops, the battery is not totally enclosed in a plastic housing. So once you remove the screws holding the batterie's frame, you can remove the battery.

    Follow the instructions. Read the comments. Also read the comments re. installing a new battery.

    Good luck. - Eric J.

    ECJohansen -

  2. AuaSrWoUvoATMoyN

    • Löse das hintere Gehäuse vom Air, indem du mit den Fingerspitzen zwischen Display und Gehäuse gehst und es nach oben ziehst.

    • Entferne das hintere Gehäuse und lege es beiseite.

    There is a nub on the inside of the case which is attached to the battery. When you try to pull it open, it appears to be attached to the plastic casing of the battery, which sometimes splits. I gently unhooked the nub from the battery before removing the case fully. This seems to happen if the battery has suffered some drop damage (plastic parts broken around screws and parts of plastic frame split). Just an FYI in case your lower case doesn't pull away easily.

    Jeannie Crowley -

    To add - the slim 1cm tab “nub” is on the centre of the back cover & fits into a hole in the battery frame. I ran my fingers around the whole of the cover to eventually here it click out.

    nijafe -

    When closing this back up make sure that the antenna cable is tucked away neatly

    Gabriel -

    So this is a legit back cover for MacBook Air?

    ASHANTI SMITH -

    What about disconnecting the battery?

    Luke Grimes -

    I bought the part and tools from iFixit and followed the directions. The mechanical part went smoothly - maybe 10 minutes to disassemble/replace/reassemble.

    Getting Catalina (the current MacOS) to install was not working until I used Cmd-Opt-R (as noted in the OWC paper sheet that came in the box) which brought up the proper installer - I believe from a pre-prepared bootable SD card but it’s hard to say. From there the install succeeded taking ~1.5 hours.

    Beware that (a) the install requires a working internet connection for verification and updates, and (b) the system must have been running at least macOs 10.13 (High Sierra) before the install in order to have an EFI BIOS that recognizes the SSD.

    Lance Berc -

    As noted by others, be a bit careful removing the lower case. There is an oblong black plastic locator very near the center of the lower case. Unless you gently pry the bottom cover pretty much straight up, you will break the ends off of the locater.

    BobY -

    Thanks for the detailed photos. When repairing equipment, I don’t really like to disassemble plastic parts, they can be damaged, but your screenshots help a lot. For my studies, I am writing an essay comparing the reliability of laptops from various manufacturers and the complexity of their repair, maybe it will be useful for someone to check the essay for plagiarism here essay checker, when comparing different manufacturers, I understood why people love Apple so much. The minimum number of failures. Of course, repairing it in an official service is not cheap, but with the help of such detailed instructions, you can do it yourself and save a lot.

    Nexus -

    The screwdriver bit to use on these case screws is not named, but I found that my "CR-V 1.2" did the job nicely.

    The driver for the screws inside the case are named, as "T5".

    Jim Henderson -

  3. HBwCSILQab5ttTvP
    HBwCSILQab5ttTvP
    PoVQXnXpAFYifmRo

    • Als Vorsichtsmaßnahme gegen versehentliches Entladen oder einen Elektroschock, trenne die Akkusteckverbindung vom Logic Board.

    • Nimm die durchsichtige Abziehlasche aus Kunststoff, die an der Akkusteckverbindung befestigt ist, und ziehe sie in Richtung der Vorderseite des Airs, um den Akku von dem Logic Board zu trennen.

    • Achte darauf, die Steckverbindung horizontal in Richtung des Akkus zu ziehen und nicht gerade nach oben vom Air weg, da andernfalls die Fassung auf dem Logic Board Schaden nehmen kann.

    The clear plastic tab is missing on mine. Whoever worked on my laptop before me seems to have ripped it off. Now what?

    mjmorawski -

    My plastic tab pulled off the connector. I worked the connection apart using two spurgers, slowly backing it out side to side.

    Ric Thistlethwaite -

    I don’t see my socket on logic board, how can I fix it

    QUYNH PHAM -

  4. TDAOCQPobChhu4ab

    • Heble mit dem flache Ende eines Spudgers den Stecker des I/O Blendenkabels aus seiner Fassung auf der I/O Blende.

    Be really careful when reconnecting the I/O board cable connector. The deep connector has a tendency to bend the pins with very little force applied. If this is the case, check to see if the gold pins are bent down, you may only see one row of gold pins vertically, or none.

    They can be lifted with a flat head screwdriver bit. Gently slide the bit under the pins, this may need a small amount of pressure depending on how far they are bent down. Lever the pins back to the vertical position.

    I found attempting to insert this connector was easier while holding the MacBook on a slight angle to see down the pins as I aligned the connector.

    Another way to tell if the I/O connector cable is in place correctly is to run an Apple Hardware Test. Hold down the letter D while booting the mac and follow the prompts. If no issues found, you're all good.

    A common error for a misconnected I/O Connector is 4SNS/1/C0000008:TS0P--124. This means the system cannot read the palm temperature sensor. Fix the cable and you're good

    Ben -

    Hi, Can the 13” Logicboard of 2012/2013/2014 or 2015 be compatible in the 2011 model?.

    verma1986 -

    This is ridiculous.

    From this point, skip ahead to step 18. There is no need to perform steps five through 17.

    AnnoniMoose -

    I am glad I saw your comment. This saved me a lot of time and allowed me to miss many points of failure. thanks.

    norsk4sure -

  5. md53vHhxMXncK142

    • Löse das I/O Blendenkabel vorsichtig von der Oberseite des Lüfters.

  6. yctMokPOfrNwiZAf
    yctMokPOfrNwiZAf
    aNFlJGGWbsZR1ITg

    • Der folgende Anschluss hat eine besonders tiefgelegte Fassung. Sei vorsichtig, wenn du ihn ablöst.

    • Während du vorsichtig das I/O Blendenkabel nach oben in Richtung seines Anschlusses auf dem Logic Board ziehst, heble mit dem flachen Ende eines Spudgers abwechselnd auf beiden Seiten des Anschlusses, um ihn nach und nach aus seiner Fassung zu lösen.

    • Entferne das I/O Blendenkabel.

    This step can be skipped, not required for removing the fan.

    yurkennis -

    Agreed, there is no need to remove this cable.

    David Robillard -

  7. xGDACPNg6taXS3GW

    • Klappe mit der Spudgerspitze vorsichtig die Halteklappe auf dem ZIF-Sockel des Lüftungskabels hoch.

    • Stelle sicher, dass du an der schwenkbaren Halteklappe hebelst und nicht an der Fassung selbst.

    It is not necessary to remove the fan cable.

    ezequielaceto -

    It's certainly necessary to remove the fan cable, as you won't be able to remove the fan in Step 10 if you don't!

    Goth70 Fuzed -

    If you break the ZIF socket, it could be a bad day.... It happened to me. Not one to throw in the towel, I fashioned a hold-down with a length of paperclip held in place by the nearby screw. So far, it is working like a charm. Hopefully, it continues to work and this helps some other poor soul.

    Lester Newsom -

    I also haven't removed the fan cable. No need for this step IMHO. Just let the fan on the side instead of completely remove it.

    David Robillard -

    Trouble putting the cable back in the ZIF socket?

    Get some electrical tape and cut it down the the width of the ribbon cable fold over one end to create a pull tab. Now place the tape onto the ribbon to give yourself something to pull either in or out as needed. Then you can peel off the tape.

    Don't forget the unlatch the connector first!

    Source: Re-connecting fan ribbon cable

    Adam Banko -

    The hardest part is to put the fan cable back in the ZIF socket.

    (Why do people say you don’t have to unplug the cable? that makes no sense)

    Digital Blended -

    after putting the cable back in the fan is very loud, can someone help?

    Ramon majem -

    Be very careful when locking the ZIF connector during reassembling. This was my first time seeing a ZIF connector, the retaining flap plastic bounced when I was reassembling the I/O board ( I didn’t pushed so hard though) and a struggled nearly 1 hour to reassemble it. Same connector, be careful. It was a nightmare, thank god it didn’t broke!

    Berkin Birol -

    Quick note, when u install the new fan, i inserted the ribbon cable back in the zif socket first with a pair of tweezers then screw the fan back in.

    robdroby -

    I see comments suggesting not to remove the ribbon cable. This would work. Simply flip the fan like the page of a book, from right to left, thereby getting it out of the way while you remove the i/o board. Flip it from left to right when you reinstall. This approach would save some frustration, as it is a challenge to reinsert that tiny ribbon into position.

    If you do remove the ribbon, reinsert it before repositioning the fan. That will give you more play as to fiddle with the ribbon.

    Mark -

  8. qUQagwgA3SyJSlqZ

    • Löse die Gummidichtung vom Kleber oben auf dem Lüfter.

    Note how the “ears” of the gasket are routed

    davecortesi -

    Where can I purchase a replacement gasket? It’s missing after the repair place opened my computer

    Erin Kaspar-Frett -

    Should I put some adhesive back when reasembling?

    Marco -

  9. JkFbWGVELGUa3sDJ

    • Entferne die folgenden drei Schrauben, mit denen den Lüfter an der oberen Schale befestigt ist:

    • Eine 3,6 mm T5 Torx Schraube

    • Eine 2,7 mm T5 Torx Schraube

    • Eine 3,6 mm T5 Torx Schraube mit einem kurzen Kopf.

    So far great

    Joseph Sperber -

    When reinstalling, start all three screws before tightening down. There’s some play in these holes, and you will have trouble lining them up if you tighten one down first.

    Curtis Kline -

    I just replaced the the i/o board and it went fine, but I think I broke the screw holder on the top left side of the fan, and now can get the screw out - the computer still runs - i was wonder can I get a way with that one screw not holding it down?

    ilarkin1 -

    Same here. The screw socket was broken for the 2.7 mm T5 Torx screw. Is there a way to re-solder the socket? Or support the fan. It’s making a horrible noise now :(

    Jason -

  10. WJylrjPZcYcgBDKb

    • Hebe den Lüfter aus dem oberen Gehäuse heraus und ziehe das Flachbandkabel des Lüfters vorsichtig aus seiner Fassung heraus, wenn du es vom Air entfernst.

    Would like more detail about removing the fan cable. Looks like it just pulls out to the right. I thought I ripped it off.

    kennyavis81 -

    On re-installation of fan cable cable no tool required - just wiggle it in from from side/above (side force aided by bend of cable)

    Super easy - my first computer repair..hope all is well

    paul deacon -

    The ribbon connector held in the socket by a tiny square on top, which enters a square hole in the top of the socket. An xacto blade used to pry the top of the connector gently up will help release the connector.

    peteragries -

    This helped me no end, I agree with the people above that it's worth explaining how the ribbon cable is held in and that

    it's simple to remove and reinstall. Thank you for a brilliant guide.

    leesparey -

    Year, from the top, the ribbon appears to be just the plastic strip. Copper connectors are on the bottom but at first glance it looks like I pulled the connector off the ribbon. Mine pulled straight out away from the connector, no upward angle needed or desired.

    Allen -

    Question: Is the ribbon connector a part of the fan, so that the new fan has its own ribbon connector? Apologies if this sounds trivial, but I could not tell from the wording/picture.

    jerry bennett -

    So I did the replacement according to this guide, with a replacement fan purchased from iFixit, and the fan would not spin even under heavy load! I took out the fan, and noticed that there was quite a lot of resistance when I spun the blades manually. It turns out, the fan was slightly squashed flat near the vent so that the resulting friction prevented the blades from spinning free. I un-squashed the fan, re-installed it, and the fan is spinning! The moral of the story is to make sure the blades can spin free when installing a new fan.

    Hiroshi -

    On reassembly, I found it hard to reinsert this ribbon cable, so did step 11 again. I disconnected the I/O board, connected the fan and snapped the retainer down on the ribbon cable, then undid step 11 (ie. I connected the I/O board again). As others have said, a brilliant step-by-step guide, and slloeing comments is a great idea too.

    Jim Henderson -

    nice! Congrats!

    Luis -

  11. wEwi3ntoGIWSgY5X

    • Trenne das I/O Blende, indem du das Netzkabel aus seiner Fassung auf dem Logic Board entfernst.

    • Ziehe das Kabel parallel zu der Oberfläche des Logic Boards in Richtung der rechten Kante des Airs.

  12. iihNKVQkIuHIKlaY

    • Ziehe das Kamerakabel parallel zu der Vorderseite der I/O Blende in Richtung der Ecke des Airs, um es von seiner Fassung zu trennen. Mit der Spudgerspitze kannst du nachhelfen, um den Stecker aus seiner Fassung zu bekommen.

    • Ziehe dieses Kabel nicht nach oben, während du es trennst, da sonst die Fassung aus dem Logic Board herausbrechen kann.

    Mine was very reluctant... couldn't get any purchase with a spudger, had to use flat tweezers to get enough grip on the cable. Exerted slowly increasing pull, but when it came out, it broke loose suddenly.

    Allen -

    My Macbook Air (2013) didn't have this cable.

    Phillip Remaker -

    Mine too, only a slot where a cable was passing,

    Gianni Borghesan -

  13. 455U3RH6w2JofPoj
    455U3RH6w2JofPoj
    eoKlqYNXHbI3CtEp

    • Heble mit dem flachen Ende eines Spudgers den Kabelstecker des linken Lautsprechers nach oben und aus der Fassung auf der I/O Blende heraus.

    • Setze mit dem Hebeln unter den Kabel an.

    • Hole das linke Lautsprecherkabel aus seiner Halterung auf der I/O Blende.

    On re-assembly, I haven't gotten the speaker or microphone to work. Must have broken the connection, but it looks fine. Ran the hardware diagnostic (holding down "D" at start up) and got the following error code - 4MOT/4/40000002:Exhaust-0

    Anyone know what this means.

    Daniel Thomas -

    I recommend for the two speakers & mic connectors place thumb nail on top while prying up so you can gauge the upwards pressure better.

    also generally before trying anything scary double click the picture & zoom in so you can see better what you’re dealing with. Or even get your phone magnifier to zoom in on to your tricky parts.

    nijafe -

  14. Ud6kZWc5qS2iW2oO

    • Heble den Mikrofon Kabelstecker mit dem flachen Ende eines Spudgers aus seiner Fassung auf der I/O Blende.

    • Setze mit dem Hebeln unterhalb der Kabel an.

    Be very careful: it is quite easy to accidentally pry the whole cable connector from the I/O board.

    Dallas Guy -

    What do you do if this happens? Buy a whole new I/O board?

    adamwitz -

    I agree, I found this to be the only critical step of the entire disassembly procedure: I snapped the microphone connector socket off the board despite applying a relatively gentle pull on the cables. Fortunately I did this on a dead MBair from which I wanted to get the display, but now I'm afraid of doing the same damage while installing the display on the target MBair!

    Any tricks/tips would be most welcome.

    Lorenzo

    Lorenzo Cangiano -

    Following up on my previous post I'd like to share how I eventually circumvented the risk of snapping the microphone connector socket on the I/O board. Instead of attempting to disconnect the mic (as suggested in this guide, step 14), I did the following: a. remove the battery, b. detach the right speaker, c. detach the microphone from the outer case (for steps b and c I followed the iFixit guide on how to replace a MacbookAir microphone). The advantage is that the microphone can now remain safely connected to the I/O board. Of course when reassembling the mac one has to reverse these extra steps (the microphone can be easily reattached to the case as it has a sticky side). I would strongly advise iFixit to revise this guide accordingly!

    Lorenzo Cangiano -

    I don't think this step is necessary if you aren't seeking to fully remove the I/O board - if you are seeking only to remove the heatsink, you can skip this step, leave this delicate cable attached, then in the next couple steps you'll end up "flipping" the board out of the way, while leaving this cable connected.

    coopermarcus -

    Maybe I just lucked out but removing the mic cable was about the same effort as the left speaker cable. I wasn't ready to try Lorenzo's workaround above without a photo guide, so took my chances. Your mileage may vary.

    Allen -

    I find it very helpful that you give directions on where to pry, and how to address each connection. I’m always hesitant for fear of snapping something off, so I appreciate this detail. Thanks.

    Adam Goldstein -

    I recommend for the two speakers & mic connectors place thumb nail on top while prying up so you can gauge the upwards pressure better.

    nijafe -

  15. umpsEd3qTBvGcpV5

    • Entferne die einzelne 3,6 mm T5 Torx Schraube, mit der die I/O Blende am oberen Gehäuseteil festgemacht ist.

    The screw was stripped and I couldn’t remove it, but it didn’t matter, I could complete removal of the logic board without removing the I/O board. I think the steps involved with disconnecting the I/O board are redundant.

    Nigel Anderson -

    I have done this repair without the steps laid out above. The I/O board does not need to come out. Just be careful when de-routing the wires attached to the display and you should be fine. I was able to skip steps 11-21 and go straight to step 22 without issue.

    Kevin Ginther -

  16. JwOf5FYVbjvDthnF

    • Hebe das I/O Board vorsichtig von der Ecke, die am nahesten am Logic Board ist, her an und entferne sie vom oberen Gehäuseteil.

    When following these instructions in reverse, and reinstalling the I/O board, be sure to carefully check and adjust the alignment of the ports on the board with the holes in the case - it is especially obvious if the headphone port is mis-aligned with the case.

    coopermarcus -

    Also on reassembly, make sure the speaker and microphone cables are visible before securing the i/o board!

    davecortesi -

  17. Nggy51EkLcDHaPQB

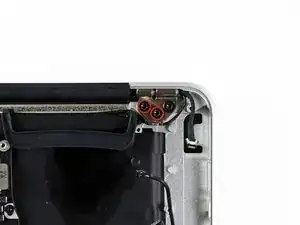

    • Entferne die beiden 4,9 mm Torx T8 Schrauben, welche die Halterung des Antennenkabels auf dem linken Displayscharnier am oberen Gehäuse befestigen.

  18. EeCQbPkcKLlxTMfZ

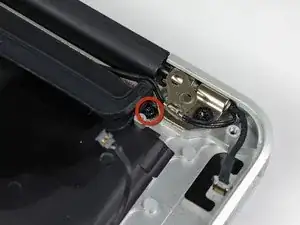

    • Schiebe die Halterung des Antennenkabels aus dem Weg und entferne die 3 mm Torx T5 Schraube, welche das Ende des Kühlkörpers am oberen Gehäuse befestigt.

  19. NSxsBVVLPA4VjQj4

    • Entferne die vier 2,5 mm Torx T5 Schrauben, welche den Kühlkörper am Logic Board befestigen.

  20. hEs65WaxsJyfsKyb

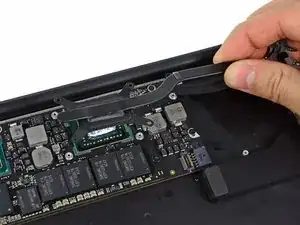

    • Wenn der Kühlkörper immer noch am Logic Board festklebt, obwohl die fünf Schrauben entfernt sind, dann kannst du ihn vorsichtig mit einem Spudger von den Kontaktflächen der GPU und CPU ablösen.

    • Entferne den Kühlkörper vom Logic Board.

    • Beim Zusammenbau musst du eine neue Schicht Wärmeleitpaste auftragen. Wenn du das zum ersten Mal machst, hilft dir unsere Anleitung dabei.

  21. x4JQZZJAKCQTtv2h
    x4JQZZJAKCQTtv2h
    2PehqYmlvRRbOpGD

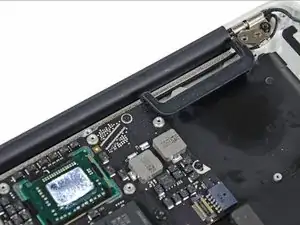

    • Diese Bilder zeigen, wie die Gummidichtung am Lüfter beim Zusammenbau wieder eingesetzt werden soll. Achte darauf, dass die Dichtung nicht unter die Ausbuchtung kommt, wo das Ende des Kühlkörpers am oberen Gehäuse festgeschraubt wird.

    • Achte auch darauf, dass die kleine Erhebung, die in die Gummidichtung eingeformt ist, genau in den entsprechenden Einschnitt in der oberen rechten Ecke des Logic Boards passt.

Tinte & Feder

Andrew Bookholt

578335 Reputation

4 Kommentare

Excellent instructions / guide. Replaced both heat sink and fan without a hitch. Thank you!

Robert Makar -

I wanted to bring my old 2011 MBA back to life since its still running strong, so I followed this with a new thermal paste, good cleaning and a new battery, its like a brand new computer now. Glad I got the ifixit kit as well when I ordered the battery. Hope to keep this MBS going another year or two before I upgrade. Now I need to do the same with my MBP 2010 for fun.

John Ficchi -

I have a mid-2011 MacBook Air identical to the model in the instructions, and it frequently gets up to 80C when running under a heavier load. I am planning to disassemble it entirely and repaste the machine, and fully blow out the inside. I will post on here when I get it done and see how it runs! Thanks for the guide!

Sam -

thanks alot.. I followed the procedure to replace the thermal paste and it was great.but i didn’t realise a difference in heat and sound of fan.

Ahmed Fadly -
