Magellan RoadMate 1440 Antenna Replacement

Geschrieben von: Benton Burns
  • Kommentare: 1
Magellan RoadMate 1440 Antenna Replacement

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

This guide will illustrate how to replace the device's antenna.

  1. i1MWJVDLndNVYRrI

    • Place the GPS with the screen facing down.

  2. LisFCmskdaKQaiAt
    LisFCmskdaKQaiAt
    IDN6LNdCyYHbTmqG

    • Remove the four 4.2 mm screws on the back cover of the device using a Phillips #0 screwdriver.

  3. WxLDKFIWM5p3ijWM
    WxLDKFIWM5p3ijWM
    BQgJSw45ZtvXTTCj

    • Remove the two 4.2mm screws at the bottom of the device using a Phillips #0 screwdriver.

  4. GUpPP5sUHBhMpxRh
    GUpPP5sUHBhMpxRh
    ljBhKOarKIQPQm61
    bNPXnqRTcvH3qxtT

    • Insert the black spudger into the crease in the side of the GPS.

    • Move the end of the spudger down to break the seal between the two plastic shells.

    • Continue doing this along each side of the GPS to ensure a smooth removal.

    Before seperating the cover panels secure the on/off slider to the front panel with tape. If it falls out the micro swith is easy to damage. The small white tab breaks with ease.

    mrkenhoward -

  5. AFATJFfGsujCTJJZ
    AFATJFfGsujCTJJZ
    BxZYoQeuGGlyIxY2
    F5VfpWpN3tjHYHdY

    • Fully separate the two sides of the case.

    • Remove the tape on the battery wires and the tape on the speaker wires.

  6. GvHkxikuFMOIAJBX
    GvHkxikuFMOIAJBX
    AAACtSXlMjWyfmVH

    • Use the black spudger to break the seal between the adhesive and battery. Use the same spudger to continue to pry the battery from the backing

    • This may be a little tough to separate the battery and the adhesive

  7. qMrhIWXELLTRyQsF
    qMrhIWXELLTRyQsF
    qcAd5WNFqG4oZKa6

    • Lift the battery from the device

    • Once the battery is free from the adhesive, remove the piece of tape with a pair of tweezers that is covering the connection of the battery to the motherboard.

  8. uVZGrgK2kGCKkTlm
    uVZGrgK2kGCKkTlm
    gHjLNPe6wckCGKVm

    • Unplug the battery from the mother board by pulling back the clips and pulling the wires away from the motherboards receptacle

    • It is important for your and the device's safety to remove the battery before continuing with any other part removals.

    • It is not necessary to separate the red and white wires from the battery. A replacement battery pack will come with similar wires already attached.

  9. nnRym2qO5IlrZLeX
    nnRym2qO5IlrZLeX

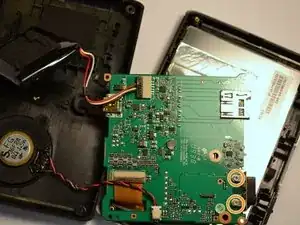

    BnA2PRHpCIgho5Iu

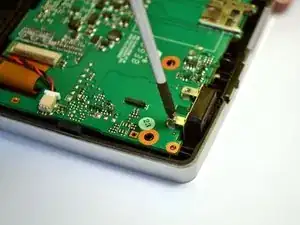

    OxsBTmF61mdOMpQe

    • Identify the antenna.

    • Locate the two screws in the antenna.

    • Use a Phillips #0 screwdriver to remove the two 2.5mm Phillips #0 screws.

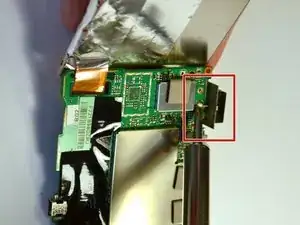

  10. QfjjbtLAVFwvSvMQ

    • After the screws have been removed, move the motherboard so that it is sitting in the side with the speaker and battery.

    • Using a soldering iron, melt the solder connecting the antenna to the motherboard. For instructions on how to use the soldering iron, refer to Soldering Technique Guide for instructions.

    • The soldering iron will be hot. Handle it with caution.

Abschluss

To reassemble your device, follow these instructions in reverse order.
