It is recommended to have had some experience soldering before attempting this replacement.
-
-
Place the device face down on a flat surface.
-
Remove the four 5mm screws at each corner using a #000 Phillips head screwdriver.
-
-
-
Gently wedge a plastic opening tool into the seam along the side of the device.
-
Slide the tool along the seam to pry apart the front and back covers.
-
-
-
A ribbon cable attaches the display screen and the motherboard via a ZIF connector. Remove the tape covering where the ZIF connector connects to the mother board.
-
Use tweezers to disconnect the ZIF connector from the motherboard.
-
-
-
Lay the back panel on a flat surface with the battery, motherboard, and speaker facing up.
-
Use a plastic opening tool to gently pull the battery away from the back panel in order to remove the adhesive that helps the battery stick to the panel.
-
-
-
Use a Phillips #000 screwdriver to remove three 5mm screws that hold the motherboard down to the the back panel.
-
Remove the battery, speaker and motherboard. Place them on a flat surface upside down.
-
-
-

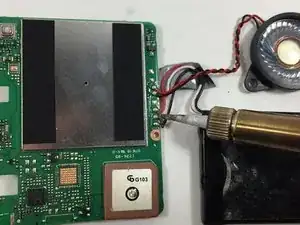

Using the soldering iron, carefully desolder the two wires connected to the speaker.
-
The motherboard should now be separated from both the battery and the speaker.
-
To reassemble your device, follow these instructions in reverse order.
