Einleitung
Werkzeuge
-
-

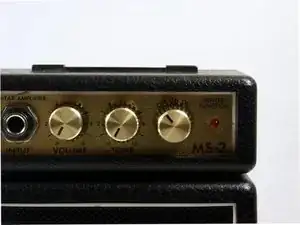

First be sure to turn the power switch to the off position.
-
Do this by turning the leftmost knob counter-clockwise as until the line points to "off."
-
-
-
Now remove the battery.
-

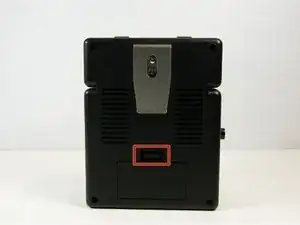

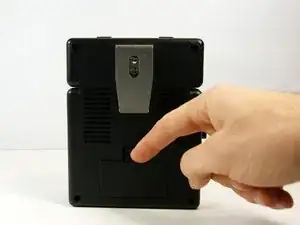

On the back of the device locate the battery cover.
-
Remove it by pushing down on the clip.
-

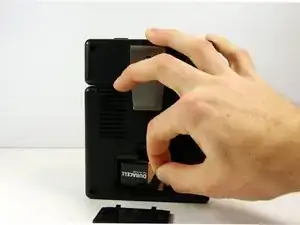

Then pull the piece of fabric until the battery comes out.
-
-
-

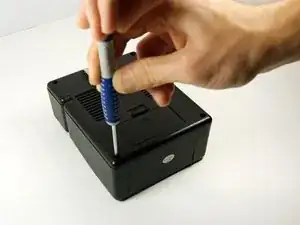

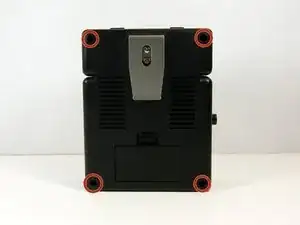

Use the long, skinny phillips head screwdriver to remove the 4 7/16" screws on the back of the device in the four corners.
-
-
-

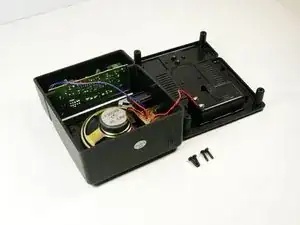

Now pull the back panel off and place it down as shown. Pull the panel straight up so you do not lose the screws.
-
-
-

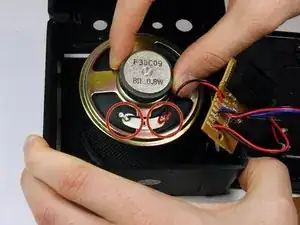

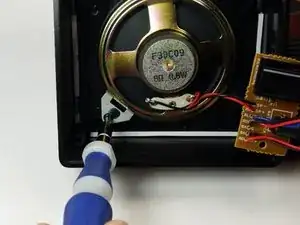

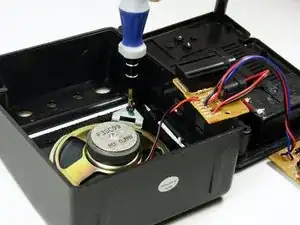

Remove the two 7/16" screws located in the bottom left and top right corners with a phillips head screw driver. After removing the screws, the metal clips will need to be removed as well.
-
To reassemble your device, follow these instructions in reverse order.
4 Kommentare
So where do we find a replacement speaker? If no parts are required what is the point in taking the speaker out?
This speaker unavailable in Marlins. Any online sources. How should an untutored amateur repairer describe the replacement in order to get the right thing
Any speaker that will fit should work. Might want to check to make sure the Watts they consume are the same. I imagine that if you put a speaker in that consumes more Watts you could potentially over heat the power supply or other components.
To turn the device off, turn the rightmost knob counterclockwise, not the leftmost one (which controls the volume).
