Master and Dynamic MW50 Battery Replacement

Geschrieben von: Tyler Guffey
  • Kommentare: 2
Master and Dynamic MW50 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

In order to safely replace or check other parts for this device, it is sometimes necessary to first disconnect the battery. This will also allow you to replace the battery if you determine it to be faulty. You will need to unsolder and solder to replace your battery, and there is an attached guide to show you how. You will be disassembling the right side of the headphones.

  1. nVwcowXbDuVsDWou
    nVwcowXbDuVsDWou
    BrHxpg6sIWDMfQai
    QEUEfcpMA5ApKtxH

    • Pull the cushion off of the desired side by gripping the top of the headphones and pulling the cushion off.

  2. hPCLXEhvrYpaMZHp

    • Remove the four 5mm screws from the earpiece with a Y1 Triwing screwdriver.

  3. SQBlv2qnYkxuegQe

    • Use the Jimmy to lift up the black cover to get inside the device.

  4. JwGi2IYgvVOp6FVM
    JwGi2IYgvVOp6FVM
    lwkMJXGSAWjpT3mu

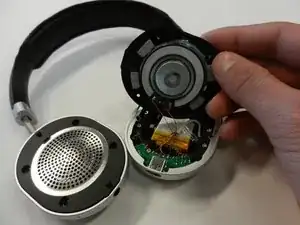

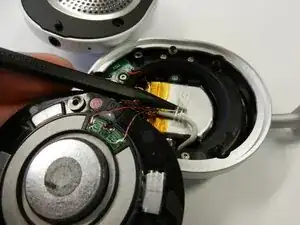

    • Remove the tape attaching the thicker white wire to the battery. You may consider keeping the tape to reattach the wire later.

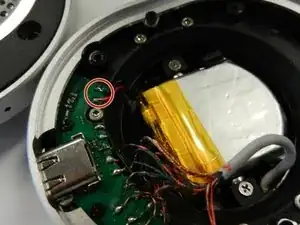

  5. wK3tCX4LkeuntQvB

    • Desolder the two wires circled here.

  6. HElJKJNTkFtvTFBf
    HElJKJNTkFtvTFBf
    dfVWtSMywo5CUDfU

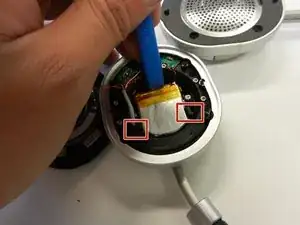

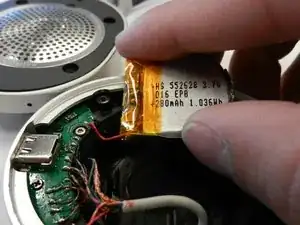

    • Use an iFixit opening tool or something similar to pry out the battery.

    • There are two small tabs circled here that are holding the battery in. Push these down while prying to make the battery come out easier.

    Where to get the replacement battery?

    Jon Allen McCarty -

Abschluss

To reassemble your device, follow these instructions in reverse order.
