Einleitung

If your speaker is not producing sound correctly, it may be necessary to replace the speaker component. This guide will show the five steps for removing the speaker. Soldering is required for this replacement, If you don't know how to solder or desolder, click here for a great guide.

  1. nVwcowXbDuVsDWou
    nVwcowXbDuVsDWou
    BrHxpg6sIWDMfQai
    QEUEfcpMA5ApKtxH
    • Pull the cushion off of the desired side by gripping the top of the headphones and pulling the cushion off.

  2. hPCLXEhvrYpaMZHp
    • Remove the four 5mm screws from the earpiece with a Y1 Triwing screwdriver.

  3. SQBlv2qnYkxuegQe
    • Use the Jimmy to lift up the black cover to get inside the device.

  4. Qmx15YUNinsJV2xH

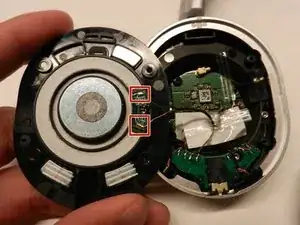

    • Desolder the two wires connected to the speaker.

  5. siEM1cYxgyAlMPkT
    • Use a heating gun to remove the glue from the speaker.

    • Once the glue is removed, gently pull out the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Katie Dunnigan

Mitglied seit: 24/01/19

85 Reputation

Ein Kommentar

This is awesome but Master & Dynamic don’t sell replacement 45mm 32 ohm drivers and won’t share the specs.

If anyone know where to get a replacement which will work well with these headphones please share!!!
