This guide will show you how to properly replace the speaker for the the Mattel Loopz interactive game.

  1. qhNFWrDWCG3Btbys
    • Use a No. 2 Phillips head screwdriver to take out the 1/4" screw that holds the battery cover in place on the bottom of the device.

  2. bBL4ZNt1YN3dULGM
    • Take out the 4 AA Batteries.

  3. QqB4CagZC2wcmEIt
    • Remove red screw covers (13 total) using spudger.

    The thing is symmetrical! Which side should do we remove the covers from?

    will -

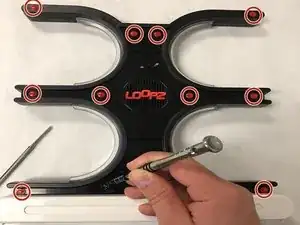

  4. AXBpBnnBABm1x1Wn
    • Remove the thirteen 12.7mm screws with a #1 Phillips screwdriver.

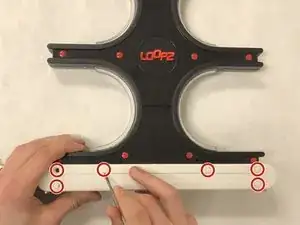

  5. OHtnyTIuHPBBfPCF
    • Remove 6 white caps using spudger to reveal screws underneath.

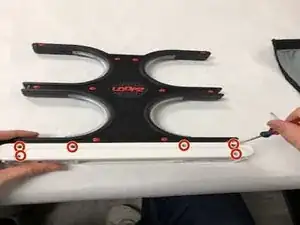

  6. SD5eLJxTLxGCOiQ1
    • Remove the six 16mm screws with a #1 Phillips screwdriver.

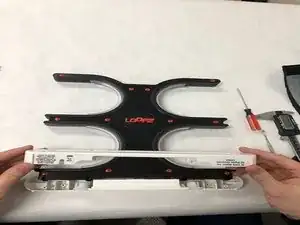

  7. ceGx6vOSuZOwqiiu
    • Remove the white cover. Be sure to remove the front and the back.

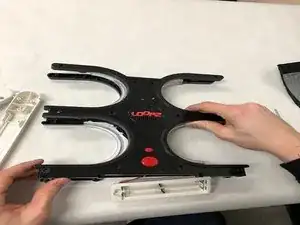

  8. aUaFvuJwmkmsM2cw
    • Remove the black, plastic cover to reveal the internal electronics as shown.

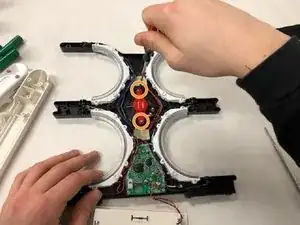

  9. xGQrZDGyAj6gy44L
    • Remove the two 6.4mm screws with a #1 Phillips screwdriver.

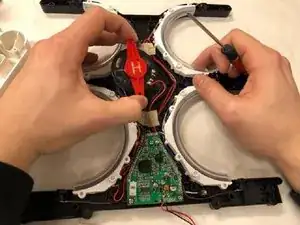

  10. IGwKUHFkRpbfkhF3
    • Remove the speaker as shown.

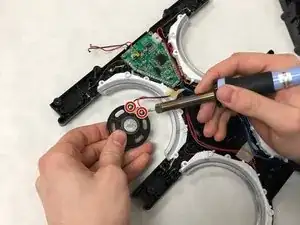

  11. 1eUOQ1oCFfJq4NGb
    • Use a soldering iron to desolder the red and black speaker wires from the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
