Memorex Mi3X Minimove Battery Wire Replacement

Geschrieben von: Jeyca Domingo
  • Kommentare: 1
Memorex Mi3X Minimove Battery Wire Replacement

Schwierigkeitsgrad

Difficult

Schritte

18

Zeitaufwand

1 Stunde

Einleitung

If the Minimove is not turning on when new batteries are used, the battery wires may have come loose or disconnected. With this guide, you will replace the battery wires for the Minimove by soldering. For more information on soldering reference the iFixit soldering guide.

  1. KmQcd352mVxIQeuA

    • Remove the two plastic screw covers on the back of your Minimove by inserting the flat end of your plastic opening tool between the screw cover and the back panel and prying it out.

    • It may be helpful to pull the plastic covers out with your fingers once the top of the cover has been revealed by using the plastic opening tool.

  2. AefiKOflRYyH4eTk

    • This step will require at least a 30 mm Phillips #1 screwdriver.

    • Use a Phillips #1 screwdriver to remove the two 12 mm screws.

  3. KSj5nDHGMHNFVXuR

    • The bottom panel screws and screw covers must be removed in order to access the back panel.

    • Remove the four grey screw covers by inserting the plastic opening tool underneath the screw covers and rotating around the circumference.

    • The adhesive on the screw covers should be sticky enough to put the covers back on when re-assembling the device.

  4. 4pkB2QeWnc5MwUnx

    • Remove the two 8 mm screws with a Phillips #1 screwdriver.

    • Remove the two 12 mm screws with a long Phillips #1 screwdriver.

    One of my 12mm screws appears to be stripped, and neither of screwdrivers that are both long enough and narrow enough to reach it can turn it. Any ideas how to get it out? I have the other 5 screws out …

    Lotus Flower -

  5. IVFeO1lmvBweqDDB
    IVFeO1lmvBweqDDB
    mQGSMbaSCMD2aFlc

    • To remove the back panel, use the plastic opening tool and gently work around the outline of the panel. The outline wraps around the sides and can be spotted at the top back of the device.

  6. rQUuAUtT6BQT4Kji
    rQUuAUtT6BQT4Kji
    hMBIATPuKIlLWpvZ
    TKoGS1kiMMqQErHW

    • Be careful not to use too much force to remove the panel. The antenna wire is connected to the inside of the panel and may be damaged or ripped off if the panel is not gently removed.

    • After loosening the panel with the plastic opening tool, use moderate force to pry open the panel with your hands.

    • Carefully pull the panel off.

  7. e5MJgcPCLkGnxR2L

    • Use a Phillips #1 screwdriver to detach the wire from the back panel by removing the 8 mm screw connecting the wire to the antenna.

  8. ffPi5rJIPWHVRV3T
    ffPi5rJIPWHVRV3T
    MtdwfXag11Fj6UHt

    • If desired, the antenna can now be removed by pulling inwards and horizontal to the panel bottom.

  9. G1amdQisSBuEBnZN

    • Use the Phillips #1 screwdriver to remove the four 12 mm screws.

    • Remove the five 6 mm screws at the top with the same screwdriver.

  10. UsQuJTrdWgcT52ke

    • Use a Phillips #1 screwdriver and remove the two vertical 8 mm screws from the top.

  11. Cx1YDj43ToVpsAwQ
    Cx1YDj43ToVpsAwQ
    P3HM5Dn3Ixr2V64B

    • Pry open the inner back panel by inserting the plastic opening tool in the crack at the top corner.

    • Use moderate force to pry it open and take the cover off.

  12. uOuYgeINaxa3aMpy
    uOuYgeINaxa3aMpy
    firheRGKkXHabWne

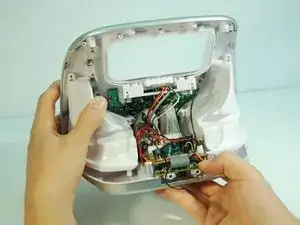

    • Be careful when removing the bottom panel. The plastic tab that runs alongside the right speaker between the upper brown radio motherboard and the lower green audio daughterboard may damage the device if the bottom panel is improperly removed.

    • Remove the bottom panel of the boombox by carefully pulling the panel straight backwards from the boombox until the motherboard and daughterboard are free.

  13. LWZLoUe3FMKGJarP
    LWZLoUe3FMKGJarP
    OUZTHGhu22ujrk4D
    PZVOBU1j3vI2DUIb

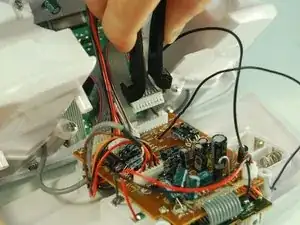

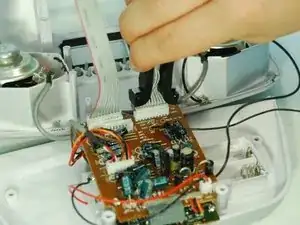

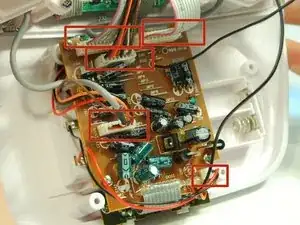

    • Pull out the 5 white pinhead connectors using an IC (Integrated Circuit) extractor. Pinch the IC extractor just under the top lip of the wire housing.

    • There are two 10 pin connectors, one 8 pin connector, one 7 pin connector, and one 2 pin connector.

    • When reassembling, there is only one way to reinsert the pinhead connectors. Make sure the orientation matches that of the receiving connector on the motherboard.

  14. FmxrUYtOTlaVQ2rU
    FmxrUYtOTlaVQ2rU
    1W1AR445m2CNLkBw

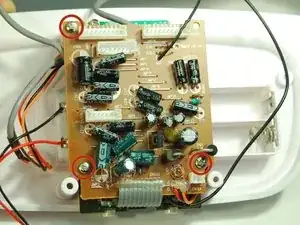

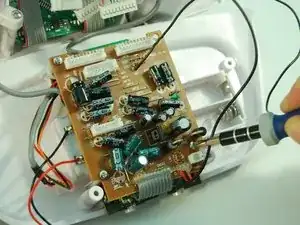

    • Use the Phillips #1 Screwdriver to remove the three 8 mm screws holding the motherboard in place.

  15. xEJdqsDAlyCLuYqn
    xEJdqsDAlyCLuYqn
    EPqVkKxSUM3NcOPy

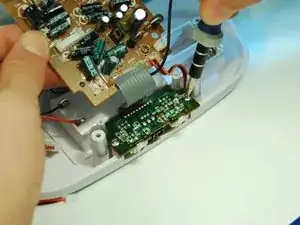

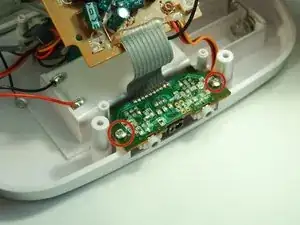

    • Detach the smaller green audio port daughterboard by removing the two 8 mm screws with a Phillips #1 screwdriver.

  16. SUhNFR2GUTONA5BN

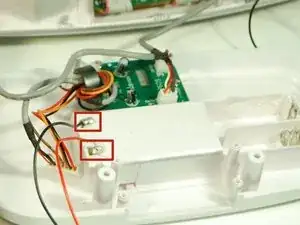

    • The black ground wire is located at the top by the speaker daughterboard and the red power wire is located below.

    • Locate two wires, one red and one black, located on the left side of the battery pack.

  17. GOjLsBIMKsoIPmJZ

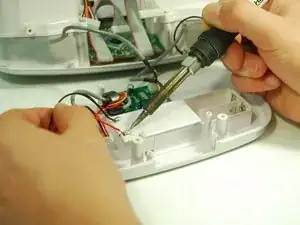

    • Be careful when using the soldering iron. Do not let it come into contact with the boards or your skin.

    • Heat up the soldering iron to around 600 Fahrenheit / 315 Celsius.

    • Place the tip of the soldering iron on the solder where the wire is connected and melt it until you can detach the wire.

    • Visit the soldering iron guide for more help with desoldering and soldering.

  18. mtCXpYcYJijIcBxU

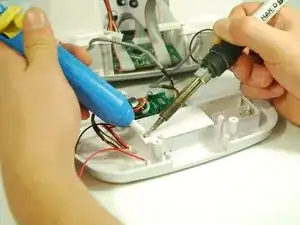

    • After detaching the wire, move it away from the device.

    • Use a desoldering pump while the solder is still liquid to remove excess solder.

Abschluss

To reassemble your device, follow these instructions in reverse order.
