Memorex Mi3X Minimove Speakers Replacement

Geschrieben von: Alec Cheung
  • Kommentare: 1
Memorex Mi3X Minimove Speakers Replacement

Schwierigkeitsgrad

Difficult

Schritte

21

Zeitaufwand

50 Minuten

Einleitung

The steps in this guide will instruct you on how to disassemble the boombox and remove the speakers. In the guide, we focus on removing the left speaker, but the instructions given are also applicable to the right speaker. Extensive disassembly and very basic soldering is required. The environment preferred is a clear worktable space.

  1. KmQcd352mVxIQeuA

    • Remove the two plastic screw covers on the back of your Minimove by inserting the flat end of your plastic opening tool between the screw cover and the back panel and prying it out.

    • It may be helpful to pull the plastic covers out with your fingers once the top of the cover has been revealed by using the plastic opening tool.

  2. AefiKOflRYyH4eTk

    • This step will require at least a 30 mm Phillips #1 screwdriver.

    • Use a Phillips #1 screwdriver to remove the two 12 mm screws.

  3. KSj5nDHGMHNFVXuR

    • The bottom panel screws and screw covers must be removed in order to access the back panel.

    • Remove the four grey screw covers by inserting the plastic opening tool underneath the screw covers and rotating around the circumference.

    • The adhesive on the screw covers should be sticky enough to put the covers back on when re-assembling the device.

  4. 4pkB2QeWnc5MwUnx

    • Remove the two 8 mm screws with a Phillips #1 screwdriver.

    • Remove the two 12 mm screws with a long Phillips #1 screwdriver.

    One of my 12mm screws appears to be stripped, and neither of screwdrivers that are both long enough and narrow enough to reach it can turn it. Any ideas how to get it out? I have the other 5 screws out …

    Lotus Flower -

  5. IVFeO1lmvBweqDDB
    IVFeO1lmvBweqDDB
    mQGSMbaSCMD2aFlc

    • To remove the back panel, use the plastic opening tool and gently work around the outline of the panel. The outline wraps around the sides and can be spotted at the top back of the device.

  6. rQUuAUtT6BQT4Kji
    rQUuAUtT6BQT4Kji
    hMBIATPuKIlLWpvZ
    TKoGS1kiMMqQErHW

    • Be careful not to use too much force to remove the panel. The antenna wire is connected to the inside of the panel and may be damaged or ripped off if the panel is not gently removed.

    • After loosening the panel with the plastic opening tool, use moderate force to pry open the panel with your hands.

    • Carefully pull the panel off.

  7. e5MJgcPCLkGnxR2L

    • Use a Phillips #1 screwdriver to detach the wire from the back panel by removing the 8 mm screw connecting the wire to the antenna.

  8. ffPi5rJIPWHVRV3T
    ffPi5rJIPWHVRV3T
    MtdwfXag11Fj6UHt

    • If desired, the antenna can now be removed by pulling inwards and horizontal to the panel bottom.

  9. G1amdQisSBuEBnZN

    • Use the Phillips #1 screwdriver to remove the four 12 mm screws.

    • Remove the five 6 mm screws at the top with the same screwdriver.

  10. UsQuJTrdWgcT52ke

    • Use a Phillips #1 screwdriver and remove the two vertical 8 mm screws from the top.

  11. Cx1YDj43ToVpsAwQ
    Cx1YDj43ToVpsAwQ
    P3HM5Dn3Ixr2V64B

    • Pry open the inner back panel by inserting the plastic opening tool in the crack at the top corner.

    • Use moderate force to pry it open and take the cover off.

  12. 3eJjllU6VTYSGrKv
    3eJjllU6VTYSGrKv
    CpdgTZga4lSomWVe

    • A plastic sheet is in between the radio motherboard (the upper brown board) and the audio port daughterboard (the lower green board) coming from the right speaker housing. Be careful when removing the back panel as to not damage the boards.

    • Remove the bottom panel of the boombox by carefully pulling the panel straight backwards from the boombox until the boards are free.

  13. jHt2yPp5ShE3dGdo
    jHt2yPp5ShE3dGdo
    uryWUQ5lpAh2Vyyu
    iH1LNJtiuafZmL2E

    • Pull out the 5 white pinhead connectors using an IC (Integrated Circuit) extractor. Pinch the IC extractor just under the top lip of the wire housing. There are two 10 pin connectors, one 8 pin connector, one 7 pin connector, and one 2 pin connector.

    • When reassembling, there is only one way to reinsert the pinhead connectors. Make sure the orientation matches that of the receiving connector on the motherboard.

  14. gREHTAMXHDVJqfMh
    gREHTAMXHDVJqfMh
    HroVESHlRq43bGML

    • Use the Phillips #1 screwdriver to remove the three 8 mm screws holding the motherboard in place.

  15. 2TmuyDWRweGElCVq
    2TmuyDWRweGElCVq
    35TPpdGoiReshhDy

    • Detach the smaller green audio port daughterboard by removing the two 8 mm screws with a Phillips #1 screwdriver.

  16. eOQGxlAykNseocpr
    eOQGxlAykNseocpr
    CFNKPGmdc2ZAMrhb

    • Detach the black ground wire by desoldering it from the inner case.

    • Visit the soldering guide for help with desoldering.

  17. 4fGV51LpIJ56wtON
    4fGV51LpIJ56wtON
    RkHidWilm6JhhvOM
    C5MeQuxRNtEDlwnL

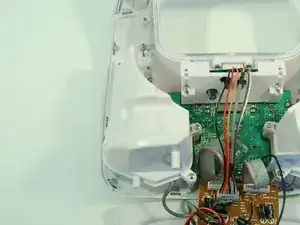

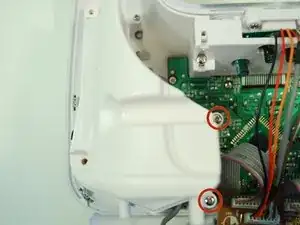

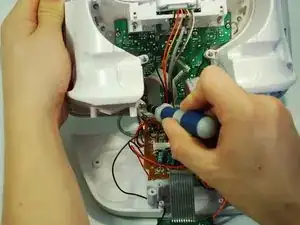

    • Use a Phillips #1 screwdriver to unscrew the two 8 mm screws on the speaker housing.

  18. LHYkljVZZJPcATCY
    LHYkljVZZJPcATCY
    2HQMrYELCDkugOZB
    PoclBdkeyonWjDxm

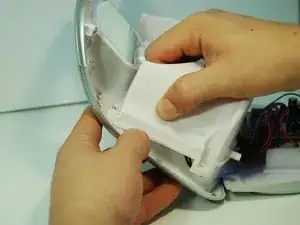

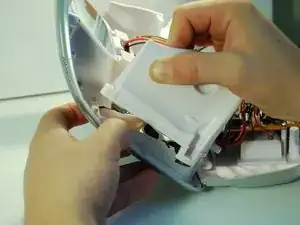

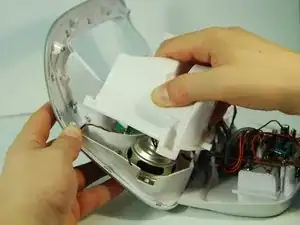

    • The speaker housing may require more force than expected to remove because it is held together by a thin black rubber adhesive. Do not be afraid of using more force if you are unable to remove it on the first try.

    • When the housing is removed the rubber adhesive will come off. This should not effect your device's functionality in any way.

    • Grab the outside of one speaker housing and pull outwards (starting with the top) while holding the main casing still with your other hand.

  19. BwlgLA5gmDy4LqbP
    BwlgLA5gmDy4LqbP
    R52IdPvYBhZkDCoj

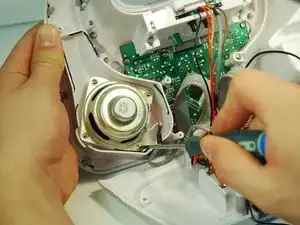

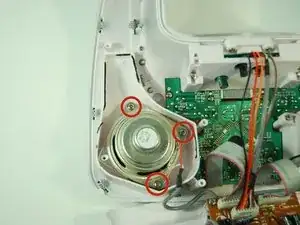

    • Unscrew the three 8 mm circled screws that are holding the speaker to the plastic casing.

  20. 6O1DRsSHgURefEvx

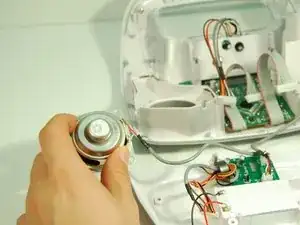

    • The speaker is still attached to the speaker board in the boombox. Do not attempt to move the speaker too far away from the boombox.

    • Remove the speaker from the housing and place it next to the boombox.

  21. QW3Lqe1KNVryMbKo
    QW3Lqe1KNVryMbKo
    ZmKsxNZ5DQTKCOIN

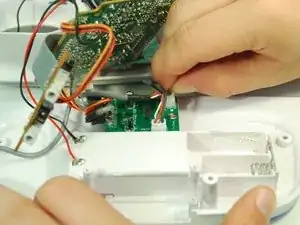

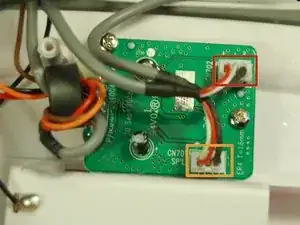

    • The upper wire connector, marked in red, connects the left speaker to the boombox. The lower wire connector, marked in orange, connects the right speaker to boombox.

    • Do not remove the wire connector from the speaker daughter board by pulling on the wire. This may damage the wire and the board.

    • Use your hands to grip the plastic wire housing and detach the upper speaker wire connector from the speaker daughterboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
