Merch Source Projector Entertainment II Motherboard

Geschrieben von: Michael Tan

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

15 Minuten - 1 Stunde

Einleitung

Follow this guide to repair components on the logic board. All you will need a solder gun and steady hands.

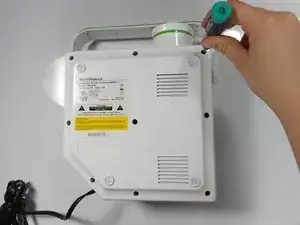

Flip the projector onto its back and unscrew the nine 15mm screws using the Phillips #0 screw driver.

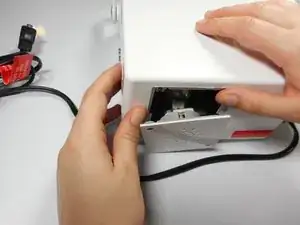

Flip the projector right side up and unscrew the two 12mm screws on the light bulb panel located at the rear of the projector with a Phillips #0 screw head.
The bottom right panel screw does not come completely out the panel door.

Use the plastic opening tool to gently disengage the ribbon cable from its back housing.
Once the ribbon cable is disengaged gently pull the cable off the motherboard.
Once the housing is disengaged, the ribbon cable should slide out easy. Do not pull too hard on the ribbon cable as it is very fragile.

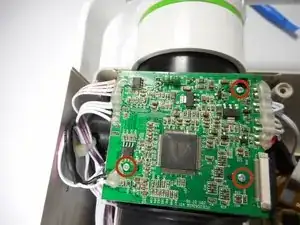

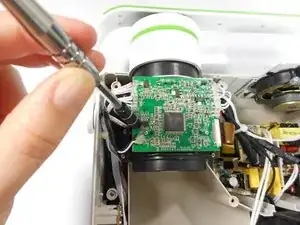

Unscrew the three 6 mm screws from the motherboard with the Phillips #0 screwdriver.
Be sure not to damage any of the wires atached to the motherboard.

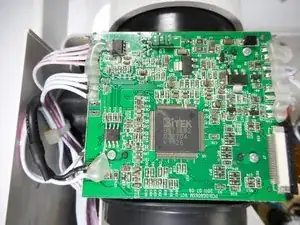

Solder off all of the connections on the motherboard with a soldering iron.
Once connections are soldered off, the motherboard should be detached and ready for replacement.
Need some help? Follow this guide to learn soldering basics.
While soldering the metal connections can get very hot. Never touch the iron with your hand. also make sure that the projector is fully turned off and not plugged in.
If there is hot glue on top on the connection with the motherboard, you will need to peel it off using your fingers.
