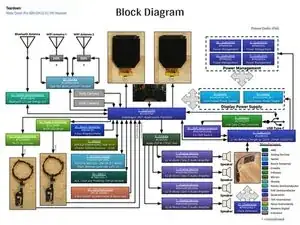

Here's a chip identification summary for the Meta Quest Pro headset and controller. Check out our Meta Quest Pro teardown for more info.
Special thanks to community member CChin for his contribution!
-
-

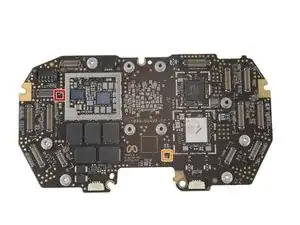

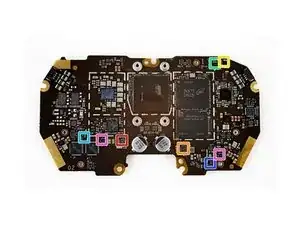

Qualcomm SXR2155P Snapdragon XR2+ Applications Processor
-
Micron MT62F1536M64D8CL-026 WT:B 12 GB LPDDR5 SDRAM Memory
-
Western Digital SDINFDO4-256G 256 GB NAND Flash Memory (UFS)
-
Lattice Semiconductor LIF-MD6000-6 CrossLink FPGA
-

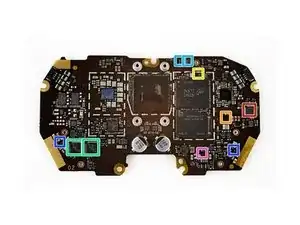

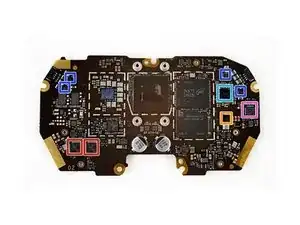

Qualcomm PM8150L Power Management
-
Cmedia CM7120 Audio DSP & CODEC Hub
-
Analog Devices MAX98360AENL 3.2 W Mono Class-D Audio Amplifier
-
-
-
Infineon CYPD3177 USB Type-C Port Controller
-
Qualcomm SMB1355 Li-Ion Battery Charger w/ Quick Charge 2.0/3.0/5.0
-
Qualcomm PM3003A Power Management
-
Texas Instruments TLC59401 16-Ch. LED Driver
-
Texas Instruments TS3USB221 USB 2.0 SPDT Analog Switch
-
Awinic AW37504CSR ? Dual Output Power Supply
-
Analog Devices MAX77827B 1.6 A Buck Boost Converter
-
-
-
Texas Instruments TPS62148 2.0 A step-down converter
-
Texas Instruments TPS61378-Q1 4.8 A synchronous boost converter
-
SG Micro SGM66056 2.2 MHz synchronous boost converter
-
OmniVision WS4694C 28 V over-voltage & over-current protection load switch
-
SG Micro SGM2578AAD 2 A load switch
-
Texas Instruments TLV7031 single comparator
-
Texas Instruments TLV9054 quad 5-MHz rail-to-rail operational amplifier
-
-
-
SG Micro SGM4T245 4-Bit Bus Transceiver
-
SG Micro SGM2045-1.20 300 mA / 1.2 V LDO regulator
-
SG Micro SGM2045-3.00 300 mA / 3.00 V LDO regulator
-
Nexperia 74AUP3G34 triple buffer
-
Nexperia 74LVC1G07 single buffer
-
NXP Semiconductor NX30P0121UK 3 A over-voltage protection
-
Awinic AW32710CSR over-voltage protection load switch
-
-
-
onsemi FSA4480UCX USB Type-C analog switch
-
SG Micro SGM4553 2-bit bidirectional voltage-level translator
-
OmniVision DPDT analog switch (possibly)
-
-
-
Murata LBEE5xx1WK ? type 1WK Bluetooth/WiFi module
-
Nordic Semiconductor nRF52840 Bluetooth 5.3 low-energy SoC
-
Qualcomm PM8250 power management
-
Qualcomm PM8150B power management
-
Qualcomm PMK8002 ? clock generator
-
Texas Instruments TCA6418E 18-bit I/O expander
-
Renesas SLG59M1717V 5 A load switch
-
-
-

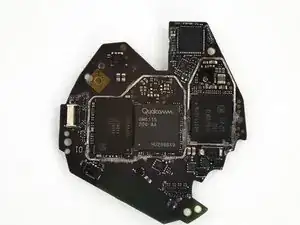

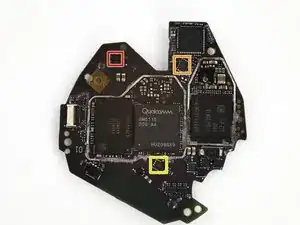

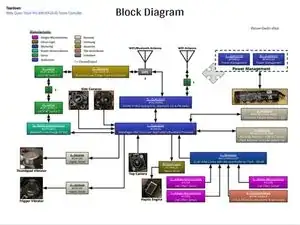

Qualcomm SM6115 Snapdragon 662 Octa-Core applications/baseband processor
-
Samsung K4U8E3S4AD-MGCL 1 GB LPDDR4X SDRAM memory
-
Samsung KLM4G1FETE-B041 4 GB eMMC NAND flash memory
-

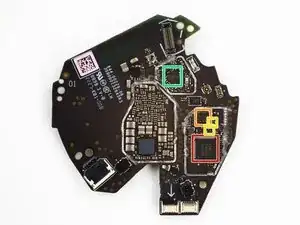

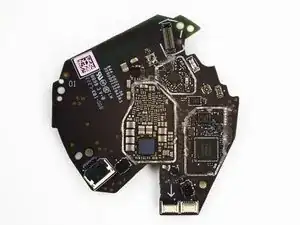

Qualcomm PMI632 power management
-
Microchip ATSAMD20G17 32-bit microcontroller
-
Renesas DA7281 haptic driver
-
Texas Instruments SN74AUC1G32 single 2-input OR gate
-
-
-
-
-
Nordic Semiconductor nRF52832 Bluetooth Low-Energy 5.3 SoC
-
Skyworks SKY66111-11 Bluetooth Low Energy front-end module
-
Probably Qorvo QPC8019Q DPDT RF switch
-
Qualcomm WCN3950 WLAN 802.11a/b/g/n/ac, Bluetooth 5.0, & FM radio
-
-
-
Cmedia CM7120 Audio DSP & CODEC Hub
-
Analog Devices MAX98360A Class-D Audio Amplifier
-
Qualcomm SMB1355 Battery Charger
-
Infineon CYPD3177 USB Type-C Port Controller
-
Texas Instruments TLC59401 16-Ch. LED Driver
-
