Microsoft Surface 3 Display austauschen

Geschrieben von: Harold Hall
  • Kommentare: 25
Microsoft Surface 3 Display austauschen

Schwierigkeitsgrad

Sehr schwierig

Schritte

5

Zeitaufwand

1 - 2 Stunden

Einleitung

Diese Anleitung zeigt dir, wie du das Display austauschen kannst.

  1. i3gUIJqKOV24tRAa
    i3gUIJqKOV24tRAa
    4hMYe1pSQOSBwrBy

    • Erwärme einen iOpener, wie in der iOpener Anleitung angegeben.

    • Lege den warmen iOpener auf die Kanten des Bildschirms. Die Wärme verringert die Klebekraft des Klebers zwischen Display und Gehäuse.

    no, I didn't break the screen upon removing batteries.

    Robert Hale -

  2. DVPciF4CvQJmoTBb
    DVPciF4CvQJmoTBb
    Slju3QQMa2gfLGZP

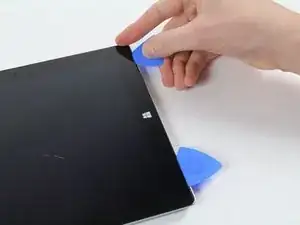

    • Schiebe ein iFixit Opening Pick (Plektrum) unter die Kante des Bildschirms bei der Lausprecherbuchse.

    • Die erfordert relativ große Kraftanstrengungen. Ein Fingernagel hilft am Anfang beim Anheben.

    • Wenn du das Plektrum gerade nach unten an der Kante hineinschiebst, wird er durch das Lautsprechergitter gehen und eventuell den Lautsprecher beschädigen. Versuche das Plektrum in einem flachen Winkel hineinzuschieben.

  3. qBJP5nD4H5yRZr3T
    qBJP5nD4H5yRZr3T
    usiC5WA6MiTnetEY

    • Arbeite dich vorsichtig um das Gerät herum, dazu brauchst du Plektren, einen warmen iOpener, und Glück.

    • Sollte das Glas auf einer Seite gebrochen sein, versuche es erneut von der anderen Seite, damit du auf dieser Seite eine saubere nicht gebrochene Kante hast.

    • Auch wenn das Glas dieses Displays keine scharfen Kanten hat, wenn es gebrochen ist, bleibt es doch zerbrochenes Glas, mit dem man vorsichtig umgehen sollte.

    Be very careful on the top edge where the front-facing camera is. The antenna’s for all wireless components are pressed into the adhesive on both the right and left of the camera. I tore off a piece of my wifi antenna here.

    Adam Pyle -

  4. QWQbliwkeU6baZER

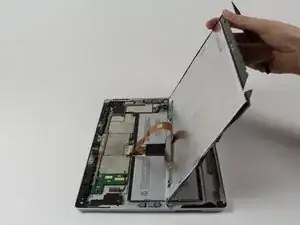

    • Drehe das Display um, so dass die darunter liegenden Teile gut zugänglich sind.

    • Nimm das Display nicht heraus, denn es ist noch immer mit der Hauptplatine verbunden.

    • Falls du das Display ersetzt, oder es einfach aus dem Weg haben willst, fahre mit den in den Schritten der Anleitung zum Ersetzen des Displays fort.

    Please note that the WIFI antenna can become stuck to the display. It is located on the black plastic to the right of the camera and can be easily disconnected accidentally. Excellent guide otherwise.

    Gary Gleeson -

    I second this comment. Didn’t know it was there. The surface 3 pro guide clearly warns of this in the takeapart.

    Brian Carlson -

  5. RWKjhB46ZT6mHCR3
    RWKjhB46ZT6mHCR3
    tXBpgnN4wS33iQ2E
    HkohIfbbV1Lnmfx3

    • Du musst jetzt die RF Abschirmung entfernen, sie wird wahrscheinlich bei diesem Vorgang beschädigt werden. Du kannst sie aber später wieder in die richtige Form zurückbiegen.

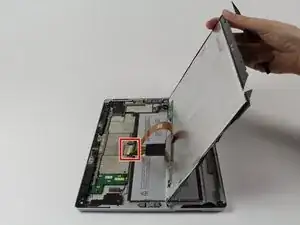

    • Finde die Stelle, wo das Display immer noch an der Hauptplatine befestigt ist.

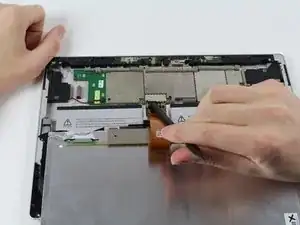

    • Hebele die Halterung der RF Abschirmung mit dem flachen Ende des Spudgers hoch.

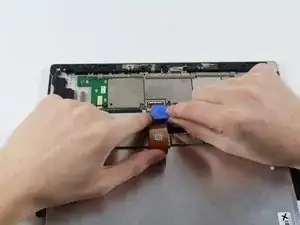

    • Löse mit einem Plektrum die Raste des Displays an der Hauptplatine.

    • Dieses kleine schwarze Teil (die Sicherungsleiste für den ZIF-Verbinder) ist jetzt frei. Achte sehr gut darauf, dass du es nicht verlierst.

    Don’t use your spudger like in the picture unless you want to destroy the ribbon cable socket.

    Bryan Engelmann -

    Then what should you use?

    patrickwalley -

    A spudger worked fine for me. As long as you’re careful you should be fine.

    What I did mess up though was the wifi antenna. I was extra extra careful when working on this area but I still managed to break the wifi cable due to the fact that the screen has copious amounts of glue / sticky tape stuck to the top of it which makes it near impossible to remove the screen without causing damage - Way to go Microsoft! >:(

    Clems -

    Noob here. How do you get a new replacement screen back on? Press and pressure onto the existing adhesive?

    Robin Tan -

    If you loose the little black piece (the latch for the ZIF connector) :-( Where can you buy a new one?

    Gordon Lenihan -

    The RF cable shield can be taken out. It is only clipped on the sides. If you careful enough to take it out, it will not be deformed or you formed it back in place as you want.

    You may not want also to installed it back (i did mine without the shield) Putting a kapton tape or any tape in the ZIF connector will do the job.

    It is more risky breaking the ZIF lock if you poke it with a pick while the shield is installed.

    But, then again it will be your choice. Goodluck.

    Jojo -

    Decimated the zif connector, completely broke off the locking clip. Looking for ways to attach the ribbon securely so it makes contact with the pins and stays put. I put thin double sided adhesive to hold it down, then sponge adhesive to the shield and clipped that back down, but the unit still won’t turn on.

    ALSO when I try to put the ribbon back on, the unit will buzz a moment telling me it’s live! Is there any way to disconnect the power without removing the battery while I work on this??

    kevin messerschmidt -

    How do I put the zif connector back on

    Michael Hernandez -

Abschluss

Um dein Gerät wieder zusammenzusetzen, folge den Schritten in umgekehrter Reihenfolge.
