Microsoft Surface Pro X Volume Button Cable Replacement

Geschrieben von: Kyle Smith

Kommentare: 2

Microsoft Surface Pro X Volume Button Cable Replacement

Schwierigkeitsgrad

Moderate

Schritte

118

Zeitaufwand

2 - 3 Stunden

Einleitung

Follow this guide to remove and replace the volume button cable on a Microsoft Surface Pro X.

Warning: Make sure to remove the SSD from the Surface before starting any repairs. This will disconnect the battery and prevent damage to the Surface.

For this repair, you’ll need to apply new thermal paste to the CPU during reassembly. Make sure you have new thermal paste and either high-concentration isopropyl alcohol or a specialized thermal paste cleaner.

For your safety, discharge the battery below 25% before disassembling your Surface. This reduces the risk of a dangerous thermal event if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.

Werkzeuge

Ersatzteile

Schritt 1

Make sure your Surface Pro X is turned off, and laying screen-side down on a soft surface.
After turning off your device, make sure to remove the SSD from the Surface before starting any repairs. This will disconnect the battery and prevent damage to the device.
Lift the kickstand to at least a 90° angle, so that it is perpendicular to the Surface's screen. The further you open the hinge, the easier it is to access the SSD and SIM card door.

Where can one find these drives to replace the one that comes with it?

daveniezby - 07/12/19

I think I found mine on Amazon

Tom Manson - 06/03/20

Schritt 2

Insert a SIM card eject tool or a paperclip into the small hole in the bottom right corner of the SSD and SIM card door, located near the bottom right corner of the Surface.
Press firmly to open the door.

Schritt 3

Lift the SSD and SIM card door and remove it from the Surface.
When reinstalling the door, first insert the end of the door with the small tab into the Surface just above the SSD, then lay the rest of the door down.

Schritt 4

Use a T3 Torx screwdriver to remove the 2.4 mm screw securing the SSD.

Schritt 5

Use your finger or a spudger to lift the SSD just enough that it clears the edges of its recess.
Don't lift the SSD more than you have to—doing so may damage the SSD or its socket.
Gently pull the SSD straight out of its socket.
When reinstalling the SSD, be sure it is properly seated before reinstalling its retaining screw.

Schritt 6

Wear safety glasses to protect your eyes, and be careful not to damage the LCD screen.
If your display glass is cracked, keep further breakage contained and prevent bodily harm during your repair by taping the glass.
Lay overlapping strips of clear packing tape over the Surface’s display until the whole face is covered.
This will keep glass shards contained and provide structural integrity when prying and lifting the display.
Do your best to follow the rest of the guide as described. However, once the glass is broken, it will likely continue to crack as you work, and you may need to use a metal prying tool to scoop the glass out.

Schritt 7

Wear safety glasses during the screen removal procedure in case the glass shatters while you're working.
There is a significant chance that you may break the unreinforced and fragile display panel during this procedure. Be sure to work slowly and be extremely careful while slicing through the adhesive.
Place your tablet on your work surface so that the screen is facing up.
Apply a suction cup to the screen next to the right speaker grille.

Schritt 8

Place your hand on the screen next to the suction cup to secure the Surface while you lift up the screen.

Schritt 9

Don't insert the opening pick more than 3 mm while cutting through the adhesive on the right, bottom, and left edge.
Lift up on the suction cup to create a gap between the screen and the frame.
The gap only needs to be wide enough to slide in an opening pick.
Insert an opening pick about 2 mm into the gap. Leave the opening pick in the gap to prevent it from resealing.

Schritt 10

Insert a second opening pick into the gap between the screen and the frame.
Slide the pick down the right edge of the Surface to slice through the adhesive under the screen.
Leave this opening pick in the right edge to prevent the adhesive from resealing.

Schritt 11

Don't insert the pick more than 3 mm while cutting through the screen adhesive on the bottom edge or you may damage delicate components on the screen.
Insert a third opening pick into the bottom right corner and slide it around the corner toward the bottom edge.

Schritt 12

Slide the pick along the bottom edge of the Surface to cut through the screen adhesive.
Leave this pick in the bottom edge to prevent the adhesive from resealing.

Schritt 13

Insert a fourth opening pick into the bottom left corner and slide it around the corner toward the left edge.
Slide the pick along the left edge of the Surface to cut through the screen adhesive.
Leave this pick in the left edge to prevent the adhesive from resealing.

Schritt 14

Don't insert the opening pick more than 10 mm while cutting through the adhesive on the top edge. Don't insert the pick more than 3 mm near the speaker grille.
Insert a fifth opening pick into the top left corner and slide it around the corner toward the top edge.
Slide the pick along the top edge of the Surface to cut through the screen adhesive.

Schritt 15

Do not remove the screen yet. It is still connected to the motherboard by the display cable. Keep the screen as close as possible to the Surface's frame to avoid straining the display cable.
Avoid hitting the battery with the screen during this procedure. A punctured or bent battery may leak dangerous chemicals or cause a thermal event.
Lift up the top edge of the screen so that it is at a 30° angle with the frame.
If you encounter any resistance, stop and check that all the adhesive is separated. Use an opening pick to cut through any remaining adhesive.
Rotate the screen so that its bottom edge is in the middle of the frame. The screen should be perpendicular to the frame.
Rotate the screen 90° so that it is facing down. Place the screen on the frame.

Schritt 16

Insert a tine of a pair of pointed tweezers under the bottom right corner of the display cable shield (where the display cable is oriented down).
Lift up the corner to detach it from the screen.

Schritt 17

Repeat the previous step for the bottom right corner.

Schritt 18

Remove the display cable shield from the screen.
If the display cable shield isn't completely detached from the screen, pry up additional areas around the edges of the shield.

Schritt 19

Insert the pointed end of a spudger under the right side of the display cable press connector.
Lift up the right side of the press connector to detach it from the display cable socket on the screen.

Schritt 20

Repeat the previous step on the left side of the display cable connector to fully disconnect it from the screen.
To re-attach press connectors like this one, carefully align and press down on one side until it clicks into place, then repeat on the other side. Do not press down on the middle. If the connector is misaligned, the pins can bend, causing permanent damage.

Schritt 21

Remove the screen from the frame.

Schritt 22

The left and right speaker grilles may be attached to the Surface's frame or the screen.
If you are going to replace a speaker grille that is attached to the frame, follow these steps to remove it:
Use an opening pick to cut through the adhesive under the grille.
Remove the speaker grille.
Repeat for the other speaker grille.

Schritt 23

If you are going to replace or transfer a speaker grille that is attached to the screen, follow these steps to remove it:
Use an opening pick to cut through the adhesive under the grille.
Remove the speaker grille.
Repeat for the other speaker grille.

Schritt 24

If you are going to replace the screen adhesive, follow these steps:
Apply a few drops of high-concentration (90% or higher) isopropyl alcohol to the adhesive.
Use a cotton swab or the flat end of a spudger to scrape away the adhesive.
Use a lint-free cloth or coffee filter to wipe away any remaining adhesive.
Allow the surface to dry completely before applying replacement adhesive.
Apply new adhesive strips or pre-cut adhesive to the frame where the old screen adhesive was located.

Schritt 25

If you are going to reinstall this sticker during reassembly, try to keep it as intact as possible.
Lift up the edge of the heat sink sticker closest to the bottom edge of the Surface.

Schritt 26

Lift up the center of the sticker.

Schritt 27

Lift up one side of the sticker attached to the heat sink.
Repeat for the other side. The sticker should now be fully detached.
Remove the sticker.

Schritt 28

If you are going to reinstall these stickers during reassembly, try to keep them as intact as possible. These stickers can tear easily during removal.
Use an opening tool to lift up the edge of one of the small black stickers covering the four screws in the center of the heat sink.
You only need to lift the edge enough to grip it with tweezers.

Schritt 29

Use a pair of blunt tweezers to remove the sticker covering the heat sink screw.
Repeat this process for the other three stickers.

Schritt 30

Remove the 14 screws securing the heat sink:
Eight 2.2 mm T3 Torx screws
One 2.0 mm T3 Torx screw
One 3.2 mm T3 Torx screw
Four 2.5 mm T6 screws

Schritt 31

The heat sink is adhered to the CPU with thermal paste.
Insert an opening pick about 2 mm under the heat sink at its bottom edge directly to the left of the display cable.
The opening pick should be between the heat sink and the frame surrounding the motherboard.
Slide the opening pick to the left toward the heat pipe to detach the heat sink from the CPU.

Schritt 32

Swing the bottom edge of the heat sink up so that it is at about a 10° angle with the frame.

Schritt 33

Rotate the heat sink about 10° clockwise so that it can be removed from the foam adhesive strip covering the top left screw hole.
Remove the heat sink from the Surface.
During reassembly, slide the heat sink's top left screw hole under the foam adhesive strip.
Before reinstalling your heat sink, make sure to properly clean the heat sink and CPU, and apply new thermal paste.

Schritt 34

Use the pointed end of a spudger to disconnect the right speaker's press connector from its socket.

Schritt 35

Use an opening pick to cut through the adhesive under the right speaker's cable and detach it from the frame.

Schritt 36

Use the flat end of a spudger to lift up the foam adhesive covering the right speaker's top right screw.

Schritt 37

Remove the two screws securing the right speaker:
One 2.2 mm T3 Torx screw
One 2.9 mm T6 Torx screw

Schritt 38

Use the flat end of a spudger to lift the cable side of the right speaker enough to grab it with your fingers.
Remove the right speaker from the frame.

Schritt 39

Take care not to puncture or bend the battery with your tweezers—a punctured or bent battery may leak dangerous chemicals or cause a thermal event.
If you are going to reuse this shield, try to avoid excessively bending it during removal.
Note that the display cable is oriented down for this shield removal procedure.
Insert one tine of a pair of pointed tweezers into a divot on a tab in the top right corner of the display cable shield.
Lift up the corner to detach it from the frame.

Schritt 40

Slide one tine of a pair of pointed tweezers under the right side of the top edge of the shield to detach it from the frame.
Repeat for the left side of the top edge.

Schritt 41

Slide one tine of a pair of pointed tweezers under the right side of the top edge of the shield.
Lift up the top edge to further detach it from the frame.
Repeat for the left side of the top edge.

Schritt 42

Slide one tine of a pair of pointed tweezers under the top side of the right edge of the shield.
Lift up to detach the top section of the shield from the frame.
Repeat for the top side of the left edge.

Schritt 43

Insert one tine of a pair of pointed tweezers under the right edge of the shield near the top right corner.
Lift up to further detach the shield from the frame.

Schritt 44

Repeat the previous step for the center of the right edge of the shield.

Schritt 45

Insert one tine of a pair of pointed tweezers under the left edge of the shield near the top left corner.
Lift up to further detach the shield from the frame.

Schritt 46

Repeat the previous step for the center of the left edge of the shield.

Schritt 47

Insert one tine of a pair of pointed tweezers under the right edge of the shield near the bottom right corner.
Lift up the right edge to detach the shield from the frame.

Schritt 48

Remove the display cable shield.
If the shield isn't completely detached from the frame, pry up additional areas around the edges of the shield.

Schritt 49

Use the flat end of a spudger to disconnect the display cable press connector from its socket.
To re-attach press connectors like this one, carefully align and press down on one side until it clicks into place, then repeat on the other side. Do not press down on the middle. If the connector is misaligned, the pins can bend, causing permanent damage.

Schritt 50

Remove the display cable from the Surface.

Schritt 51

Use the pointed end of a spudger to disconnect the left speaker's press connector from its socket.

Schritt 52

Use an opening pick to cut through the adhesive under the left speaker's cable and detach it from the frame.

Schritt 53

Use the flat end of a spudger to lift up the foam adhesive covering the left speaker's top left screw.

Schritt 54

Remove the three screws securing the left speaker:
One 2.2 mm T3 Torx screw
One 3.0 mm T3 Torx screw
One 2.9 mm T6 Torx screw

Schritt 55

Use the flat end of a spudger to lift the cable side of the left speaker enough to grab it with your fingers.
Remove the left speaker from the frame.

Schritt 56

Take care not to puncture or bend the battery with any tools while removing the SSD port—a punctured or bent battery may leak dangerous chemicals or cause a thermal event.
Insert one tine of a pair of pointed tweezers under the top left corner of the SSD port connector's shield (where the cable is oriented down).
Lift up the corner to detach it from the frame.

Schritt 57

Remove the SSD port connector's shield.
If the shield isn't completely detached from the frame, pry up additional areas on the edges of the shield.

Schritt 58

If you are going to reinstall this sticker during reassembly, try to keep it as intact as possible.
Use the pointed end of a spudger to lift up a corner of the black sticker covering the SSD port.

Schritt 59

Remove the SSD port sticker.

Schritt 60

Use the pointed end of a spudger to disconnect the SSD port's press connector from its socket.

Schritt 61

Use the flat end of a spudger to disconnect the SIM card reader's press connector from its socket.

Schritt 62

Use a T3 Torx screwdriver to remove the two 2.5 mm screws securing the SSD port.

Schritt 63

The SSD port cable is lightly adhered to the frame. If the adhesive is too difficult to cut through, continue to the next step for additional removal instructions.
Use an opening pick to cut through the adhesive under the SIM card reader socket.

Schritt 64

If the adhesive under the SIM card reader socket is too difficult to cut through, follow these steps to loosen the adhesive:
Apply a few drops of high-concentration (90% or higher) isopropyl alcohol under the SIM card reader socket to loosen the adhesive underneath.
Wait thirty seconds for the isopropyl alcohol to weaken the adhesive.
Use an opening pick to cut through the adhesive under the SIM card reader socket.

Schritt 65

Remove the SSD port from the frame.
If there's any alcohol solution remaining in the Surface, carefully wipe it off with a lint-free cloth or allow it to air dry before installing your SSD port.

Schritt 66

Remove the foam adhesive strip from the Surface.

Schritt 67

Insert one tine of a pair of pointed tweezers under one corner of the shield covering the front camera connector.
Lift up the corner to detach it from the frame.
If you are going to reuse this shield, try to avoid excessively bending it during removal.

Schritt 68

Repeat the previous step for the other three corners of the shield.

Schritt 69

Slide one tine of a pair of pointed tweezers under the left edge of the shield to further detach it from the frame.
Repeat this for the right edge of the shield.

Schritt 70

Slide one tine of a pair of pointed tweezers under the bottom left edge of the shield to further detach it from the frame.
Repeat for the bottom right edge.

Schritt 71

Insert one tine of a pair of pointed tweezers into the divot in one of the tabs on the bottom edge of the shield.
You could also insert the tine under the bottom edge of the shield.
Lift up the bottom edge to detach it from the frame.

Schritt 72

Use a pair of tweezers to lift up the bottom edge of the shield so that it is at a 30° angle with the frame.
This will detach the top edge of the shield from the frame.
Remove the front camera shield from the frame.

Schritt 73

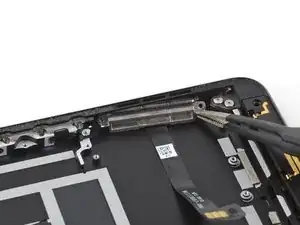

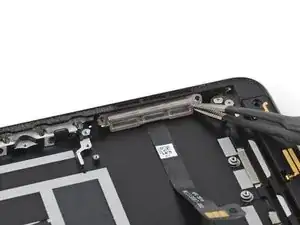

Insert one tine of a pair of pointed tweezers under one corner of the shield covering the rear camera connector.
Lift up the corner to detach it from the frame.
If you are going to reuse this shield, try to avoid excessively bending it during removal.

Schritt 74

Repeat the previous step for the remaining three corners of the shield.

Schritt 75

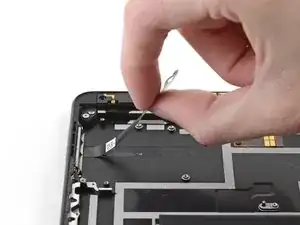

Use a pair of pointed tweezers to lift up the left side of the shield.

Schritt 76

Slide one tine of a pair of pointed tweezers under the bottom right edge of the shield to fully detach it from the frame.

Schritt 77

Remove the shield covering the rear camera connector.
If the shield isn't completely detached from the frame, pry up additional areas on the edges of the shield.

Schritt 78

Use a pair of tweezers to remove the foam strip adhered to the front camera, Windows Hello face camera, and left microphone cables.

Schritt 79

Use a T6 Torx screwdriver to remove the two 2.8 mm screws securing the Surface Connect port.

Schritt 80

The Surface Connect port connector can be disconnected before moving the port, but the connector is difficult to reconnect while the port is fully seated. During reassembly, it is easier to reconnect the connector before seating the port into its recess.
Use the flat end of a spudger to pry up the left screw tab and dislodge the Surface Connect port from the frame.
You only need to lift the port high enough to insert the pointed end of a spudger into the screw tab.

Schritt 81

Insert the pointed end of a spudger into the left screw tab.
Push the Surface Connect port toward its connector to detach its magnets from the frame.
You only need to push the port enough to detach it from the frame and grab it with your fingers. Don't bend the cable more than necessary.

Schritt 82

Hold the edges of the Surface Connect port with your fingers.
Pull the port away from the edge of the frame and place it on top of the edge.

Schritt 83

Insert the flat end of a spudger under the foam on top of the Surface Connect port's connector.
Lift up on the foam to open the connector's locking tab.

Schritt 84

Place the flat end of a spudger under the left edge of the connector's locking tab.
While holding the Surface Connect port with your fingers, push the connector out of its socket in the direction of the cable.
If this doesn't fully disconnect the connector, repeat this step for the right edge of the locking tab. Alternate between the left and right edge as needed.

Schritt 85

Remove the Surface Connect port from the frame.
During reassembly, make sure to fully insert the Surface Connect port connector into its socket. The internal metal edge of the connector should be directly adjacent to the metal edge of the socket.

Schritt 86

Use a T3 Torx screwdriver to remove the three 2.9 mm screws securing the first USB-C port shield.

Schritt 87

If you are going to reuse the USB-C port shields, try to avoid excessively bending them during removal.
Insert one tine of a pair of pointed tweezers into the gap in the first USB-C port shield next to the screw hole closest to the left speaker.
Lift up the shield to detach it from the frame.

Schritt 88

Remove the first USB-C port shield from the frame.
If the shield isn't completely detached from the frame, pry up additional areas on the edges of the shield.

Schritt 89

Don't pry up the USB-C port shield near the battery—a punctured or bent battery may leak dangerous chemicals or cause a thermal event.
Insert one tine of a pair of pointed tweezers under one of the shield's corners closest to the left speaker recess.
Slide the tine along the edge of the shield to detach the corner from the frame.

Schritt 90

Note that the second USB-C port shield may fling off of the frame when you detach it. You can place a finger on the shield to prevent it from flinging.
Repeat the previous step for the other corner of the shield closest to the left speaker recess.
Continue prying up the edge of the shield closest to the left speaker recess until the shield detaches from the frame.
Remove the shield from the frame.
If the shield isn't completely detached from the frame, pry up additional areas on the edges of the shield.

Schritt 91

Use a T3 Torx screwdriver to remove the two 2 mm screws securing the USB-C port press connector.

Schritt 92

Insert the flat end of a spudger under the long edge of the USB-C port press connector.
Rotate the flat end of the spudger to disconnect the press connector from its socket.
To re-attach press connectors like this one, carefully align and press down on one side until it clicks into place, then repeat on the other side. Do not press down on the middle. If the connector is misaligned, the pins can bend, causing permanent damage.

Schritt 93

Use a T3 Torx screwdriver to remove the two 2.7 mm screws securing the USB-C port.

Schritt 94

Use a pair of tweezers to grip the USB-C port screw hole tab closest to the left speaker.
Lift up the press connector edge of the USB-C ports to detach it from the frame.
Remove the USB-C ports from the frame.

Schritt 95

Use the pointed end of a spudger to disconnect the right microphone press connector from its socket.
Disconnect the rear camera.

Schritt 96

Use the pointed end of a spudger to disconnect the front camera, the Windows Hello face camera, and the left microphone.

Schritt 97

There are two shields on the motherboard covering screws that secure it to the frame:
One square shield to the right of the USB-C port.
One rectangular shield to the right of the camera connector sockets.

Schritt 98

Avoid prying near the battery while removing the shields—a punctured or bent battery may leak dangerous chemicals or cause a thermal event.
Note that the shields may fling off of the frame when you detach them. You can place a finger on the shield to prevent it from flinging.
Insert one tine of a pair of pointed tweezers under a corner of the square shield.
Lift up the corner to detach it from the frame.
Continue to pry up additional areas around the edges of the shield until it detaches from the frame.
Remove the square shield.
If you are going to reuse these shields, try to avoid excessively bending them during removal.

Schritt 99

Repeat the previous step to remove the rectangular shield.

Schritt 100

Use a T3 Torx screwdriver to remove the eight 5.5 mm screws securing the front-facing sensor bar.

Schritt 101

Insert the pointed end of a spudger into the gap on the right side of the sensor bar between the rightmost screw hole and the adjacent screw hole.
Lift up the right side of the sensor bar to dislodge it from the frame.
You only need to lift the sensor bar so that it is loose in the frame. Don't try to remove the front sensor bar—it is still attached to the Surface by a cable that connects under the motherboard.

Schritt 102

Repeat the previous step for the gap in the sensor bar between the second and third screw hole from the left.
This gap is where the sensor bar's cable is located.

Schritt 103

The motherboard has spring connectors that fit under the front-facing sensor bar. Lifting the sensor bar makes it easier to remove and replace the motherboard.
Lift the sensor bar about 30° out of its recess.
Don't push the sensor bar past 90° and don't rotate it horizontally to avoid damaging the cable connecting it to the motherboard.

Schritt 104

Use a T3 Torx screwdriver to remove the six 2 mm screws securing the motherboard.

Schritt 105

Lift the bottom edge of the motherboard about a half-centimeter above the frame.
You only need to lift the motherboard high enough for it to clear the battery as you slide it out.
Hold the motherboard on the left and right edge.

Schritt 106

Pull the motherboard down toward the bottom edge of the Surface to remove it from the frame.

Schritt 107

The volume button cable is lightly adhered to the frame.

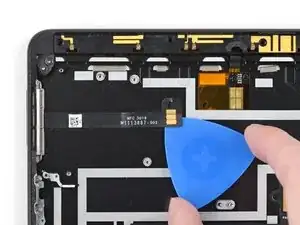

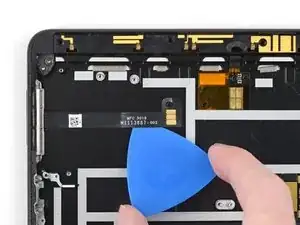

Use an opening pick to cut through the adhesive on the right side of the bottom edge of the volume button cable.

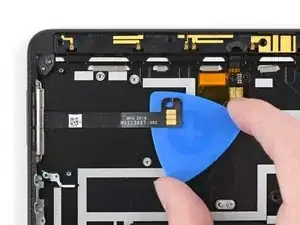

Slide the opening pick under the right side of the volume button cable to further detach it from the frame.

Schritt 108

Apply a few drops of high-concentration (90% or higher) isopropyl alcohol under the volume button cable.
Wait thirty seconds for the isopropyl alcohol to weaken the adhesive.

Schritt 109

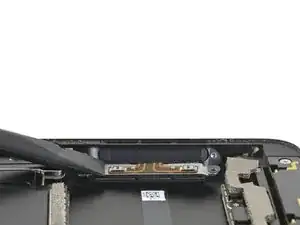

Lift the volume button cable away from the frame.
If the volume button cable doesn't easily lift away, apply a few more drops of isopropyl alcohol before trying again.

Schritt 110

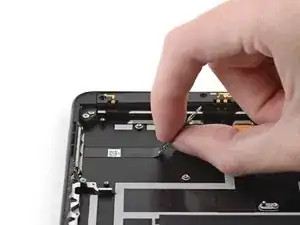

Use a T3 screwdriver to remove the two 2.4 mm screws securing the volume button bracket.

Schritt 111

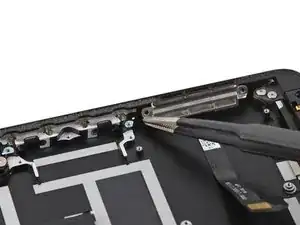

Use a pair of blunt tweezers to pull the right side of the volume button bracket straight out of the frame.

Schritt 112

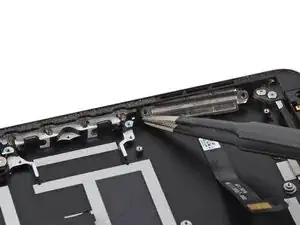

Repeat the previous step for the left side of the volume button bracket.

Schritt 113

The volume button cable is adhered to the volume button bracket.

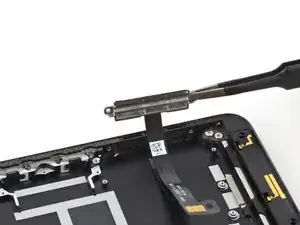

Remove the volume button bracket from the frame.

Schritt 114

If the volume button cover falls out, make sure it is oriented correctly when you replace it. The long edge of the cover with the shorter tab should be facing up.

Schritt 115

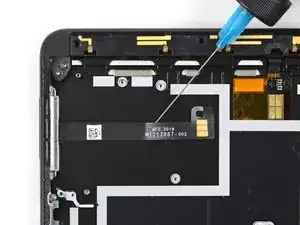

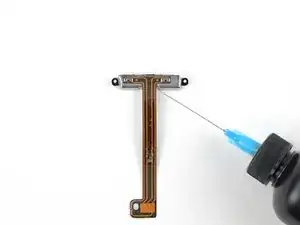

Apply a few drops of high-concentration (90% or higher) isopropyl alcohol under the volume button cable.
Wait thirty seconds for the isopropyl alcohol to weaken the adhesive.

Schritt 116

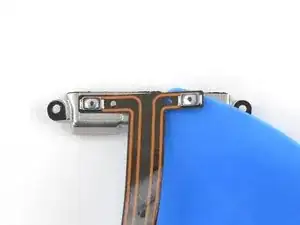

Use an opening pick to cut through the adhesive between the two buttons under the volume button cable.
Slide the opening pick right to detach the right button from the bracket.

Schritt 117

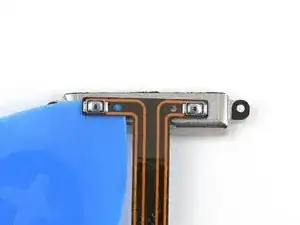

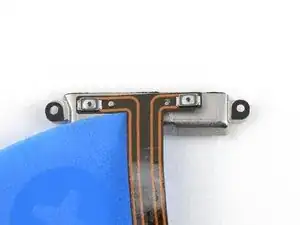

Slide the opening pick left to cut through the adhesive under the left button and detach the cable from the bracket.

Schritt 118

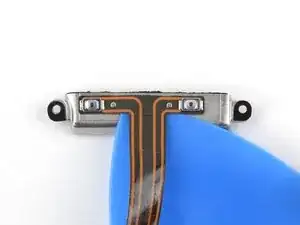

Only the volume button cable remains.
If there's any alcohol solution remaining in the Surface or on the bracket, carefully wipe it off with a lint-free cloth or allow it to air dry before installing your volume button cable.

Abschluss

Compare your new replacement part to the original part—you may need to transfer remaining components or remove adhesive backings from the new part before installing.

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Microsoft Surface Pro X Answers community for help.

Tinte & Feder

Kyle Smith

Mitglied seit: 01/02/21

35834 Reputation

Microsoft Surface Pro X Volume Button Cable Replacement

Einleitung

Werkzeuge

Ersatzteile

0 Kommentare
