Milwaukee Hex Impact Driver 2753-20 Trigger Replacement

Geschrieben von: Alex Larson
  • Kommentare: 0
Milwaukee Hex Impact Driver 2753-20 Trigger Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

15 - 20 Minuten

Einleitung

The removal of the trigger is relatively challenging. It is the central part of the tool and has some wiring attached. Practice extreme caution and make sure the battery is removed.

  1. AbDokgBCVsJ2Yqkd
    AbDokgBCVsJ2Yqkd
    Z5NZaHjGOXFGO4Dg

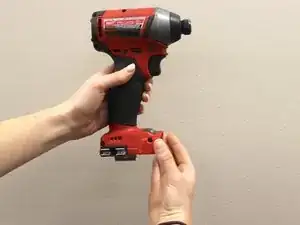

    • While pinching the red locking buttons, pull the battery away from the front of the drill until the battery is fully removed.

    • The battery is missing from this device so its removal is being mimed.

  2. EdCPf42TiLwRyQmq

    • Using the Torx T10 screwdriver, remove the six 17 mm screws on the outside of the handle.

    • Remove the two 40 mm Torx T10 screws near the bottom of the cover.

  3. 5d3VfiA2OjuUFktC
    5d3VfiA2OjuUFktC
    BKLQN6pdySQS51JR

    • Carefully remove the cover.

    • If there is buildup from sawdust or sediment it might be a little difficult to take apart.

  4. KTUvfOUTlEluLld1
    KTUvfOUTlEluLld1
    YM46uEhYFCJvZQTM

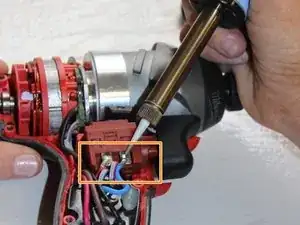

    • Lift the trigger assembly from the device. It is connected to the circuit board by wires.

    • Carefully desolder the wires off of the trigger assembly using a soldering iron on medium heat.

    • Refer to this guide for proper desoldering technique.

  5. vl1b3wavqnmPMUSb

    • Remove the trigger assembly from the device.

    • Replace old trigger assembly with replacement part no. 14-20-0013.

Abschluss

To reassemble your device, follow these instructions in reverse order.
