Milwaukee M18 2606-20 Circuit Board Replacement

Geschrieben von: Markus Eldridge
  • Kommentare: 4
Milwaukee M18 2606-20 Circuit Board Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

30 - 50 Minuten

Einleitung

If you need to replace the circuit board on your Milwaukee M18 2606-20 cordless power drill (replaced the battery but still no power) see this guide on how to remove it. The circuit board is the brain of the drill and controls most components in the drill. Some reasons the circuit board may need replacement are the white light is not turning on or the drill is turning on and the battery has been replaced. See our How to Solder and Desolder Connections Guide for help with the final steps of the guide.

  1. VexbrJFecWCWiJMK
    VexbrJFecWCWiJMK
    YNGn4kQfVKIgEjeu

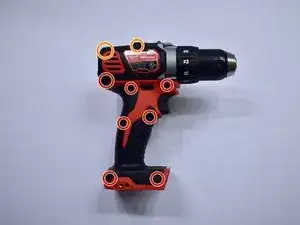

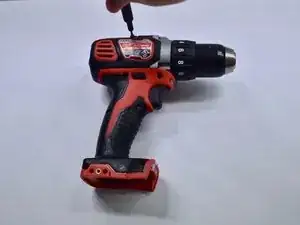

    • Remove the seven 18 mm screws, using the T3 Torx Screwdriver, from the handle area of the case.

    • Remove the two 21 mm screws, using the T3 Torx Screwdriver, from the top of the case.

  2. oXvHMIl4FkGBqnVQ
    oXvHMIl4FkGBqnVQ
    g2xYBLE6YBpy25Fg
    xaN11T66xTKvkrkZ

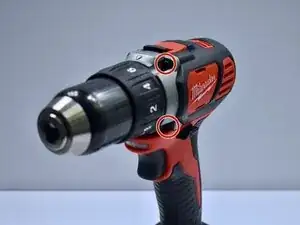

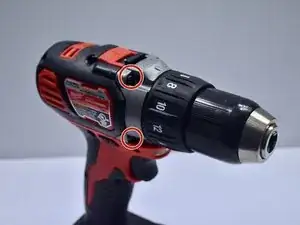

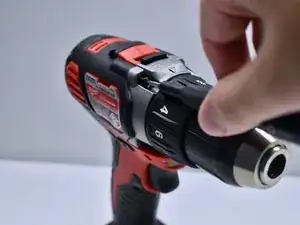

    • Remove the four 20 mm screws, using the T3 Torx Screwdriver, from the front of the case.

  3. Vh3UKqAZh6bJqGjc
    Vh3UKqAZh6bJqGjc
    BmENRr14nWIGxMtk

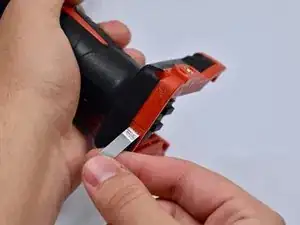

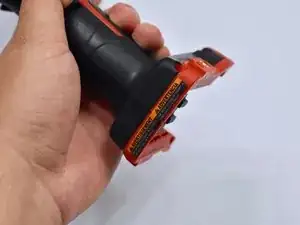

    • Peel back the sticker at the bottom of the drill handle.

  4. VDgXjfkIi1DIROk2
    VDgXjfkIi1DIROk2
    ZB6KgYMopnl36Zin

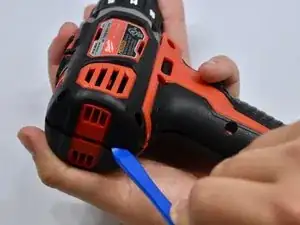

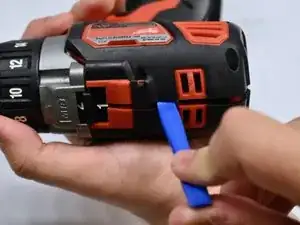

    • Open the case by sliding the opening tool all the way around the case to pry it apart.

  5. R6NULYihVTeOi1gA
    R6NULYihVTeOi1gA
    FyY4JoBZhnKSUGrM
    mGnZrT2Fe6geuJPM

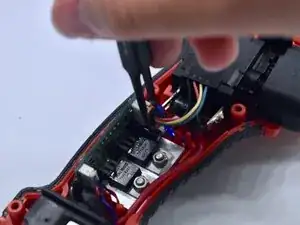

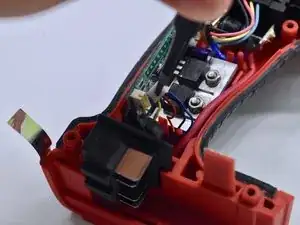

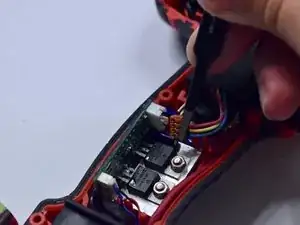

    • Remove the 4-pin and 5-pin connector, using the tweezers, from the circuit board.

    Do we know what the part on the circuit board that goes bad is, only asking cause replacing the 2 mosfets would be fairly easy

    GrimmDawg_SG -

    What is the part number of the circuit card?

    dan daniels -

  6. xHZmLofcXbQrxUUQ
    xHZmLofcXbQrxUUQ
    UNADCBxQn4oZtspf
    saBFnCohNZxPZrqu

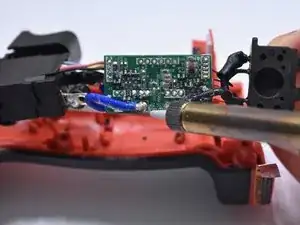

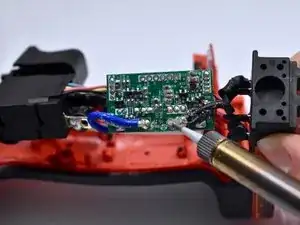

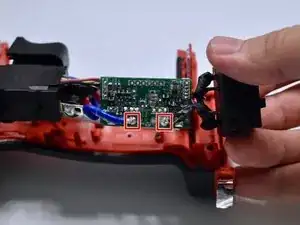

    • Desolder all of the wires connected to the circuit board.

    • When you take the circuitboard out of the case, watch for a spring that is in the back of the battery contacts as it can fly out.

    Remember to use squares, rather than circles, for the markup.

    Alex Watkins -

Abschluss

To reassemble your device, follow these instructions in reverse order.
