Minolta Dimage Xt Flash Capacitor Replacement

Geschrieben von: Qqq
  • Kommentare: 1
Minolta Dimage Xt Flash Capacitor Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

25 Minuten

Einleitung

In the event that the flash is not working properly due to internal issues and not settings, it is possible to replace the capacitor to restore function to the flash.

  1. 4UkpgEgGYK6KWRZe
    4UkpgEgGYK6KWRZe
    BXyi2T5yKDhWIlNn
    i5vcFhkG6yvMIiRj

    • Locate and remove the silver screws on each side of the camera.

    • Use the Phillips #00 Screwdriver to unscrew all 2.0mm (4 instances) and 4.0mm (2 instances) screws.

  2. VQ5WTK5UOTLBajxC
    VQ5WTK5UOTLBajxC
    K2uZZmetQ6ZTiP3Q
    LoWdMMKZlOS1iByZ

    • Then, carefully pry apart the front and back outer casing away from the internal components.

    • Be aware of the ribbon wire that will disconnect when the casing is detached.

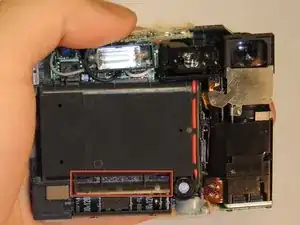

  3. F1qqTcbEaRtaMxjg
    F1qqTcbEaRtaMxjg
    Jf5Qq6HYNNa1ns5U

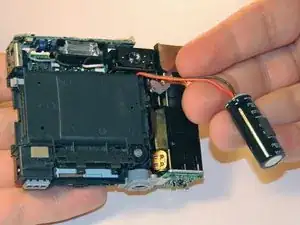

    • Caution: Touching the capacitor leads may cause serious injury. Use a capacitor discharge probe to safely rid the capacitors of dangerous charges.

    • On the front side of the camera, locate the flash battery holder.

    • Lift the housing and remove the battery.

    • After removing the battery, clip the wires and solder the replacement battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Qqq

Mitglied seit: 11/03/13

19 Reputation

Ein Kommentar

Its a cap not a battery :D

Eigirdas Gedgaudas -
