Motorola Droid RAZR M USB Charging Port Replacement

Geschrieben von: Nick Boring
  • Kommentare: 2
Motorola Droid RAZR M USB Charging Port Replacement

Schwierigkeitsgrad

Difficult

Schritte

14

Zeitaufwand

25 - 30 Minuten

Einleitung

In order to complete this guide you must first know how to solder. If you do not know how to do this simply look a tutorial on the internet.

Once you have completed the Motherboard and Front Assembly prerequisite guides you will have the motherboard in hand. The USB charging port is located at the bottom left of the board, the top being where the cameras are located. Now apply your desoldering skills on the four solder joint and replace the USB charging port.

  1. 5qZEWVhLYYGrQwYu
    5qZEWVhLYYGrQwYu
    KC4Yb1IYoXQIVBTZ
    uITgemXdFG5ETn4h

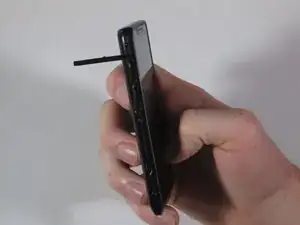

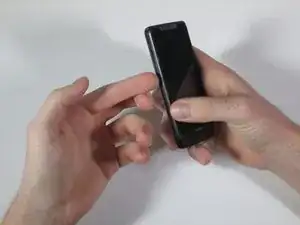

    • Open the small latch on the left side of the device by lifting gently with your finger, exposing the SIM card and microSD card slots.

    • If either of these cards are present, remove them to prevent damaging them while taking apart the phone. Our device does not have either.

    • Close the latch once the two cards are removed.

  2. xOuheA3ZR6WvSC4W
    xOuheA3ZR6WvSC4W
    qwNuorUGfrTCStgr
    ObuEVdklpyWIBRvQ

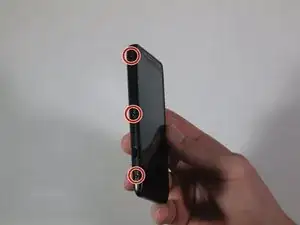

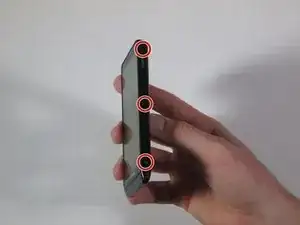

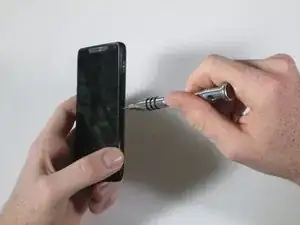

    • Remove the six 4mm T3 Torx screws. There are 3 on each side of the device.

  3. LDYC4ZA6oSCVYPj3
    LDYC4ZA6oSCVYPj3
    15UCgTcysRGdwFnA
    cXtUFveGygFyy6n1

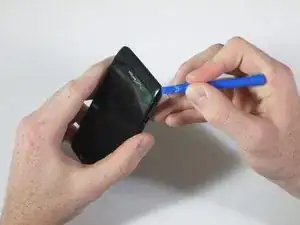

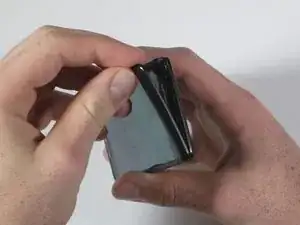

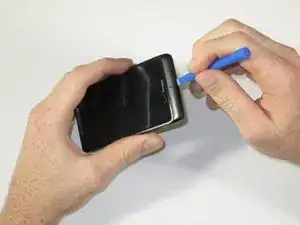

    • Run the plastic opening tool under the bottom edge of the phone to detach the small plastic cover below the Verizon logo.

    • It will take some force to remove this piece. Work around the bottom corners to unlatch the two hooks holding the piece in place.

    • The small plastic hooks can break during removal. Be careful that you don't damage them, but it will take some force to get them undone.

    • Once the plastic cover is detached, pull the piece away with your fingers.

    Apply low heat in area as well, it makes the removal of this piece easier as it loosens the adhesive holding the cover.

    Anthony Merino -

  4. ihmwECnylxtnL4EJ
    ihmwECnylxtnL4EJ
    BxWDEXHlbVC25VhE

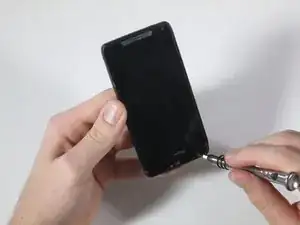

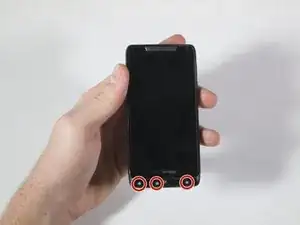

    • Remove the three T4 Torx screws. There are three at the bottom of the device.

  5. IuYtkICHvnAFsCvH
    IuYtkICHvnAFsCvH
    K1vP24UebjBBilTU
    Mqu5Mm2EKf3A5Qrm

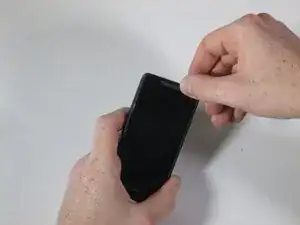

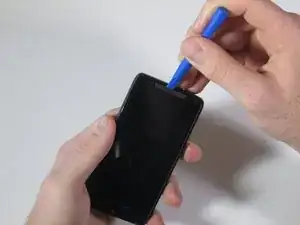

    • Using the plastic opening tool, peel away the silver Motorola plate at the top of the phone. There is a fair amount of adhesive underneath, so you may have to pry it from a few different angles.

    • As soon as you can get your finger underneath, pull away the silver plate.

  6. nGXVEPdEVgkukQe4
    nGXVEPdEVgkukQe4
    qRI42gmBTYRRIFAX

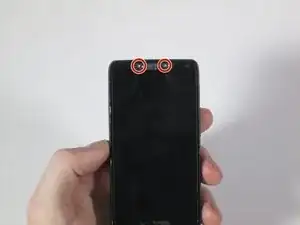

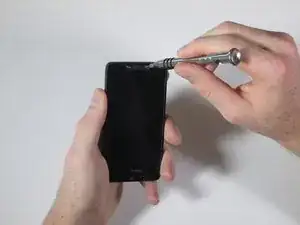

    • Remove the two 7mm T4 Torx screws at the top of the device.

  7. PPvoLxF3RXGWsXnv
    PPvoLxF3RXGWsXnv
    CXkRhPWolEgxGLoy
    xWaHRWBF3JlSTHSM

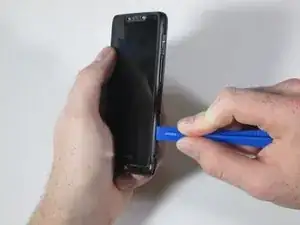

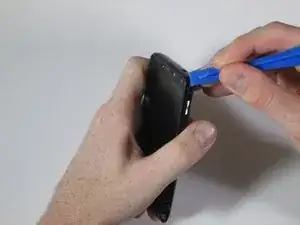

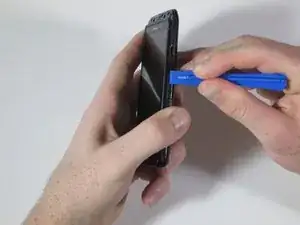

    • When you detach the front from the back, don't pull the two pieces entirely apart. There is a flat orange wire that connects the two pieces that will be disconnected in the next step.

    • Snap apart the two internal clips located on the top corners of the device, and the two clips in the bottom corners.

    • Run the plastic opening tool around the edge of the entire device to pry apart the front of the phone from the back.

    • There is a small black plastic piece located at the bottom of the front assembly. Do not worry if the strip falls off; just simply snap it back on and proceed.

  8. p3T3PCUcCgCLOAGR
    p3T3PCUcCgCLOAGR
    m1RRJWJnSQaHMh4I
    FQMiLMRi2151vjtd

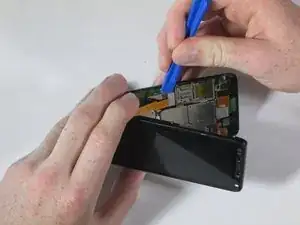

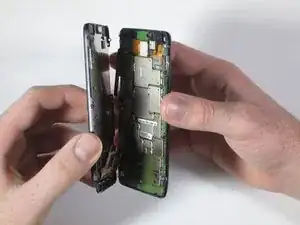

    • Like a clamshell, slowly open the device from the top. Open the remainder of the device slowly while being mindful of the flat orange wire that connects the motherboard to the front assembly.

    • Undo the snap connection in the lower left corner by inserting the plastic opening tool under the end of the orange wire connected to the motherboard. Lift gently.

    • Once the snap connection is undone, pull apart the front assembly from the rest of the phone.

  9. nXtVVU2UcR55GPZP
    nXtVVU2UcR55GPZP
    MDnvpGXlKvN2XYPc

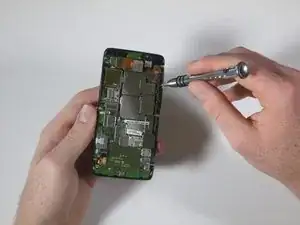

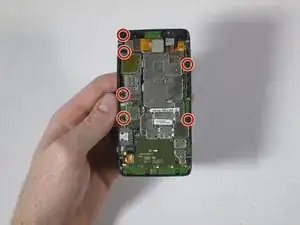

    • Remove the six 4mm T5 Torx screws located along the outer edge of the motherboard.

  10. vOLjlvBML5dYhTCe
    vOLjlvBML5dYhTCe
    d4knpcG3etOT2Se2

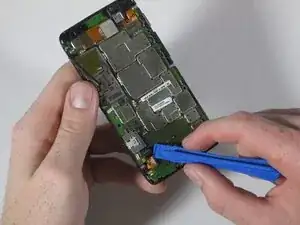

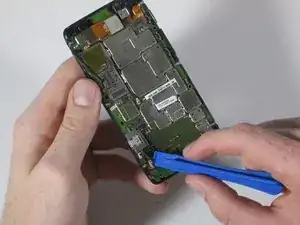

    • Disconnect the snap connection in the lower left corner by prying underneath using the plastic opening tool.

  11. uPwEafiHwmlyPexD
    uPwEafiHwmlyPexD
    eUGCQQ2sERQYtvJu

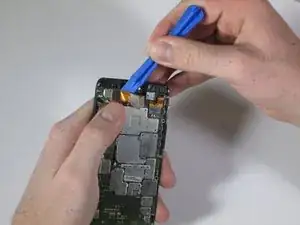

    • Disconnect the snap connection in the upper left corner by prying underneath using the plastic opening tool.

    • As you undo the snap connection, pull the rear facing camera off completely. It will slide out of its slot in the motherboard.

  12. GvWds1cYmSYVZkvr
    GvWds1cYmSYVZkvr
    dw4CVvXUlO2WnHqj

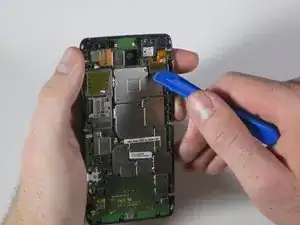

    • Disconnect the snap connection in the upper right corner by prying underneath using the plastic opening tool.

  13. JKdwh1ZdL32NtpTg
    JKdwh1ZdL32NtpTg
    GPBnKGKodXTGOFPo
    a3dBRSsd3kGTAGuy

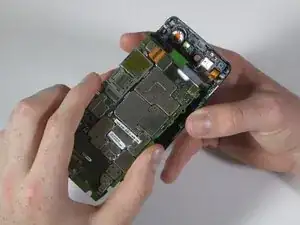

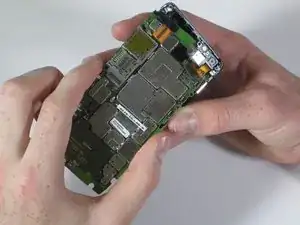

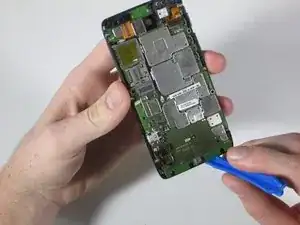

    • By inserting the plastic opening tool between the motherboard and rear casing, lift the bottom of the motherboard from the rear casing.

    • Use your fingers to gently pull the motherboard down and out of the rear casing.

  14. QYV2wTDMPfuTEKZi
    QYV2wTDMPfuTEKZi
    g2AxJj5SqoPpCtdu
    ZyHKeYlCkFCXHsxB

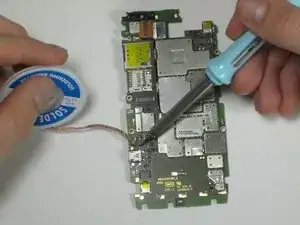

    • The USB charging port is located on the bottom left of the motherboard. This is indicated with a red box in the first image.

    • If you need help with soldering refer to this soldering guide.

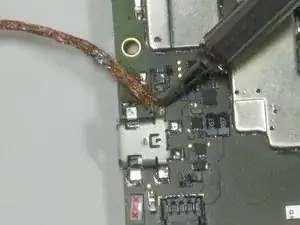

    • Place the end of the soldering iron onto one of the solder joints. Place the soldering wick onto the joint as it begins to liquify, the solder will run up the solder wick and off of the USB charging port.

    • Repeat this for each joint.

Abschluss

To reassemble your device, follow these instructions in reverse order.
